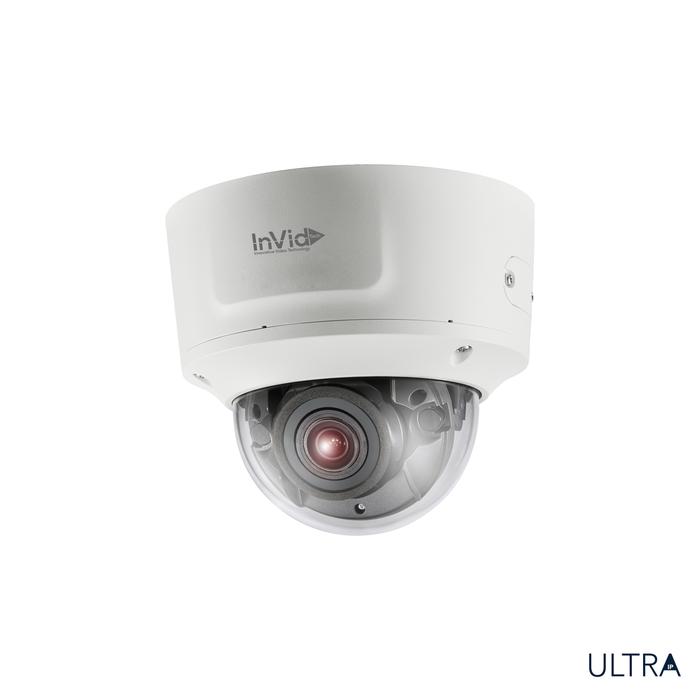

Camera Canada Invidtech ULT-P6DRXIRM2812: 6 Megapixel Motorized Dome, Varifocal Lens

Camera

ULT-P6DRXIRM2812

Image Sensor

1/2.9” Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON),0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120dB

3‐Axis Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Focal Length

2.8 to 12 mm

Aperture

F1.6

Focus

Auto

FOV

Horizontal field of view: 88° to 27°, Vertical field of view: 56° to 18°, Diagonal field of view: 110° to 33°

Lens Mount

Φ14

IR

IR Range

Up to 98 ft.

Wavelength

850nm

Compression Standard

Video Compression

Main stream: H.265/ H.264, Sub‐stream: H.265/H.264/MJPEG, Third stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32‐192Kbps(MP2L2)

Smart Feature-Set

Behavior Analysis

Line crossing detection, intrusion detection, unattended baggage detection, object removal detection

Face Detection

Yes

Region of Interest

Support 1 fixed region for main stream and sub‐stream


Max. Resolution

3072 × 2048

Main Stream

50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub‐Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288); 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function

One‐key reset, anti‐flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users, 3 levels: Administrator, Operator and User

Client

iVMS‐4200, Hik‐Connect, iVMS‐5200

Web Browser

IE8+, Chrome 31.0‐44, Firefox 30.0‐51, Safari 8.0+

Interface

Audio

1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound

Alarm

1 input, 1 output

Communication Interface

1 RJ45 10M/100M self‐adaptive Ethernet port

Video Output

1Vp‐p composite output (75 Ω/BNC) (For adjustment only)

On‐board storage

Built‐in Micro SD/SDHC/SDXC slot, up to 128 GB

SVC

H.264 and H.265 encoding support

Reset Button

Yes

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8kHz/16kHz/32kHz/44.1kHZ/48kHz

General

Operating Conditions

‐22 °F to +140 °F  (-30 °C to +60 °C), Humidity 95% or less (non‐condensing)

Power Supply

12 VDC ± 25%, PoE (802.3af) Terminal block for DC input

Power Consumption and

Current

12 VDC, 0.8A, max. 10W PoE (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12W

Protection Level

IP67, IK10

Material

Metal

Dimensions

Φ153.4 × 133.1 mm (Φ6” × 5.2”)

Weight

Camera: 1287 g (2.8 lb.)
