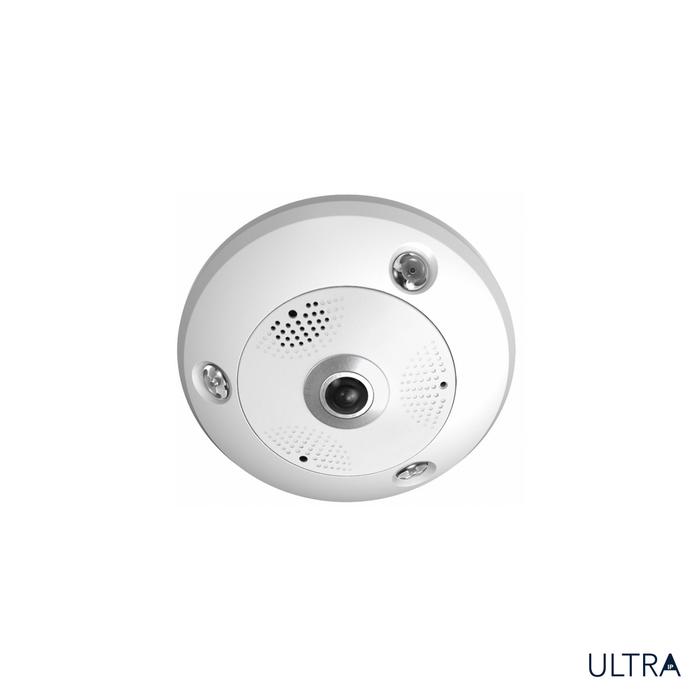

Camera Canada Invidtech ULT-P6PAN: 6 Megapixel Panoramic Camera, Fixed Lens

6 Megapixel IP Plug & Play, Outdoor Panoramic Camera, 1.27mm Fish Eye Lens, 30′ IR Range, Built-in Mic, Audio Input/Output, SD Card Slot, PoE/DC12V

Danh mục: Camera Invidtech Canada

Mô tả
Sản phẩm liên quan

6 Megapixel IP Plug & Play, Outdoor Panoramic Camera, 1.27mm Fish Eye Lens, 30′ IR Range, Built-in Mic, Audio Input/Output, SD Card Slot, PoE/DC12V

Features

6 Megapixel (3072×2048) Max Resolution
Fixed Lens
Up to 5 Channel Support: 360 Fisheye/Panoramic/ePTZ
1.27mm Fish Eye Lens
H.264/MJPEG
True Day/Night
30’ EXIR Range
Audio Input/Output: Built-In Mic
IP66 Weather Resistant
IK10 Vandal Resistant
12VDC/PoE Operation
ONVIF
SD/SDXC Card slot up to 64 GB
Free iOS & Android Apps for Smart Phones & Tablets
Free Central Management Software (CMS) to manage multiple units & sites from a single platform
Free Mac Client

Model Number	ULT-P6PAN
Image Sensor	1/1.8” progressive scan CMOS
Min. illumination	0.05 lux @ (F1.2, AGC ON), 0.3 lux @ (F2.8, AGC ON ), 0 lux with IR
Shutter Speed	1/25 (1/30)s ~ 1/100,000s
Lens	1.27mm @F2.8, angle of view: 360°
Lens mount	M12
Day & Night	True Day/Night with ICR
Video Compression	H.264/MJPEG
H.264 Type	Baseline Profile / Main Profile / High Profile
Video Bit Rate	32 Kbps – 16 Mbps
Max. Resolution	3072 x 2048
Frame Rate	High-frame Mode: support 60Hz: 1 x fisheye (3072 x 2048, 25fps) or (2048 x 2048, 30fps) or 4 x PTZ at (1024 x 768, 30fps) Multi-channel Mode: support (1024 x 768, 12.5fps) 60Hz: 1 x fisheye (1280 x 1280, 15fps) and 1 x panoramic (2048 x 1536, 15fps) and 3 x PTZ (1024 x 768, 15fps)
Number of Streams	High Frame Rate Mode: 1 or 4 Multi-Channel: up to 5 (No sub-streams)
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR
Image Setting	Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance
High Light Compensation	Support
Day/night Switch	Auto / Manual / Scheduled / Alarm trigger
Network Storage	NAS
Alarm trigger	Motion detection, dynamic analysis, tamper alarm, network disconnect, IP address conflict, storage full, storage error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security	User Authentication, Watermark, IP address filtering, Anonymous access
Standard	ONVIF, PSIA, CGI
Communication Interface	1 RJ45 10M/100M/1000M Ethernet port 1 RS-485 interface (-S)
On-board storage	Built-in Micro SD/SDXC slot, up to 64 GB
Operating Conditions	-30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing)
Power Supply	PoE /DC12V±10%
Power Consumption	Max. 11W
IR range	Max. 30ft
Audio	In/Out, Built-in Mic
Environmental	IP66 Weather Resistant
Protection	IK10
Dimensions	164 x 152.8 x 43.8mm (6.46” x 6.02” x 1.72”)
Weight	3.08 lb
