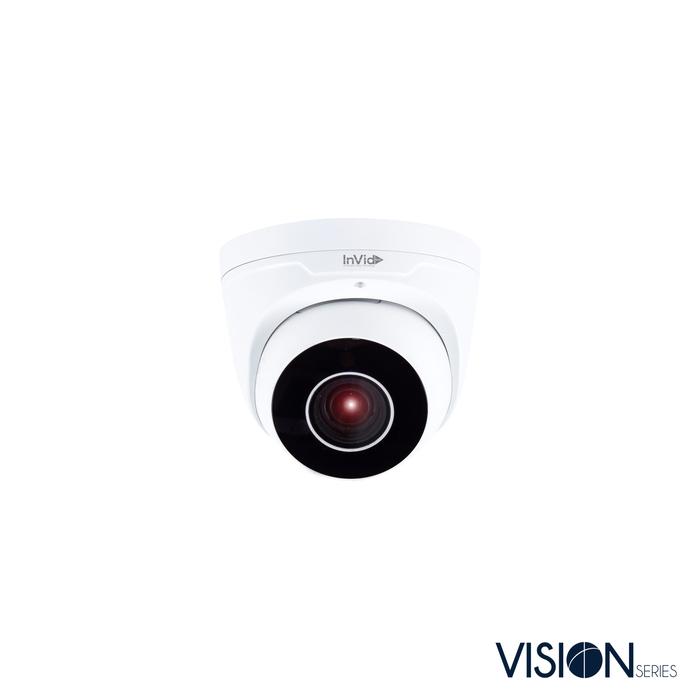

Camera Canada Invidtech VIS-P4TXIRA2812: 4 Megapixel Turret, Motorized A/F Lens

4 Megapixel IP Plug & Play, Outdoor Turret, 2.8-12mm Auto-Focus Motorized, 98’ EXIR Range, Built-in Mic, SD Card Slot, PoE/DC12V

Danh mục: Camera Invidtech Canada

Mô tả
Sản phẩm liên quan

4 Megapixel IP Plug & Play, Outdoor Turret, 2.8-12mm Auto-Focus Motorized, 98’ EXIR Range, Built-in Mic, SD Card Slot, PoE/DC12V

Features

4 Megapixel (2592 x 1520) Resolution
Motorized Auto-Focus 2.8-12mm Lens
Ultra H.265/H.265/H.264/MJPEG Compression
True Day/Night
True WDR 120dB
Smart Analytics
Cloud Upgradable
Smart EXIR Range up to 98’
SD Card Local Storage, 128GB
Audio Input: Built-in Mic
IP67 Weather Resistant
12VDC/PoE Operation
ONVIF
Free iOS & Android Apps for Smart Phones & Tablets
Free Central Management Software (CMS) to manage multiple units & sites from a single platform
Free MAC client software available to manage your system from your Apple computer

Camera	VIS-P4TXIRA2812
Sensor	1/3″, progressive scan, 4.0 megapixel, CMOS
Lens	2.8~12 mm, AF automatic focusing and motorized zoom lens
DORI Distance	2.8mm: 206’ (Detect), 82’ (Observe), 41’ (Recognize), 20’ (Identify
DORI Distance	12mm: 885’ (Detect), 354’ (Observe), 177’ (Recognize), 88’ (Identify)
Angle of view(H)	91.0°~27°
Angle of View (V)	54.4°~13.7°
Angle of View (O)	118.3°~33.2°
Adjustment angle	Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360°
Shutter	Auto/Manual, 1/6~1/100000 s
Minimum Illumination	Colour: 0.005 Lux (F1.4, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:4MP (2592×1520): Max. 20 fps，4MP (2560×1440): Max. 25 fps，3MP (2048×1520): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1(720×576) : Max. 30fps
HLC	Supported
BLC	Supported
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection, Audio detection
Intelligent Identification	Defocus, Scene Change
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8 KHZ
Storage
Edge Storage	Micro SD, up to 128 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration	ONVIF(Profile S, Profile G), API
Interface
Built-in Mic	Supported
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
Power	Power consumption: Max 8.16W
Dimensions (Ø x H)	Φ129 x 110 mm (Ø5.08” x 4.3”)
Weight	0.67 kg (1.48lb)
Working Environment	-40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress Protection	IP67
Reset Button	Supported
