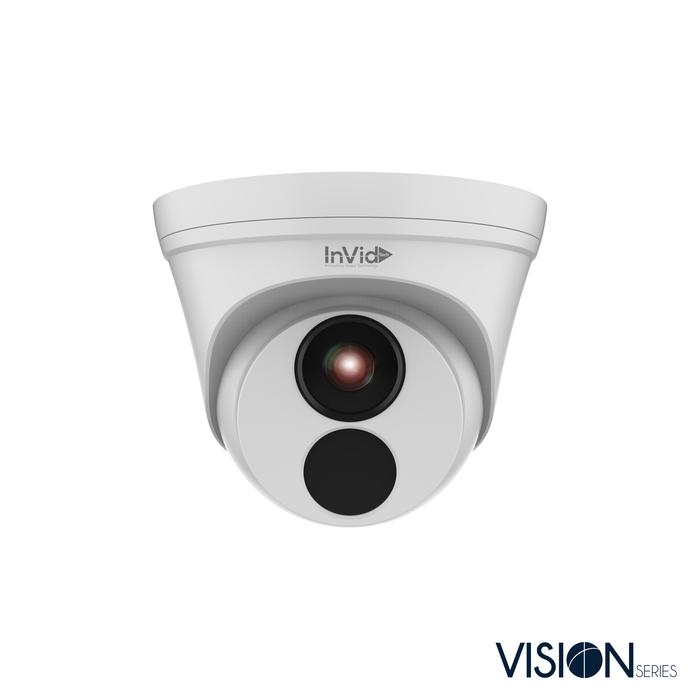

Camera Canada Invidtech VIS-P4TXIRLC: 4 Megapixel Turret, Fixed Lens

4 Megapixel IP Plug & Play, Outdoor Turret, 2.8mm Fixed Lens, 98′ EXIR Range, PoE/DC12V

4 Megapixel IP Plug & Play, Outdoor Turret, 2.8mm Fixed Lens, 98′ EXIR Range, PoE/DC12V

Features

4 Megapixel (2592 x 1520) Resolution
Fixed Lens
Ultra H.265/H.265/H.264/MJPEG Compression
True Day/Night
D-WDR
Cloud Upgradeable
Smart EXIR Range up to 98’
IP67 Weather Resistant
12VDC/PoE Operation
ONVIF
Free iOS & Android Apps for Smart Phones & Tablets
Free Central Management Software (CMS) to manage multiple units & sites from a single platform
Free MAC client software available to manage your system from your Apple computer

Camera	VIS-P4TXIRLC
Sensor	1/3″, progressive scan, 4.0 megapixel, CMOS
Lens	2.8mm@F2.0, 4.0mm@ F2.0
DORI Distance	2.8mm: 2.8mm: 137’ (Detect), 55’ (Observe), 28’ (Recognize), 14’ (Identify) 4mm: 4mm: 197’ (Detect), 78’ (Observe), 39’ (Recognize), 20’ (Identify)
Angle of View (H)	2.8mm: 104.4°, 4mm: 78.9°
Angle of View (V)	2.8mm: 54.4°, 4mm: 39.6°
Angle of View (O)	2.8mm: 135.7°, 4mm: 97.0°
Adjustment angle	Pan: 0°~360°, Tilt: 0°~90, Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Color: 0.03 Lux (F2.0, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52dB
IR Range	Up to 30m (98 ft) IR range
WDR	DWDR
Video
Video Compression	Ultra 265,H.265,H.264,MJPEG
Frame Rate	Main Stream:4MP (25921520): Max. 20 fps; Sub Stream:720P (1280720): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration	ONVIF(Profile S), API
Interface
Network	10/100M Base-TX Ethernet
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
	Power consumption: Max. 4w
Dimensions (Ø x H)	Φ118x 96 mm (Φ4.6” x 3.8”)
Weight	0.35kg (0.77lb)
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress Protection	IP67
