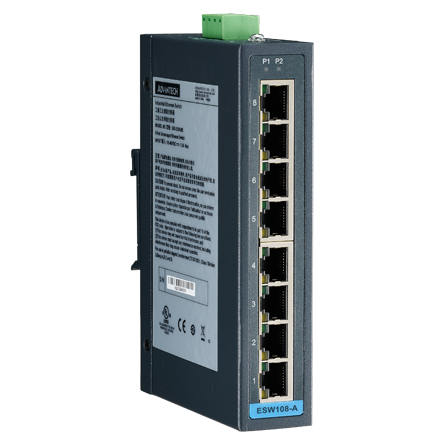

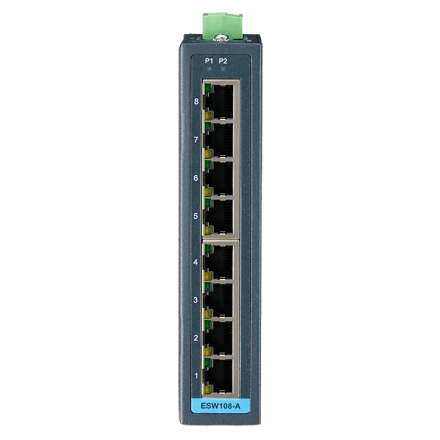

Switch Advantech BB-ESW108-A
8FE Slim-type Unmanaged Industrial Ethernet Switch with Low VAC Power Input
- 8 x fast Ethernet ports with auto MDI/MDI-X
- Supports 10/100 Mbps auto negotiation
- Compact size with DIN rail and wall mount
- Supports redundant 12~48 VDC or 10~24 VAC power input
- Wide operating temperature range of -40 ~ 75°C
- C1D2 for hazardous locations
The ESW108-A provides a C1D2 compliant fast Ethernet solution and comes with a compact metal enclosure, making it suitable for installation in narrow areas. The IP40-rated enclosure ensures protection against dusty environment.
- Part Number
- Details
-
BB-ESW108-A
- Description
- Total Port Number
- 8 x 10/100Base-TX
- 8
- EMI
- EMS
- Safety
- CE, FCC Class A
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- EN 60950, UL60950, Class 1 Division 2
- Temperature (Min. Operating)
- Temperature (Max. Operating)
- Temperature (Operating Range)
- Temperature (Storage Range)
- -40°C (-40°F)
- 75°C (167°F)
- -40 ~ 75°C (-40 ~ 167°F)
- -40 ~ 85°C (-40 ~ 185°F)
- Fiber Port Number
- Fiber Port Interface
- Fiber Port Connector Type
- Fiber Transmission Distance
- Fiber Transmission Speed
- RJ45 Port Number
- RJ45 Port Connector Type
- RJ45 Transmission Distance
- RJ45 Transmission Speed
- –
- –
- –
- –
- –
- 8
- RJ45
- 100 m
- 10/100Mbps
- Mounting (DIN-rail)
- Mounting (Stack)
- Mounting (Panel)
- Mounting (Wall)
- Mounting (Rack Mount)
- Mounting (Pole Mount)
- Dimensions (W x H x D)
- Enclosure (Metal)
- Enclosure (Plastic)
- IP Rating
- Weight
- Yes
- –
- –
- Yes
- –
- –
- 30 x 140 x 95 mm (1.18″ x 5.51″ x 3.74″)
- Yes
- –
- IP30
- –
- PoE Port Number
- PoE Budget
- PoE Output
- Support PoE
- –
- –
- –
- No
- Power Connector Type
- Power Consumption
- Power Input (AC)
- Power Input (DC)
- Power Input (PoE)
- Power Input (Battery)
- 4-pin removable terminal (power)
- 5.1 W
- 10~24 VAC
- 12~48 VDC
- –
- –
- Layer 2 – Unmanaged Switch
- Yes
- Jumbo Frame
- MAC Table Size
- Packet Buffer Size
- Switch Fabric Speed
- –
- –
- –
- –
- Warranty Period
- 5 years
- Overload Current
- Reverse Polarity
- Present
- Present
