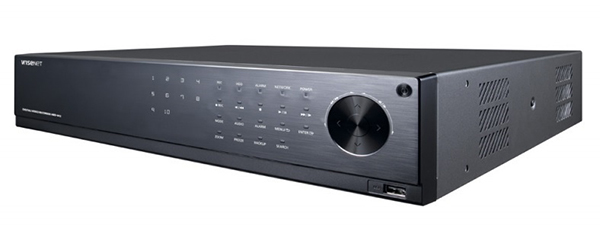

Đầu ghi hình camera AHD 8 kênh Hanwha Techwin WISENET HRD-842/VAP

– Chuẩn nén hình ảnh: H.264, MPEG-4, MJPEG.

Mã: HRD-842/VAP Danh mục: Đầu ghi hình WISENET

Mô tả
Sản phẩm liên quan

Đầu ghi hình camera AHD 8 kênh Hanwha Techwin WISENET HRD-842/VAP

– Đầu ghi hình camera AHD 8 kênh.

– Chuẩn nén hình ảnh: H.264, MPEG-4, MJPEG.

– Độ phân giải: 4.0 Megapixel.

– Hỗ trợ camera ngõ vào analog: AHD, TVI, CVI.

– Hỗ trợ 4 ổ cứng SATA dung lượng lưu trữ mỗi ổ cứng 8TB.

– Hỗ trợ 2 cổng eSATA.

– 8 kênh ngõ vào Audio, 1 kênh ngõ ra Audio.

– Tốc độ ghi hình: Up to 120fps@4MP (NTSC) / Up to 100fps@4MP (PAL).

– Băng thông tối đa: 64 Mbps.

– Tương thích với tín hiệu ngõ ra: HDMI/ VGA.

– Ethernet: 1 RJ45 10/100/1000 Base-T.

– Cổng kết nối: RS485.

– Kết nối cổng USB: 1 cổng (USB 3.0 Rear), 1 cổng (USB 2.0 Front).

– Cáp đồng trục Pelco-C (Coaxitron) AHD: ACP (AHD Coax Protocol)

– WebViewer, iPolismobile Viewer, SSM (CMS), Smartviewer.

– Hỗ trợ xem qua điện thoại di động Smartphone và hệ điều hành Android, iOS.

Đặc tính kỹ thuật

Mode	HRD-842/VAP
DISPLAY
Video	Inputs	8CH BNC, : AHD (4MP), TVI (2MP), CVI (2MP), NTSC / PAL
Video	Resolution	2560 x 1440, 1920 x 1080, 960 x 480, 704 x 480, 960 x 576, 704 x 576
Live	Frame Rate	240fps, 200fps
	Resolution	2560 x 1440, 1920 x 1080, 960 x 480, 704 x 480, 960 x 576, 704 x 576
	Multi Screen Display	1 / 4 / 7 / 9 / PIP / Sequence
PERFORMANCE
Operating System	Embedded	Linux
Recording	Compression	H.264
	Record Rate (Analog)	NTSC : Up to 120fps@4MP / PAL : Up to 100fps@4MP
		NTSC : Up to 240fps@1920 x 1080 / PAL : Up to 200fps@1920 x 1080
		NTSC : Up to 240fps@1280 x 720, 928 x 480, 704 x 480, 704 x 240, 352 x 240
		PAL : Up to 200fps@1280 x 720, 928 x 576, 704 x 576, 704 x 288, 352 x 288
	Mode	Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 30 fps (N), 1 ~ 25fps (P))
	Event	Video Loss, Motion (Level 1 ~ 10), Alarm,
	Event	Tampering (Level Low, Medium, High)
	Overwrite Modes	Continuous
	Pre-alarm	Up to 30 sec (5, 10, 20, 30 Sec)
	Post-alarm	Up to 6 hour (5, 10, 20, 30 Sec, 1, 3, 5, 10, 20 min, 1, 2, 3, 4, 5, 6 hour)
Search & Playback	Search Mode	Date / time, Event, Back up, Motion
	Playback Function	Fast forward / Backward (2x, 4x, 8x, 16x, 32x, 64x)
		Slow forward / Backward (1/2x, 1/4x, 1/8x)
		Step Forward / Backward
Network (IPv4)	Transmission Speed	Record Stream : 4M : 15fps, 1080p / 720p / WD1 / 4CIF / CIF (NTSC : 30fps, PAL : 25fps)
	Transmission Speed	Network Stream : WD1 / 4CIF : 12fps, 2CIF / CIF (NTSC : 30fps, PAL : 25fps)
	Bandwidth	Up to 64Mbps
	Bandwidth Control	Selectable
	Stream	Record stream and network stream selectable (at monitoring viewer)
	Max. Remote Users	Search (3) / Live Unicast (10) / Live Multicast (20)
	Protocol Support	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
	Monitoring	SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
Smart Phone	Platform	Android, iOS
	Protocol Support	RTP, RTSP, HTTP
	Control	Live (8ch) : Multi-Profile Support Playback (1ch)
	Max. Remote Users	Search (3), Live Unicast (10), Multicast (20)
Storage	Internal HDD	Up to 4 SATA HDDs (0 ~ 8TB HDD)
	External (e-SATA Interface)	e-SATA, USB (for Backup)
	File Format (Backup)	BU (DVR player), SEC (Include player), AVI
Security	Password Protection	1 Admin, 10 group, 10 User per 1 group
Security	Data Authentication	Watermark
INTERFACE
Monitors	VGA	1 VGA (1920 x 1080, 1280 x 1024, 1280 x 720)
	HDMI	1 HDMI (4K (3840 x 2160), 2K (2560 x 1440), 1920 x 1080, 1280 x 1024, 1280 x 720)
	Spot Composite	BNC (1CH) Included OSD on screen, Multi mode support
Audio	Inputs / Output	8CH line In (Built-in 4CH, Option : Audio extension cable) / 1CH line out
	Compression	G.711
	Sampling Rate	8KHz
Alarm	Inputs / Output	Terminal 8 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC), Rating : 30V DC/2A, 250V AC/0.25A
Alarm	Remote Notification	Notification Via e-mail
Connections	Ethernet	1 RJ45 10/100/1000 Base-T
	Serial Interface	RS-485 (Half Duplex) for PTZ, Samsung System Keyboard
	USB	1 ports (USB 3.0, Rear), 1 ports (USB 2.0, Front)
	e-SATA	2 External SATA port
	Application Support	Mouse, IR remocon
	RS-485 Protocol	Samsung-E / Samsung-T / Pelco-D / Pelco-p / Panasonic / Phillips / AD / DIAMOND / ERNA / KALATEL / VCL TP/VICON / ELMO / GE
	Coax Protocol	NTSC / PAL : Pelco-C (Coaxitron), AHD : ACP (AHD Coax Protocol)
GENERAL
Electrical	Input Voltage / Current	100 ~ 240V AC ±10%, 50/60 Hz
Electrical	Power Consumption	Max. 25W (1 x 2TB HDD)
Environmental	Operating Temperature	+0°C ~ +40°C (+32°F ~ +104°F)
Environmental	Operating Humidity	20% ~ 85% RH
Mechanical	Dimensions	440 x 88.0 x 384.8mm
Mechanical	Weight	Approx. 5.24kg

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 36 tháng.
