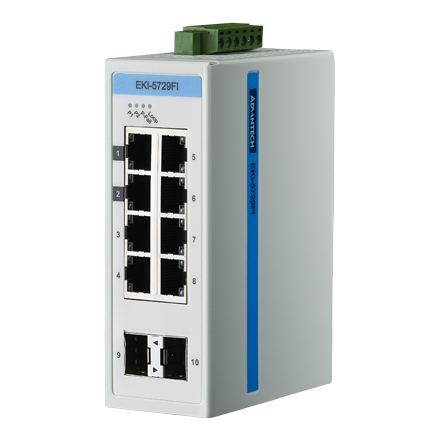

Switch Advantech EKI-5729FI
8GE+2G SFP Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃
- Communicates with SCADA software via Modbus/TCP
- Communicates with NMS (Networking management system) via SNMP
- Port-based QoS for deterministic data transmission
- -40~75°C operating temperature range (EKI-5729FI only)
- 12V~48 V DC (8.4 V to 52.8 V DC ) wide-range power input
- EMS level 3 protection for extreme outdoor environments
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Supports redundant 12~48V DC power input and P-Fail relay
- Loop detection
The EKI-5729F/FI are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5729F/FI switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.
- Part Number
- Details
-
EKI-5729FI-AE
- Description
- Total Port Number
- 8 x 10/100/1000Base-T(X) + 2 x 10/100/1000 SFP
- 10
- EMI
- EMS
- Safety
- CE, FCC
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- UL508, Class 1 Division 2, ATEX
- Temperature (Min. Operating)
- Temperature (Max. Operating)
- Temperature (Operating Range)
- Temperature (Storage Range)
- -40°C (-40°F)
- 75°C (167°F)
- -40 ~ 75°C (-40 ~ 167°F)
- -40 ~ 85°C (-40 ~ 185°F)
- Fiber Port Number
- Fiber Port Interface
- Fiber Port Connector Type
- Fiber Transmission Distance
- RJ45 Port Number
- RJ45 Port Connector Type
- RJ45 Transmission Distance
- RJ45 Transmission Speed
- 2
- SFP
- SFP
- Up to 110km
- 8
- RJ45
- 100 m
- 10/100/1000 Mbps
- Mounting (DIN-rail)
- Mounting (Stack)
- Mounting (Panel)
- Mounting (Wall)
- Mounting (Rack Mount)
- Mounting (Pole Mount)
- Dimensions (W x H x D)
- Enclosure (Metal)
- Enclosure (Plastic)
- IP Rating
- Weight
- Yes
- –
- –
- Yes
- –
- –
- 43 x 120 x 84 mm
- Yes
- –
- IP30
- 700g
- PoE Port Number
- PoE Budget
- PoE Output
- Support PoE
- –
- –
- –
- No
- Power Connector Type
- Power Consumption
- Power Input (DC)
- Power Operating Current
- 6-pin removable screw terminal ((power & relay)
- Max. 6.8W
- 12 ~ 48 VDC
- 0.23A @ 24V
- Layer 2 – Unmanaged Switch
- Yes
- Jumbo Frame
- MAC Table Size
- Packet Buffer Size
- Switch Fabric Speed
- 9,216 bytes
- 8K
- 4.1M bit
- 20Gbps
- Warranty Period
- 5 years
- Overload Current
- Reverse Polarity
- Present
- Present
