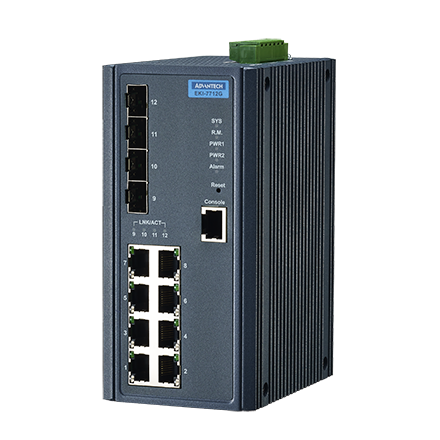

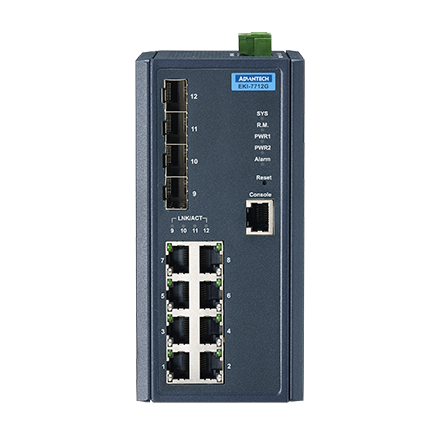

Switch Advantech EKI-7712G-4F
8GE+4G SFP Managed Ethernet Switch
- 8 Gigabit ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: X-Ring Pro (ultra high-speed recovery time
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- NEMA TS2 for Traffic Control
- EN50121-4 approval for Railway trackside deployment
- -40 ~ 75°C wide-range operating temperature (EKI-7712G-4FI)
- Dual 12~48 VDC power input and 1 relay output
EKI-7712G-4F/4FI supports 8 Gigabit ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advantech IXM
function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712G series also support NMS to help IT managers with networking stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7712G-4FI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications maintenance and failure prevention. Finally, the EKI-7712G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.
function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712G series also support NMS to help IT managers with networking stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7712G-4FI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications maintenance and failure prevention. Finally, the EKI-7712G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.
- Part Number
- Details
-
EKI-7712G-4F-AE
- Total Port Number
- Description
- 12
- 12 x 10/100/1000Base-T(X)
- Ethernet Standard
- Vibration
- Freefall
- Shock
- EMS
- EMI
- EMC
- Safety
- IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
- IEC 60068-2-6
- IEC 60068-2-32
- IEC 60068-2-27
- –
- CE, FCC Class A
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
- UL 61010
- Temperature (Max. Operating)
- Temperature (Min. Operating)
- Relative Humidity
- Temperature (Operating Range)
- Humidity (Operating Range)
- Temperature (Storage Range)
- 60°C (140°F)
- -10°C (14°F)
- 10 ~ 95%
- -10 ~ 60°C (14 ~ 140°F)
- –
- – 40 ~ 85°C ( -40 ~ 185°F)
- RJ45/SFP Combo Port Speed
- RJ45/SFP Combo Port Number
- Fiber Port Supports VDSL
- Fiber Port Optical Mode
- Fiber Transmission Speed
- Fiber Port Number
- RJ45 Port Number
- Fiber Transmission Distance
- Fiber Port Connector Type
- Fiber Port Interface
- RJ45 Transmission Distance
- Ethernet Standard
- RJ45 Port Connector Type
- RJ45 Transmission Speed
- –
- –
- NO
- –
- –
- 4
- 8
- Up to 110km
- SFP
- SFP
- 100 m
- –
- RJ45
- 10/100/1000Mbps
- Mounting (Panel)
- Enclosure (Plastic)
- Mounting (Pole Mount)
- Mounting (Stack)
- Mounting (Wall)
- Mounting (Rack Mount)
- Mounting (DIN-rail)
- Weight
- IP Rating
- Dimensions (W x H x D)
- Enclosure (Metal)
- –
- –
- –
- –
- Yes
- –
- Yes
- 1.1kg
- IP30
- 74 x 152 x 105 mm
- Yes
- Method
- Time
- Telcordia(Relax), GB
- 1,001,782 hours
- Support PoE
- PoE Output
- PoE Budget
- PoE Port Number
- –
- –
- –
- –
- Redundant Dual Inputs
- Power Input (Battery)
- Power Input (PoE)
- Power Input (AC)
- Power Operating Current
- Power Connector Type
- Power Input (DC)
- Power Consumption
- –
- –
- –
- –
- 0.25A @ 48Vdc (system)
- 6-pin removable screw terminal ((power & relay)
- 12 ~ 48 VDC
- 12.1W (system)
- Reverse Polarity
- Overload Current
- Present
- –
- Jumbo Frame
- Switch Fabric Speed
- Packet Buffer Size
- MAC Table Size
- 9,216 bytes
- 24Gbps
- 4.1M bit
- 8K
- Warranty Period
- 5 years
