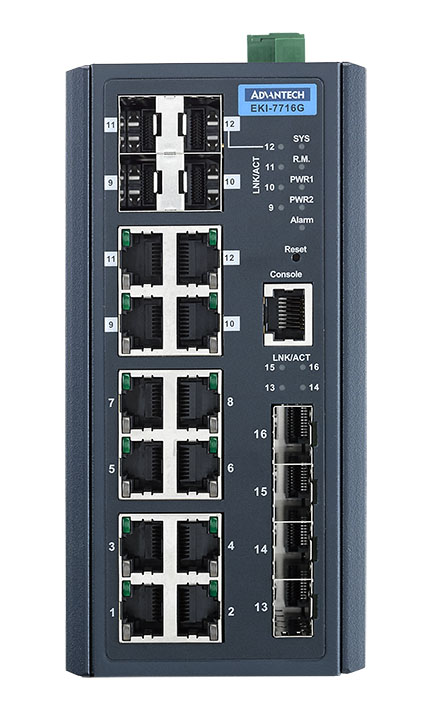

Switch Advantech EKI-7716G-4F4CI
8GE+4SFP+4G Combo port Managed Redundant Industrial Switch
- 12 ~ 48 VDC power input and 1 relay output
- -40 ~ 75°C wide-range operating temperature (EKI-7716G-4F4CI)
- EN50121-4 approval for railway trackside deployment
- NEMA TS2 for traffic control
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- IXM function enables fast deployment
- Redundancy: X-Ring Pro (ultra high-speed recovery time
- SFP socket for easy and flexible fiber expansion
- EKI-7716G-4F4C/4F4CI supports 8 Gigabit Ethernet, 4 Gigabit SFP (mini-GBIC), and 4 Gigabit combo ports. It provides abundant ports to connect many devices. EKI-7716G-4F4C/4F4CI is embedded with Advantech IXM function for fast deployment that can dramatically save engineering time and cost. EKI-7716G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7716G series is equipped with X-Ring Pro redundancy for ultra high-speed recovery times of less than 20 ms. The switch also features -40 to 75 °C wide temperature operation and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications. EKI-7716G-4F4C/4F4CI also passes the EN50121-4 European railway standard for emissions and EMI immunity for railway platforms and trackside deployment.
EKI-7716G-4F4C/4F4CI supports 8 Gigabit Ethernet, 4 Gigabit SFP (mini-GBIC), and 4 Gigabit combo ports. It provides abundant ports to connect many devices. EKI-7716G-4F4C/4F4CI is embedded with Advantech IXM function for fast deployment that can dramatically save engineering time and cost. EKI-7716G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7716G series is equipped with X-Ring Pro redundancy for ultra high-speed recovery times of less than 20 ms. The switch also features -40 to 75 °C wide temperature operation and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications. EKI-7716G-4F4C/4F4CI also passes the EN50121-4 European railway standard for emissions and EMI immunity for railway platforms and trackside deployment.
- Part Number
- Details
-
EKI-7716G-4F4CI-AE
- Total Port Number
- Description
- 8
- 8 x 10/100/1000Base-T(X)
- Ethernet Standard
- Vibration
- Freefall
- Shock
- EMS
- EMI
- EMC
- Safety
- 802.1p,802.3ad,802.1x,802.1D, 802.1s, 802.1w
- IEC 60068-2-6
- IEC 60068-2-32
- IEC 60068-2-27
- –
- CE, FCC Class A
- EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN 50121-4, NEMA TS2
- –
- Temperature (Max. Operating)
- Temperature (Min. Operating)
- Relative Humidity
- Temperature (Operating Range)
- Humidity (Operating Range)
- Temperature (Storage Range)
- 75°C (167°F)
- -40°C (-40°F)
- 10 ~ 95%
- -40~75°C (-40~167°F)
- –
- -40 ~ 85°C (-40 ~ 185°F)
- RJ45/SFP Combo Port Speed
- RJ45/SFP Combo Port Number
- Fiber Port Supports VDSL
- Fiber Port Optical Mode
- Fiber Transmission Speed
- Fiber Port Number
- RJ45 Port Number
- Fiber Transmission Distance
- Fiber Port Connector Type
- Fiber Port Interface
- RJ45 Transmission Distance
- Ethernet Standard
- RJ45 Port Connector Type
- RJ45 Transmission Speed
- –
- 4
- NO
- –
- –
- 4
- 16
- Up to 110km
- SFP
- SFP
- 100 m
- –
- 8 x RJ-45 + 4 x SFP + 4 x RJ-45/SFP
- 10/100/1000Mbps
- Mounting (Panel)
- Enclosure (Plastic)
- Mounting (Pole Mount)
- Mounting (Stack)
- Mounting (Wall)
- Mounting (Rack Mount)
- Mounting (DIN-rail)
- Weight
- IP Rating
- Dimensions (W x H x D)
- Enclosure (Metal)
- –
- –
- –
- –
- Yes
- –
- Yes
- 1.2kg
- IP30
- 74 x 152 x 105 mm (2.91″ x 5.98″ x 4.13″)
- Yes
- Method
- Time
- Telcordia, GB
- –
- Support PoE
- PoE Output
- PoE Budget
- PoE Port Number
- –
- –
- –
- –
- Redundant Dual Inputs
- Power Input (Battery)
- Power Input (PoE)
- Power Input (AC)
- Power Operating Current
- Power Connector Type
- Power Input (DC)
- Power Consumption
- –
- –
- –
- –
- 0.25A @ 48Vdc (system)
- 6-pin removable screw terminal ((power & relay)
- 12 ~ 48 VDC
- 12.1W (system)
- Reverse Polarity
- Overload Current
- Present
- –
- Jumbo Frame
- Switch Fabric Speed
- Packet Buffer Size
- MAC Table Size
- 9,216 bytes
- 32Gbps
- 4.1MB
- 8K
- Warranty Period
- 5 years
