Camera IP EYENOR ENC-HBLCO-00R-18 | Made in UK

Model

Model No.

ENC-HBLCO-00R-18

Type

4K 12MP Starlight H.265 IP Low light Box Camera

CAMERA

Image Sensor

1/1.7″Progressive scan, CMOS

Min. Illumination

Colour: 0.005Lux @F1.2
B/W: 0.03Lux @F1.2

AGC

Supported

Shutter

Auto/Manual, 1~1/100000s

Lens Mount

CS

Iris

DC-Iris 4V (4-Pin)/P-Iris 5V (4-Pin)

Day & Night

Automatically removable IR-cut filter(ICR)

Digital Noise Reduction

2D/3D DNR

Motor Zoom/Auto Focus

DC 5V (4-pin)

S/N Ratio

>55dB

Defog

Optical Defog & Digital Defog

WDR

dWDR

VIDEO & AUDIO

 Max Resolution

 4000 x 3000

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream:12MP (4000×3000): Max. 20 fps;
8MP(3840×2160): Max. 30 fps, 2MP(1920×1080)@60 fps
Sub Stream:2MP (1920×1080) : Max. 30 fps; Third Stream: D1 (720×576): Max. 30 fps

Corridor Mode

Supported

HLC & BLC

Supported

OSD

Up to 8 OSDs

ROI

Up to 8 areas

Privacy Mask

Up to 8 areas

Motion Detection

Up to 4 areas

Audio Compression

G.711U/G.711A

Two-way Talking

Supported

NETWORK & INTERFACE

Protocols

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP (TLS/SSL), 802.1x, SNMP, QOS

Compatibility

ONVIF (Profile S, Profile G), API

Network

100M/1000M Base-FX SFP+100M/1000M Base-TX Ethernet

Audio I/O

1/1

Alarm I/O

2/1

Serial Port

1 RS 485

BNC

Supported

SMART

Behavior Detection

Intrusion, Cross line, Motion detection

Intelligent Identification

Face detection, Defocus, Scene Change, Missing Object, Abandoned Object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

GENERAL

Power

AC 24V±25%, DC 12V±25%, PoE (IEEE 802.3af)

Power Consumption: Max 9.5W

Storage

Micro SD, Up to 256 GB

ANR

Supported

Working Environment

-20°C ~ 60°C (-4°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

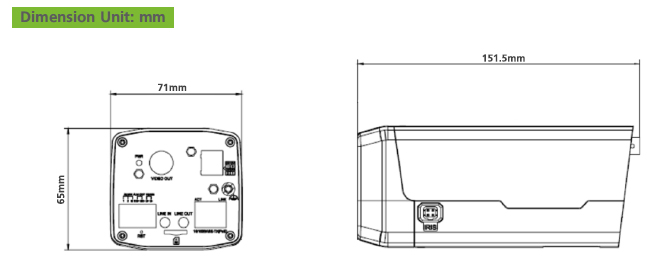

Dimension

151.5x71x65mm

Weight

0.48Kg

Reset Button

Supported
