Camera IP EYENOR ENC-HBL5O-00R-20 | Made in UK

MODEL

Model No.

ENC-HBL5O-00R-20

Type

2MP Starlight IP H.265 Box Camera

Image Sensor

1/1.8″Progressive scan, CMOS

AGC

Auto/Manual

CAMERA

Min. Illumination

Colour: 0.0005 [email protected] B/W:0.0005 [email protected]

Shutter

Auto/Manual, 1~1/100000s

Lens Mount

CS

Iris

DC-Iris 4V (4-Pin)/P-Iris 5V (4-Pin)

Day & Night

Automatically removable IR-cut filter(ICR)

Digital noise reduction

2D/3D DNR

Motor Zoom/focus

DC 5V (4-Pin)

S/N

>52dB

Defog

Optical Defog & Digital Defog

WDR

120dB

VIDEO & AUDIO

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream:2MP (1920×1080): Max. 60 fps;
Sub Stream:2MP (1920×1080): Max. 60 fps;
Third Stream:D1 (720×576): Max. 60 fps

Corridor Mode

Supported

HLC/BLC

Supported

Auto Back Focus

Supported

OSD

Up to 8 OSDs

ROI

Up to 8 areas

Privacy Mask

Up to 8 areas

Motion Detection

Up to 4 areas

Audio Compression

G.711U/G.711A

Two-way Audio

Supported

SMART

Behavior Detection

Intrusion, cross line, motion detection

Intelligent Identification

Face detection, Defocus, Scene Change,Abandoned object, Missing object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK & INTERFACE

Protocols

IPv6, IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,802.1x, SNMP, QoS

Compatibilty

ONVIF (Profile S, Profile G), API

Audio I/O

1/1

Alarm I/O

2/1

RS485

Supported

Network

1 RJ45 100M/1000M Base-FX SFP+100M/1000M Base-TX Ethernet

BNC

Supported

GENERAL

Power

24 V Ac±25%, 12 V DC±25%, PoE (IEEE802.3 af)

Power consumption: Max 6.8W

Storage

Micro SD, Up to 256 GB

Working Environment

–20°C ~ +60°C, Humidity :10%~90% RH (Non-condensing)

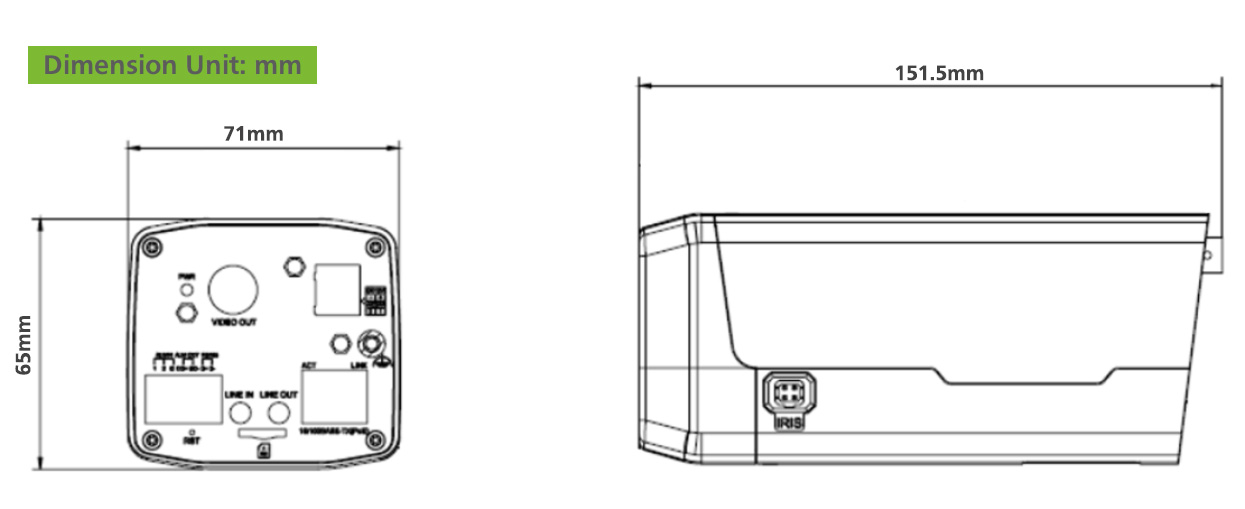

Dimension

151.5x71x65mm

Weight

0.48Kg

Reset Button

Supported
