Camera IP EYENOR ENC-HBU5F-50R-45 | Made in UK

MODEL

Model No.

ENC-HBU5F-50R-45

Type

2MP 60FPS Starlight IP H.265 Bullet Camera

Image Sensor

1/2.8″, Progressive scan, 2.0 Megapixel, CMOS

CAMERA

Lens

4mm (Optional 6mm)

Angle of View (H)

78.7° (53.3° for 6mm)

Shutter

Auto/Manual, 1~1/100000 s

Min. Illumination

Colour: 0.001Lux @F1.6
BW: 0Lux with IR on

AGC

Auto/Manual

IR Range

Up to 50M

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

Defog

Digital Defog

Noise Reduction

2D/3D DNR

WDR

120dB

VIDEO

Max. Resolution

 1920×1080

Video Compression

H.265+,H.265, H.264, MJPEG

Frame Rate

Main Stream:2MP(1920 x 1080): Max. 60 fps, ;
Sub Stream: 2MP(1920 x 1080): Max. 30 fps;
Third Stream: D1(720 x 576): Max. 30 fps;

Corridor Format

Supported

HLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

SMART

Behavior Detection

Intrusion, Crossing line, Motion detection

General Function

Watermark, IP Address Filtering, output/input Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Intelligent Identification

Face detection, Defocus, Scene Change,Missing Object, Abandoned Object

Statistical Analysis

People counting

NETWORK

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

Compatible Integration

ONVIF(Profile S/G), API

Network

RJ45 10M/100M Base-TX Ethernet

GENERAL

Power Supply

12 V DC ±25%, PoE (IEEE802.3 af)

Power consumption: Max 7.5W

Operating Temperature

-35°C ~ 60°C, Humidity:≤95% RH (non-condensing)

Storage

Micro SD, Up to 256 GB

ANR

Supported

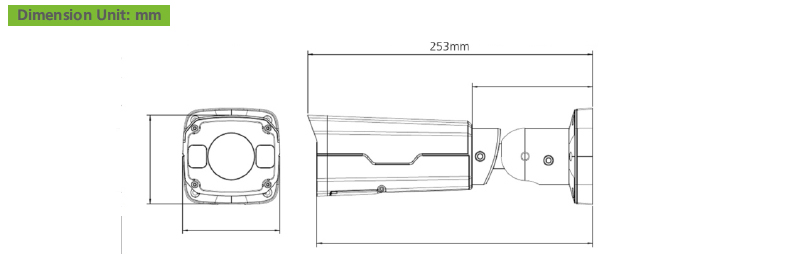

Dimensions

253x86x71.7mm

Weight

1.0Kg

Ingress Protection

IP67

Vandal Resistant

IK10
