Camera IP EYENOR ENC-HBU7F-00R-38 | Made in UK
4MP IP Dual Sensor Body Temperature Detection Camera
Overview
Vanadium Oxide Uncooled Focal Plane Arrays, Supports optical and thermal bi-spectrum image, Thermal Resolution up to 256×192, Optical resolution up to [email protected], ±0.3°C Measurement Accuracy, Built-in Mic & Speaker, Alarm via white light PoE, IP67
Specification
|
MODEL |
Model No. |
ENC-HBU-7F-00R-38 |
|
|
Type |
4MP IP Dual Sensor Body Temperature Detection Camera |
||
|
THERMAL CAMERA |
Image Sensor |
Vanadium Oxide Uncooled Focal Plane Arrays |
|
|
Effective Pixels |
256×192 |
||
|
Thermal Sensitivity(NETD) |
[email protected], F1.1, 25Hz |
||
|
Spectral Range |
8-14um |
||
|
Pixel Size |
12um |
||
|
Focus |
3.2mm |
||
|
Angle of View(H) |
51° |
||
|
Lens Type |
Fixed |
||
|
Measurement Range |
30°C to 45°C |
||
|
Measurement Accuracy |
±0.3°C (with black body), ±0.5°C (without black body) |
||
|
Measurement Distance |
0.5m – 3m |
||
|
VISIBLE CAMERA |
Image Sensor |
1/1.8″ CMOS |
|
|
Effective Resolution |
[email protected] |
||
|
Shutter Speed |
1s to 1/100,000s |
||
|
Min Illumination |
Color: [email protected], B/W: 0Lux with IR |
||
|
AGC |
Auto/Manual |
||
|
Day & Night |
Dual IR Cut Filter with Auto Switch |
||
|
Focus |
4mm |
||
|
Lens type |
Fixed |
||
|
Max Aperture |
F1.0 |
||
|
Angle of View (H) |
90° |
||
|
White Light LED |
Supported (1nos) |
||
|
WDR |
120dB |
||
|
Smart Analytics* |
Abandoned object, Missing Object , Loitering, Running, Parking, Video /Audio Abnormality |
||
|
VIDEO & AUDIO
|
Video Compression |
H.265+, H.265, H.264, MJPEG |
|
|
Frame Rate |
Main Stream: PAL: 25fps (2560×1440, 1920×1080, 1280×720, 704×576), Thermal: 25fps (1280×960, Sub Stream: PAL: 25fps (704 576, 640 360, 352 288) NTSC: 25fps (704 576, 640 360, 352 288) |
||
|
Video Bit Rate |
32 Kbps to 16 Mbps |
||
|
ROI |
Upto 7 areas |
||
|
HLC/BLC |
Supported |
||
|
OSD |
Supported |
||
|
Defog |
Supported |
||
|
Motion Detection |
Supported |
||
|
Privacy Masking |
Supported |
||
|
DNR |
2D/3D |
||
|
Audio Detection |
G.711A/G.711U |
||
|
Audio Bitrate |
8K~48Kbps |
||
|
INTERFACE |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, 802.1X, QoS, PPPoE |
|
|
Compatibility |
ONVIF (Profile S) |
||
|
Network |
1 RJ45 10M/100M self adaptive Ethernet port |
||
|
Audio I/O |
1/1 |
||
|
Alarm I/O |
2/1 |
||
|
Built in Mic and speaker |
Supported |
||
|
GENERAL |
Power Supply |
AC12V/PoE |
|
|
Power Consumption |
8W |
||
|
Edge Storage |
Built-in MicroSD card slot, ANR |
||
|
Restet Button |
Support |
||
|
Working Environment |
-10 °C ~ 30°C, Humidity: < 90% RH |
||
|
Ingress Protection |
IP67 |
||
|

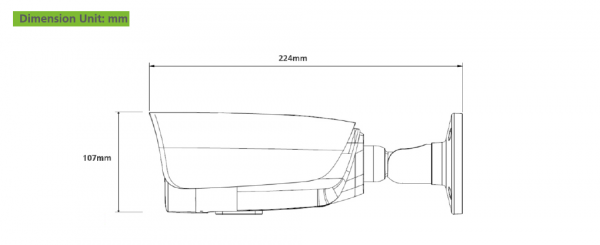

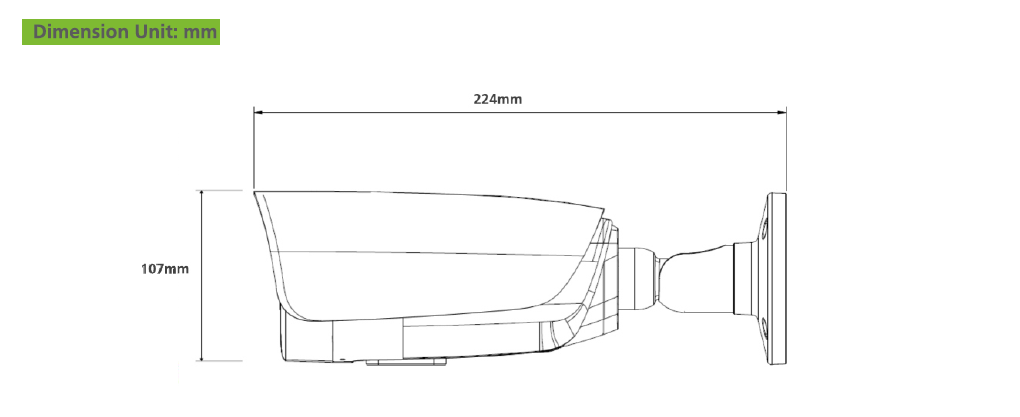

Dimension |
224x114x107mm |
||
|
Net Weight |
1.3Kg |
||
Ordering Information
|
Part Number |
Description |
Standard Quantity |
|
ENC-HBU7F-00R-38 |
4MP IP Dual Sensor Body Temperature Detection Camera with 4mm Fixed visible lens and Thermal camera with 256×192 Resolution, PoE, Bulit in Mic,WDR , Smart Analytics and SD card slot support |
1 |
|
ENR-02010-N-EPK |
10Ch Embedded Network Video Recorder With 2 HDD Bay Supports 8# PoE Ports, 4K cameras, HDMI and VGA . |
1 |
|
ENA-BBCTB01 |
Black body calibrator for ENC-HBU7F-00R-38 |
1 |
Downloads
| DataSheet | 451.80KB | DOWNLOAD |
