Overview
Day/Night functionality, Smart IR, Up to 30M, 2D/3D DNR,H.265+, H.265, H.264, MJPEG,ROI,dWDR, ONVIF (Profile S/G), 3-Axis, IP67,PoE
Specification
Model |
Model No. |
ENV-HCD8F-30R-17 |
Type |
5MP IR IP H.265 Compact Dome Camera |
|
|
Image Sensor |
1/2.7″, 4.0 megapixel, progressive scan 5MP,CMOS |
CAMERA |
Lens |
2.8mm(Optional 4mm) |
Angle of View (H) |
105.3° (79.7° for 4mm) |
|
Shutter |
Auto/Manual, 1~1/100000 s |
|
Min. Illumination |
Colour: 0.01 Lux( F2.0), 0 Lux with IR |
|
AGC |
Auto/Manual |
|
Day/Night |
IR Cut Filter with auto switch (ICR) |
|
Digital Noise Reduction |
2D/3D |
|
S/N |
>52dB |
|
IR Range |
Up to 30M |
|
WDR |
dWDR |
|
VIDEO & AUDIO
|
Max. Resolution |
2592×1944 |
Video Compression |
H.265+, H.265, H.264,MJPEG |
|
Frame Rate |
Main Stream: 5MP (2592*1944), Max 20fps; |
|
HLC/BLC |
Supported |
|
OSD |
Up to 4 OSDs |
|
Privacy Mask |
Up to 8 areas |
|
ROI |
UP to 2 areas |
|
Motion Detection |
UP to 4 areas |
|
Smart Function |
Intrusion,Motion detection, Tampering Alarm |
|
INTERFACE
|
Protocols |
IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
Compatibility |
ONVIF Profile (S/G) |
|
Network |
10/100M Base-TX Ethernet |
|
GENERAL |
Network |
10M/100M Base-TX Ethernet |
Power |
12V DC,PoE(IEEE802.3af) Power Consumption:Max 4W |
|
Working Environment |
-30°C ~ 60°C, Humidity ≤95% RH (non-condensing) |
|

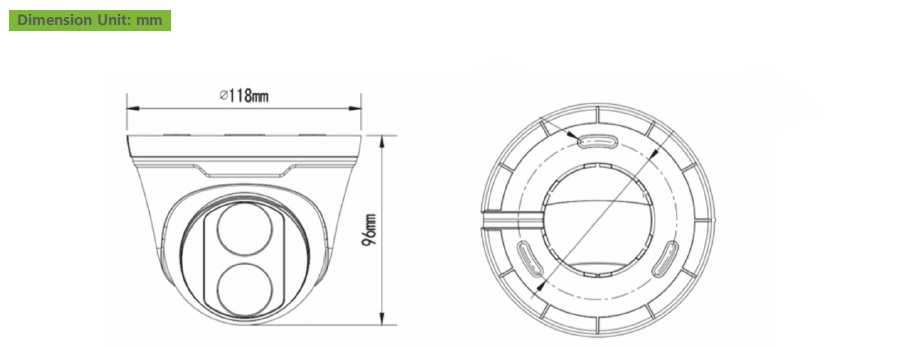

Dimension |
118x118x96mm |
|
Weight |
0.35Kg |
Ordering Information
Part Number | Description | Standard Quantity |
ENV-HCD8F-30R-17 |
5MP IR IP H.265 Compact Dome camera with 2.8mm(Optional 4mm) Fixed Lens, POE, and 30M IR support |
1 |
Downloads
Datasheet | 772.73KB | DOWNLOAD |
