Camera IP EYENOR ENC-HBU8M-50R-20 | Made in UK

MODEL

Model No.

ENC-HBU8M-50R-20

Type

5MP Starlight IP H.265 Bullet Camera

CAMERA

Image Sensor

1/2.7″, Progressive scan, 5.0Megapixel, CMOS

Lens

2.7~13.5mm (Motorized lens)

Angle of View (H)

93.38°~ 28.56°

Minimum Illumination

Colour: 0.002Lux @F1.2
BW: 0Lux with IR on

AGC

Auto/Manual

Shutter

Auto/Manual, Shutter time: 1~1/100000 s

DNR

2D/3D

IR Range

Upto 50M

Day/Night

IR-Cut filter with auto switch (ICR)

S/N

>52dB

Defog

Digital Defog

WDR

120dB

VIDEO

Max. Resolution

2592×1944

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream:5MP(2592 x 1944): Max.20 fps, 5MP(2592 x 1944): Max.25fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps,
3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max.30 fps;
Sub Stream:2MP(1920 x 1080): Max.30 fps; Third Stream:D1(720 x 765): Max.30 fps

Video Streaming

Triple

Corridor Mode

Supported

ROI

Up to 8 areas

HLC & BLC

Supported

Motion Detection

Upto 4 areas

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

Audio Compression

G.711U/G.711A

Two Way Audio

Supported

SMART

Behavior Detection

Intrusion, Crossing line, Motion detection

Intelligent Identification

Face detection, Audio detection, Defocus, Scene change, Missing object, Abandoned object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Protocols

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G), API

Network

RJ45 10M/100M Base-TX Ethernet

 INTERFACE

Audio I/O

1/1

Alarm IO

1/1

GENERAL

Power Supply

12 V DC±25%, PoE (IEEE802.3 af)

Power Consumption: 10W

Operating Temperature

-35°C ~ +60°C, Humidity: ≤95% RH (non-condensing)

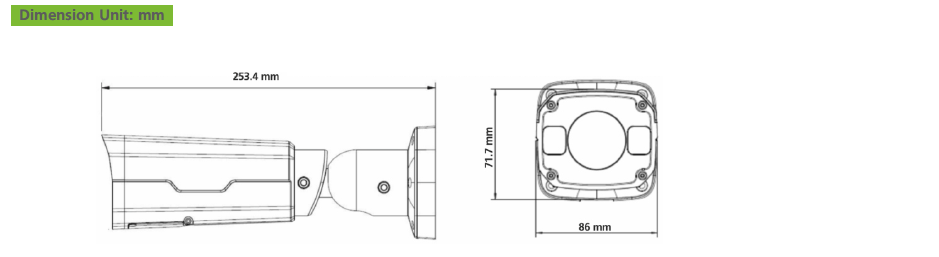

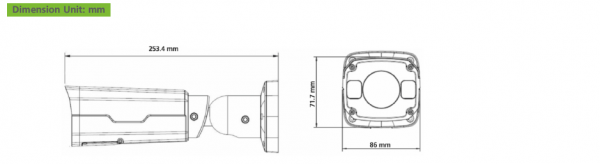

Dimensions

253.4x86x71.7 mm

Weight

1.0kg

Storage

Micro SD, Up to 256 GB

ANR

Supported

Ingress Protection

 IP67
