Camera IP EYENOR ENC-HCBAF-30R-11 | Made in UK

MODEL

Model No.

ENC-HCBAF-30R-11

Type

8MP 4K IR IP H.265 Compact Bullet Camera

CAMERA

Image Sensor

1/2.5″, Progressive scan, 8.0Megapixel, CMOS

Lens

4.0mm (6.0mm Optional)

Angle of View (H)

91.6° (54.2° for 6mm)

Shutter Speed

Auto/Manual, 1~1/100000s

Minimum Illumination

Colour: 0.05Lux @F2.0
BW: 0Lux with IR on

AGC

Auto/Manual

IR Range

Up to 30M

DNR

2D/3D DNR

Day/Night

IR-Cut filter with auto switch

S/N

>52dB

Defog

Digital Defog

WDR

120dB

VIDEO

Max. Resolution

3840×2160

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

 Main Stream:8MP (3840*2160), Max 20fps;
 Sub Stream:1080P (1920*1080), Max 30fps;
 Third Stream:D1(720*576), Max30fps

Corridor Mode

Supported

ROI

Up to 8 areas

HLC & BLC

Supported

Motion Detection

Upto 4 areas

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

SMART

Behavior Detection

Intrusion, Crossing line, Motion detection

Intelligent Identification

Face detection, Defocus, Scene change, Missing object, Abandoned object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Protocols

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G), API

Network

RJ45 10M/100M Base-TX Ethernet

GENERAL

Power

12 V DC±25%,PoE (IEEE802.3 af)

Power Consumption: Max 8W

Working Environment

-30°C ~ +60°C, Humidity: ≤95% RH (non-condensing)

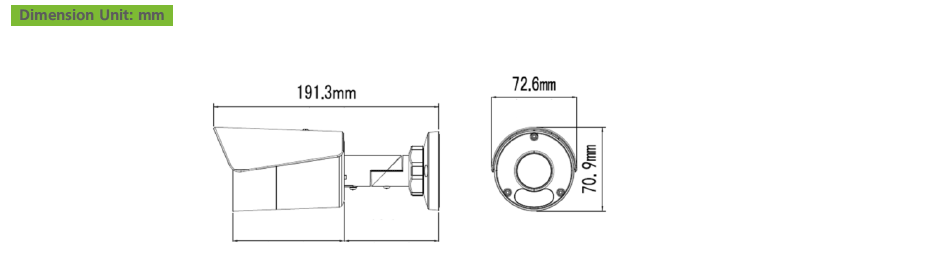

Dimensions

191.3×72.6×70.9mm

Weight

0.5kg

Ingress Protection

IP67
