Camera IP EYENOR ENC-HBUAZ-100R-20 | Made in UK

MODEL

Model No.

ENC-HBUAZ-100R-20

Type

CAMERA

Image Sensor

1/2.5″, Progressive scan, 8.0Megapixel, CMOS

Lens

2.8 ~ [email protected] F1.6,P-iris, AF automatic focusing and motorized zoom lens

Angle of View (H)

118.5° ~30.4°

Minimum Illumination

Colour: 0.02Lux @F1.6
BW: 0Lux with IR on

AGC

Auto/Manual

Shutter

Auto/Manual,1 ~ 1/100000s

Digital Noise Reduction

2D/3D DNR

IR Range

Up to 100M

Day/Night

IR-Cut filter with auto switch (ICR)

S/N

>55dB

Defog

Digital Defog

WDR

120dB

VIDEO & AUDIO

Max. Resolution

3840×2160

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

 Main Stream: 8MP (3840*2160), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Corridor Mode

Supported

ROI

Up to 8 areas

HLC/BLC

Supported

Motion Detection

Upto 4 areas

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

Audio Compression

G.711U/G.711A

Two Way Audio

Supported

SMART

Behavior Detection

Intrusion, Crossing line, Motion detection

Intelligent Identification

Face detection, Audio detection, Defocus, Scene change, Missing object, Abandoned object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Protocols

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G), API

Network

RJ45 10M/100M Base-TX Ethernet

INTERFACE

Audio I /O

1/1

Alarm I /O

2/1

BNC

Supported

GENERAL

Power

Operating Temperature

-40°C ~ +60°C, Humidity: ≤95% RH (non-condensing)

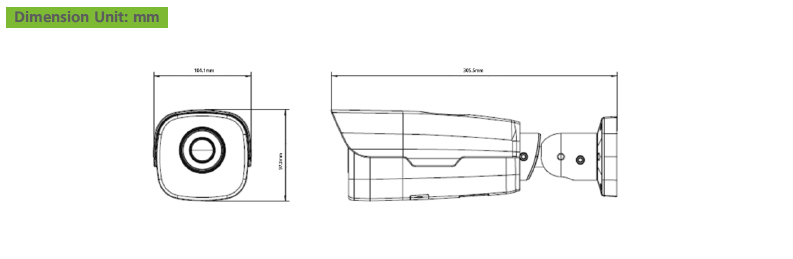

Dimensions

305.5×104.1× 97.3mm

 Weight

 1.65Kg

 Storage

 Micro SD, Up to 256 GB

 ANR

 Supported

Ingress Protection

 IP67

Reset Button

 Supported
