Camera IP EYENOR ENC-HCD5F-15R-69 | Made in UK

MODEL

Model No.

ENC-HCD5F-15R-69

Type

2MP H.265 IR IP Compact Dome Camera

CAMERA

Image Sensor

1/2.8″, 2.0 Megapixel, Progressive Scan, CMOS

Lens

2.8mm (3.6mm Optional lens)

Angle of View (H)

106.8°

Shutter

Auto/Manual, 1/5-1/20,000s

Min. Illumination

Colour: 0.01 Lux @F1.2
B/W: 0 Lux @(IR LED ON)

AGC

Auto/Manual

Day/Night

IR-Cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>55dB

IR Range

Up to 15M

Defog

Digital Defog

WDR

120dB

VIDEO

 Max Resolution

 1920×1080

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

 Main Stream: 1920×1080/1280×720 @25/30fps
 Sub Stream: D1/VGA/640×360/CIF/QVGA  @25/30fps
 Third Stream: VGA/CIF/QVGA @25/30fps

Streamiong Capability

Triple Stream

EIS/ROI

Supported

HLC/BLC

Supported

Privacy Mask

Supported

Motion Detection

Supported

 Audio Compression

 G.711U/G.711A

SMART

Behavior Detection

Perimeter, Single Virtual Fence, Double Virtual Fences

Intelligent Identification

Loiter, Multi Loiter, Missing Object, Abandoned Object

Statistical Analysis

Abnormal Speed, Converse, Illegal Parking, Signal Bad

NETWORK

Protocols

IPv4, IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP

Compatibility

ONVIF (Profile S,G)

CVBS Output

Supported

 Network

 1 Ethernet (10/100 Base-T) RJ-45 Connector

 Audio I/O

 1/1

 Alarm I/O

 1/1

NETWORK

Power

DC12V/POE (IEEE 802.3af)

Power Consumption

Max 5W

Edge Storage

Micro SD upto128GB

Reset Button

Supported

Working Environment

-40°C ~ 60°C Humidity: 90% RH

Ingress Protection

 IP67

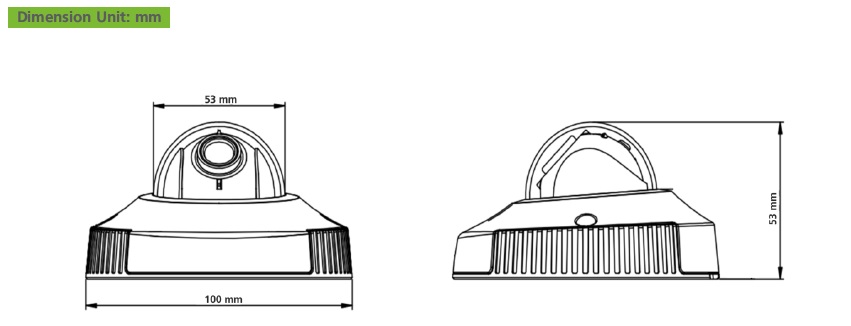

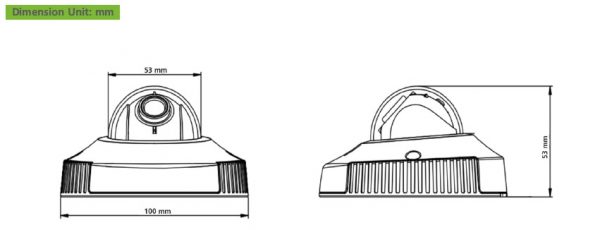

Dimensions

100x100x53mm

Weight

0.4Kg
