Camera IP EYENOR ENC-HCDAF-30R-68 | Made in UK

MODEL

Model No.

ENC-HCDAF-30R-68

Type

8MP H.265 IR IP Eyeball Camera

CAMERA

Image Sensor

1/2.5″, Progressive Scan, CMOS

Lens

2.8mm Fixed Lens

Angle of View (H)

110°

Shutter

Auto/Manual, 1/5~1/20000 s

Min. Illumination

Color: 0.01Lux @F1.2
B/W: 0 Lux @(IR LED ON)

AGC

Auto/Manual

Day/Night

IR-Cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>55dB

Smart IR

Up to 30M

Defog

Digital Defog

WDR

120dB

 Max Resolution

 3840 × 2160

VIDEO

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream: : 3840 × 2160/ 3072×2048/2592×1520/ 1920×1080 @25/30fps
Sub Stream: D1/ VGA / CIF/ QVGA @25/30fps
Third Stream: VGA/CIF/QCIF @25/30fps

Streaming Capability

Triple Stream

ROI

Supported

EIS

Supported

OSD

Up to 8 OSDs

Privacy Mask

Supported

Motion Detection

Supported

 Audio Compression

 G.711U/G.711A

SMART

Behavior Detection

Perimeter, Single Virtual Fences, Double Virtual Fences

Intelligent Identification

Loiter, Multi Loiter, Missing Object, Abandoned Object

Statistical Analysis

Abnormal Speed, Converse, Illegal Parking, Signal Bad

INTERFACE

Protocols

IPv4, IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP

Compatibility

ONVIF (Profile S,G)

Network

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio I/O

1/1

Alarm I/O

1/1

NETWORK

Power

DC 12 V PoE

Power Consumption

Max 7W

Working Environment

-30°C ~ 50°C Humidity: 90% RH

Ingress Protection

IP67

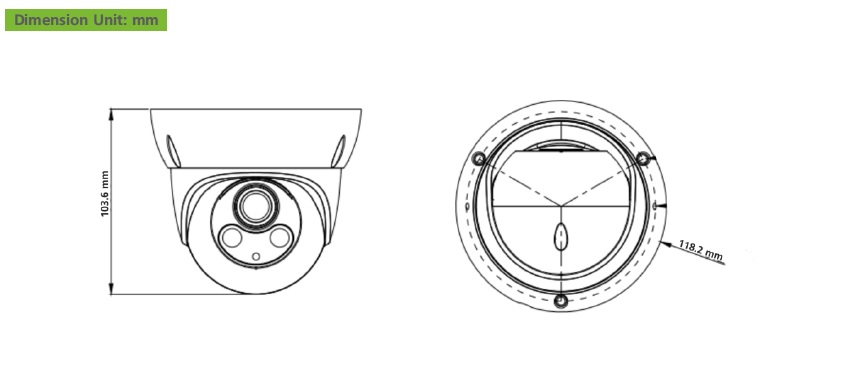

Dimensions

118.2×118.2×103.6mm

Weight

0.6Kg
