Camera IP EYENOR ENC-HDO5M-30R-20 | Made in UK

MODEL

Model No.

ENC-HDO5M-30R-20

Type

2MP Starlight IP H.265 Dome Camera

Image Sensor

1/2.8″, 2 Megapixel, Progressive scan CMOS

CAMERA

Lens

2.7~13.5 mm (Motorized Lens)

Angle of View (H)

121.36°(H) ~ 33.51°(H)

Zoom/Focus

Automatic

Shutter

Auto/Manual, shutter time: 1~1/100000 s

Min. Illumination

Colour: 0.0005 Lux (F1.2, AGC ON)
0 Lux with IR

Day/Night

IR-Cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

Defog

Digital Defog

IR Range

Up to 30M

WDR

120dB

VIDEO

Max. Resolution

1920×1080

Video Compression

H.265+, H.264, MJPEG

Frame Rate

Main Stream:2MP(1920 x 1080): Max. 30 fps, ;
Sub Stream: 2MP(1920 x 1080): Max. 30 fps;
Third Stream: D1(720 x 576): Max. 30 fps;

9:16 Corridor Format

Supported

HLC

Supported

BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

 Audio Compression

 G.711U/G.711A

Behavior Detection

Intrusion, Crossing line, Motion detection

SMART

General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Intelligent Identification

Face detection, Audio detection, Defocus, Scene Change, Missing Object, Abandoned Object

Statistical Analysis

People counting

NETWORK

Protocols

IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G), API

INTERFACE

Network

 RJ45 10M/100M Base-TX Ethernet

Built-in Mic

Supported

GENERAL

Power Supply

12 V DC ±25%, PoE (IEEE802.3 af)

Power consumption: Max 8.16W

Operating Temperature

-40°C ~ 60°C, Humidity ≤95% RH (Non-condensing)

 Storage

 Micro SD, Up to 256 GB

 ANR

 Supported

 Ingress Protection

 IP67

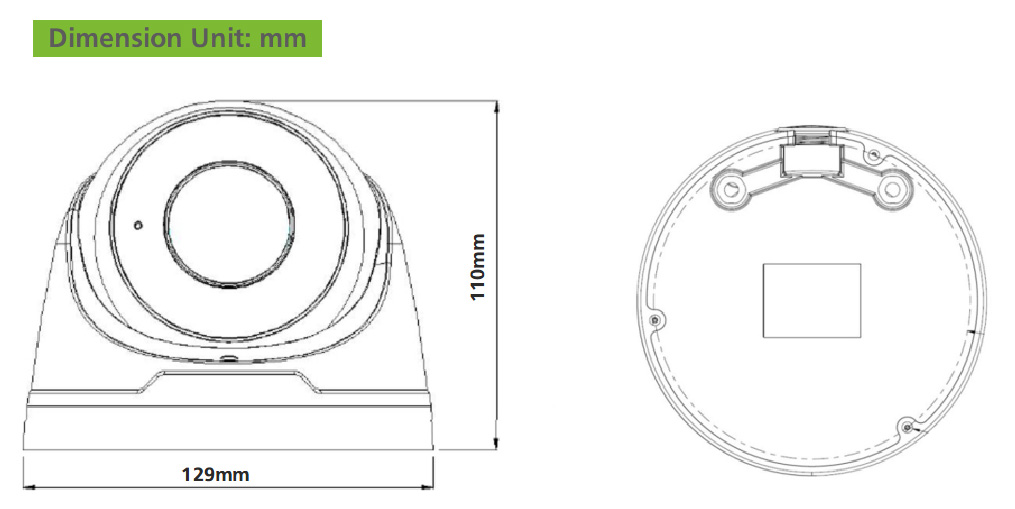

 Dimensions

 129x129x110mm

 Weight

 0.67Kg

 Reset Button

 Supported
