Camera IP EYENOR ENC-HVD5M-30R-20 | Made in UK

MODEL

Model No.

ENC-HVD5M-30R-20

Type

2MP Starlight IP H.265 Vandal Proof Dome Camera

CAMERA

Image Sensor

1/2.8″, 2 Megapixel, Progressive scan CMOS

Lens

2.7 ~ 13.5mm, Motorized zoom lens

Angle of View (H)

121.36° ~ 33.5°

Shutter

Auto/Manual, 1~1/100000 s

Min.Illumination

Colour: 0.0005 Lux @F1.2
0 Lux with IR

AGC

Auto/Manual

Day/Night

IR-Cut filter with auto switch (ICR)

Digital Noise Reduction

2D/3D DNR

S/N

>52dB

IR Range

Up to 30M IR Range

Defog

Digital Defog

WDR

120dB

VIDEO & AUDIO

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream:2MP (1920×1080): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1 (720×576): Max. 30 fps

Corridor Mode

Supported

ROI

Supported

HLC/BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

Motion Detection

Up to 4 areas

Audio Compression

G.711U/G.711A

Two Way Audio

Supported

Behavior Detection

Intrusion, Crossing line, Motion detection

SMART

Intelligent Identification

Face detection, Audio detection, Defocus, Scene Change, Abandoned Object, Missing object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Network Protocols

IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G), API

Network

RJ45 10M/100M Base-TX Ethernet

INTERFACE

Audio I/O

1/1

Alarm I/O

1/1

BNC

Supported

GENERAL

Storage

Micro SD, Up to 256 GB

Alarm I/O

1/1

ANR

Supported

Power

12 V DC±25%, PoE (IEEE802.3 af)

Power consumption: Max 8.7W

Operating Temperature

-35°C ~ +60°C, Humidity: ≤95% RH (non-condensing)

Ingress Protection

IP67

Vandal Resistance

IK10

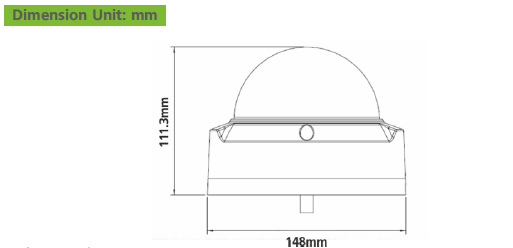

Dimensions

148x148x111.3mm

Weight

0.92kg

Reset Button

Supported
