Camera IP EYENOR ENC-HDOCH-10R-65 | Made in UK
12mp 10m Ir Ip Hemispheric Dome Camera
Overview
1/1.7″ Progressive Scan CMOS 12MP Resolution Unique De-warping Image Support Camera & Software De-warping, Low bitrate, Excellent low light performance 3D DNR, dWDR, ICR, HLC, BLC Smart IR Up to 10M 1/1 Audio In/Out (Built in Mic) Micro SD Memory, IP67, IK10, PoE
Specification
| Model | Model No. | ENC-HDOCH-10R-65 |
| Type | 12MP IR IP Hemispheric Dome Camera | |
|
Image Sensor |
1/1.7” Progressive Scan CMOS |
|
|
CAMERA |
Min. illumination |
Color :[email protected] (F1.2,AGC ON); B/W: 0 [email protected] (IR LED ON) |
|
Day/Night |
ICR |
|
|
Shutter Speed |
1/5s~1/20000s |
|
|
Auto Iris |
Fixed |
|
|
Wide Dynamic Range |
dWDR |
|
|
Digital Noise Reduction |
2D/3D |
|
|
Lens |
1.8 mm |
|
|
FOV |
360° |
|
|
IR LED |
6pcs |
|
|
IR Range |
Up to 10M |
|
|
IMAGE |
Video Compression |
H.265/H.264/MJPEG |
|
Bit Rate (CBR/VBR) |
Main stream: 500Kbps-16Mbps; Sub stream: 100Kbps-8Mbps |
|
|
Audio Compression |
G.711, RAW_PCM |
|
|
Max. Resolution |
4000*[email protected] |
|
|
Stream |
Stream1: 4000*[email protected], 4096*2160 /3840*2160 /3000*3000 / 2560*2560/ 1920*[email protected] Stream 2: 1280*960/D1/720*[email protected]; |
|
|
Image Setting |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
|
|
De-warping |
4PTZ, Fisheye, 180/360° Panorama |
|
|
HLC |
Yes |
|
|
9:16 Corridor mode |
N/A |
|
|
DIS |
Support |
|
|
ROI |
Support |
|
|
Defog |
Support |
|
|
Network Protocols |
Ipv4, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP, IGMP, Unicast and Multicast |
|
|
NETWORK |
Alarm Trigger |
Motion detection, Network disconnect, Disk alarm, I/O Alarm |
|
RTSP Video |
Standard RFC2326, Support QuickTime / VLC Player. |
|
|
Security |
User security authentication, Reset, Hardware Watch Dog |
|
|
Web Language |
English, Portuguese, Spanish, Russian, French, Czech, Hungarian |
|
|
System Compatibility |
Onvif |
|
|
INTERFACE |
Ethernet |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
|
Microphone |
Yes (Built-in) |
|
|
Audio I/O |
1ch Audio In,1ch Audio Out |
|
|
Alarm I/O |
1ch Alarm In,1ch Alarm Out |
|
|
RS485 |
N/A |
|
|
BNC Output |
N/A |
|
|
Reset Button |
Yes |
|
|
Edge Storage |
Micro SD/SDHC/SDXC slot, Max 128GB |
|
|
GENERAL |
Power Supply |
DC12V/PoE (AC24V Optional) |
|
Power Consumption |
5W(IR LED OFF); 8W(IR LED ON) |
|
|
Operating Temperature |
Starting Temperature: -30 °C~ 60 °C |
|
|
Operating Humidity |
0% – 90% RH |
|
|
Ingress Protection |
IP67 |
|
|

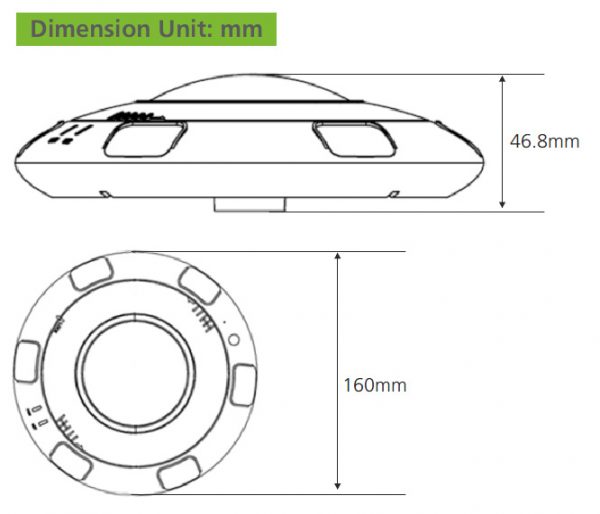

Product Dimensions |
160x160x46.8mm |
|
|
Weight |
0.70Kg |
Ordering Information
| Part Number | Description | Standard Quantity |
|
ENC-HDOCH-10R-65 |
12MP IR IP Hemispheric Dome Camera with 1.8mm Fisheye lens, PoE, SD Card slot, 1 Analytic features and 10M IR support |
1 |
Downloads
| Datasheet | 200.05KB | DOWNLOAD |
