Camera IP EYENOR ENC-HHP7Z-250R-20 | Made in UK

MODEL

Model No.

ENC-HHP7Z-250R-20

Type

4MP IR IP H.265 High Speed PTZ Dome Camera

CAMERA

Image sensor

1/1.8″, 4.0 Megapixel, Progressive scan, CMOS

Lens

5.7 ~ 216.6mm, Automatic focusing and motorized zoom lens

Angle of View (H)

58.5° ~ 2.1°

Shutter

Auto/Manual,1~1/100000s

Minimum Illumination

Color: 0.0005Lu×@ F1.3, 0 Lux with IR on

AGC

Auto/Manual

IR Range

Up to 250M IR Range

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>55dB

WDR

120 dB

Defog

Digital & Optical Defog

VIDEO & AUDIO

Max. Resolution

2688 x 1520

Video Compression

H.265+,H.265, H.264, MJPEG

Frame Rate

Main Stream: 4MP (2688*1520), Max 60fps;
Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps

Video Streaming

Triple

HLC/BLC

Supported

EIS

Supported

OSD

Upto 8 OSDs

ROI

Up to 8 areas

Motion Detection

 Up to 4 areas

Privacy Mask

 Up to 24 areas

Audio Compression

G.711U/G.711A

Two-way Audio

Supported

Audio I/O

1/1

Alarm I/O

2/1

SMART

Behavior Detection

Intrusion, Crossing line, Motion detection, Auto tracking

Intelligent Identification

Face detection, Defocus, Scene Change, Abandoned object, Missing object

Statistical Analysis

People counting

 General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Protocols

IPV4, IPV6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

Compatibility

ONVIF(Profile S/G), API

Network

1 RJ45 10M/100M Base-TX Ethernet

PAN & TILT

Pan Range

360° (endless)

Pan Speed

Manual: 0.1°/s ~ 74°/s; Preset: 300°/s

Tilt Range

–20° ~ +90° (auto flip)

Tilt Speed

Manual: 0.1°/s ~ 74°/s; Preset: 240°/s

Number of Presets

1024

Patrol

Preset patrol, Route patrol, Recorded patrol

Home Position

Supported

GENERAL

Power

24 V AC, 24 V DC, PoE++ (IEEE802.3bt PSE Required)
Power consumption: 16~51W

Working Environment

-40°C ~ +70°C, Humidity ≤ 95% RH(non-condensing)

Edge Storage

Micro SD upto 256 GB

Network Storage

ANR

Reset Button

Support

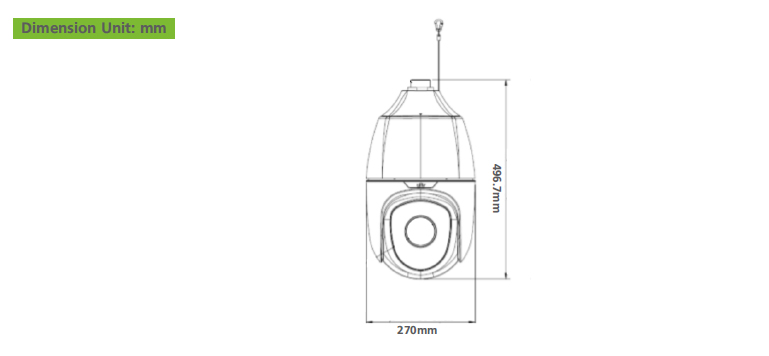

Dimensions

270×270×496.7mm

Weight

9.69Kg
