Camera IP EYENOR ENC-HHP6Z-200R-13 | Made in UK

MODEL

Model No.

ENC-HHP6Z-200R-13

Type

3MP IR IP H.265 High Speed PTZ Dome Camera

Image sensor

1/2.8″, Progressive scan, 3.0 Megapixel, CMOS

CAMERA

Lens

4.5 ~ 148.5mm, Automatic Focus and Motorized Zoom Lens

Digital Zoom

16X

Optical Zoom

33X

Angle of View (H)

58.7° ~2.9°

Shutter Speed

Auto/Manual; shutter time: 1 ~ 1/100000 s

Minimum Illumination

Colour: 0.003Lux @F1.6
BW: 0Lux with IR

AGC

Auto/Manual

Iris

Auto/Manual,F1.6 ~ F5.3

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>55dB

IR Range

UP to 200M

Defog

Digital Defog

WDR

120dB

VIDEO

 Max Resolution

 2048×1536

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream:3MP (2048×1536):Max.30 fps;
Sub Stream:2MP (1920×1080):Max. 60 fps;
Third Stream: D1 (720×576): Max. 60 fps

HLC/BLC/EIS

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 24 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

 Audio Compression

 G.711U/G.711A

Two-way Audio

 Supported

Behavior Detection

Intrusion, Cross line, Motion detection, Auto tracking

SMART

Intelligent Identification

Face detection, Audio detection, Missing Object, Abandoned Object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Protocols

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,
SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G)

Network

RJ45 10M/100M Base-TX Ethernet

INTERFACE

Audio I/O

1/1

Alarm I/O

2/1

Serial Port

1 RS485

BNC

Supported

PAN & TILT

Pan Range

360° (endless)

Pan Speed

0.1°/s ~ 240°/s,Preset speed: 300°/s

Tilt Range

–15° ~ +90° (auto flip)

Tilt Speed

0.1° ~ 160°/s,Preset speed: 240°/s

Number of Presets

1024

Home Position

Supported

GENERAL

Power

AC 24V (Default)±25%, DC 24V±25%

Power consumption: 11 ~ 47W

Storage

Micro SD, up to 256 GB

Network Storage

ANR

Working Environment

-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

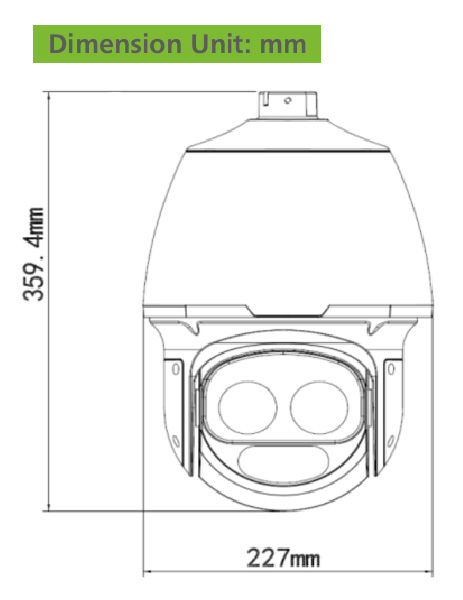

Dimension

 227x227x359.4 mm

Weight

5.5Kg

Ingress Protection

IP66

Reset Button

Supported
