Camera IP EYENOR ENC-HHPAZ-200R-20 | Made in UK

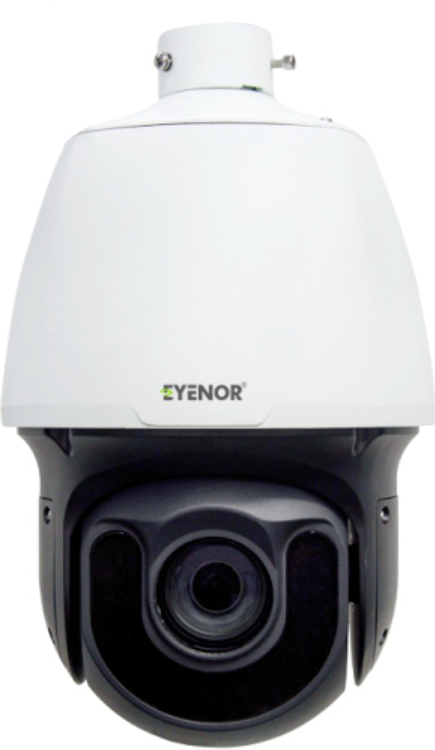

4K Ultra HD Network IR PTZ Dome Camera
Overview
Day/night functionality,Smart IR, up to 30M,22X Optical Zoom,Optical glass window, IR anti-reflection window, 2D/3D DNR, H.265+, H.265, H.264, MJPEG, Effective heat dissipation with Intelligent temperature control, Triple streams, EIS, ONVIF (Profile S/G), IP66
Specification
|
MODEL |
Model No. |
ENC-HHPAZ-200R-20 |
|
Type |
4K ULTRA-HD NETWORK IR PTZ DOME CAMERA |
|
|
CAMERA |
Image sensor |
1/1.8″, 8.0 Megapixel, Progressive scan, CMOS |
|
Lens |
6.5~ 143 mm (22x optical zoom) , AF automatic focusing and motorized zoom lens |
|
|
Angle of View (H) |
58.9°~3.4° |
|
|
Shutter |
Auto/Manual,1~1/100000s |
|
|
Min. Illumination |
Color: 0.003 Lu× @ F1.5 |
|
|
AGC |
Auto/Manual |
|
|
IR Range |
Up to 200m |
|
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
|
S/N |
>55dB |
|
|
WDR |
120dB |
|
|
Digital Noise Reduction |
2D/3D |
|
|
VIDEO & AUDIO |
Max. Resolution |
3840 x 2160 |
|
Video Compression |
H.265+, H.265, H.264, MJPEG |
|
|
Frame Rate |
Main Stream:8MP(3840 × 2160): Max.30fps, 2MP(1920×1080)@30fps;Sub Stream:2MP(1920×1080) : Max. 25fps; |
|
|
Video Streaming |
Triple |
|
|
OSD |
Up to 8 OSDs |
|
|
ROI |
Up to 8 areas |
|
|
HLC/BLC |
Supported |
|
|
EIS |
Supported |
|
|
Motion Detection |
Up to 4 areas |
|
|
Privacy Mask |
Up to 24 areas |
|
|
NETWORK |
Protocol |
IPv4, IPv6 IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,SMTP, 802.1x |
|
Compatibility |
ONVIF (Profile S/G), API |
|
|
Network |
1 RJ45 10M/100M Base-TX Ethernet | |
|
GENERAL |
Power |
24 V AC±25%, 24 V DC±25%, PoE Power consumption: 9~60W |
|
Working Environment |
-40°C ~ +70°C, Humidity ≤ 95% RH(non-condensing) |
|
|
Ingress Protection |
IP66 |
|
|
Reset Button |
Support |
|
|
Dimensions |
227×227×359.4mm |
|
|
Weight |
5.55 Kg |
|
Ordering Information
| Part Number | Description | Standard Quantity |
|
ENC-HHPAZ-200R-20 |
8MP IR IP H.265 High Speed PTZ dome camera with 22X Optical zoom, POE,WDR,Micro SD card slot, Smart analytics and 200M IR support |
1 |
Downloads
| Datasheet | 527.69KB | DOWNLOAD |
