Camera IP EYENOR ENC-HHPCZ-250R-15 | Made in UK

MODEL

Model No.

ENC-HHPCZ-250R-15

Type

12MP IR IP H.265 High Speed PTZ Dome Camera

CAMERA

Image sensor

1/1.7″ progressive scan, 12.0 megapixel, CMOS

Lens

6.5~ 143 mm (22x optical zoom)

Angle of View (H)

56.7° (wide) ~ 3.07° (tele)

Iris

Auto/Manual, F1.5 ~ F3.4

Shutter Speed

Auto/Manual, shutter time: 1/6 s ~ 1/8000 s

Min. Illumination

Colour: 0.01 lux (F1.5,AGC ON) 0 lux with IR

S/N Ratio

>55dB

Digital Noise reduction

2D/3D DNR

Day/Night

IR-cut filter with auto switch (ICR)

IR Range

UP to 250M

Defog

Digital Defog

WDR

dWDR

VIDEO & AUDIO

Video Compression

Ultra 265,H.265, H.264, MJPEG

Frame Rate

Main Stream: 12 MP(4000×3000):Max.20 fps, 8MP(3840 × 2160): Max.25fps, 2MP(1920×1080)@30fps;

Sub Stream: 2MP(1920×1080) : Max. 30fps; Third Stream: D1 (720×576): Max. 30fps

HLC

Supported

BLC

Supported

ROI

Up to 8 areas

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

Motion Detection

Up to 4 areas

Audio Compression

G.711

Two-way Audio

Supported

SMART

Behavior Detection

Intrusion, Cross line, Motion detection

Exception Detection

Audio detection

Intelligent Identification

Face detection, Defocus, Scene Change

Statistical Analysis

People counting

NETWORK

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

Compatible Integration

ONVIF (Profile S, Profile G), API

Pan Range

360°

PAN & TILT

Pan Speed

0.1°/s ~ 240°/s, Preset speed: 300°/s

Tilt Range

–15° ~ +90° (auto reverse)

Tilt Speed

0.1° ~ 160°/s, Preset speed: 240°/s

Number of Presets

1024

Patrol

Preset patrol, Route patrol, Recorded patrol

Auto Tracking

Supported

INTERFACE

Audio I/O

Audio cable, 1Input /1 Output

Alarm I/O

2/1

Serial Port

1 RS485

Network

1 RJ45 10M/100M Base-TX Ethernet

Video Output

1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

Power

24 V AC±25% (Default), 24 V DC±25%, Power Consumption: 16 W ~ 56 W

GENERAL

Working Environment

– 40°C ~ +70°C, Humidity:10%~ 95% RH (Non-condensing)

Edge Storage

Micro SD, Up to 128 GB

Network Storage

ANR

Ingress Protection

IP66

Weight

5.5Kg

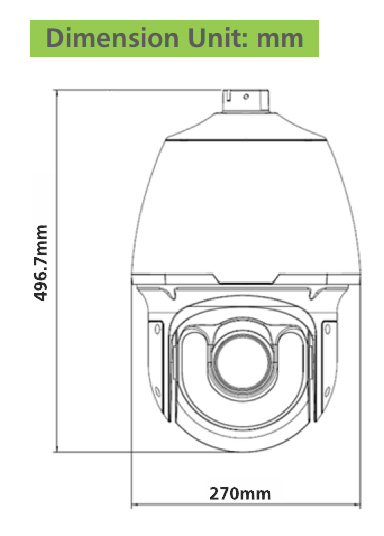

Dimensions

270x270x496.7mm
