Camera IP EYENOR ENV-HHP5Z-150R-15 | Made in UK

MODEL

Model No.

ENV-HHP5Z-150R-15

ENV-HHP5Z-150R-18

Type

2MP IR IP H.265 High Speed PTZ Dome Camera

CAMERA

Image sensor

1/2.8″ Progressive Scan CMOS

Focus Length

4.5 ~ 135 mm (30x Optical Zoom), Optional (4.3 ~ 129mm), Auto Focus

View Angle(H)

71.7°- 2.4°

Min.Illumination

Color [email protected], B/W 0Lux(IR ON)

AGC

Auto/Manual

Electronic Shutter

1~1/100000

Day & Night Mode

ICR Cut Filter, Auto Switch (ICR)

Digital Zoom

16x

IR Range

Up to 150M

S/N Ratio

>52dB

Defog

Digital Defog

WDR

120dB

VIDEO & AUDIO

Max.Resolution

1920×1080

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream: 2MP (1920*1080): Max. 30 fps,
Sub Stream: 2MP (1920*1080): Max. 30 fps;
Third Stream: D1(720*576) : Max. 30 fps

Video Streaming

Triple

HLC & BLC

Supported

EIS

Supported

ROI

Up to 8 areas

Privacy Masking

Up to 24 areas

OSD

 Up to 8 areas

Motion Detection

Up to 4 areas

Audio Compression

 G.711U/G.711A

Audio I/O

 1/1

Alarm I/O

 1/1

SMART

Behaviour Detection

Intrusion, Crossing line, Motion detection, Auto tracking

Intelligent Identification

Defocus, Scene Change, Abandoned Object, Missing Object

Statistical Analysis

Face detection, Audio Detection, People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Interface Protocol

RJ45 10Base-T/100Base-TX

Protocols

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF(Profile S,G), API

PTZ

Pan Range

Pan 0º to 360º(Endless)

Pan Speed

0.1º/s ~ 240º/s, Preset Speed : 300º/s

Tilt Range

–15° ~ 90° (auto Flip)

Tilt Speed

0.1° ~ 160°/s, Preset speed: 240°/s

Preset

1024

Home Position

Support

GENERAL

Power Supply

24 V AC, 24 V DC

24 V AC, 24 V DC, Hi-PoE (PSE Required)

 Power Consumption

 9 ~ 42W

Working Conditions

-40ºC ~ +65ºC, Humidity ≤ 95% (non-condensing)

 Ingress Protection

 IP66

 Edge Storage

Micro SD, Support upto 256GB

 ANR

 Supported

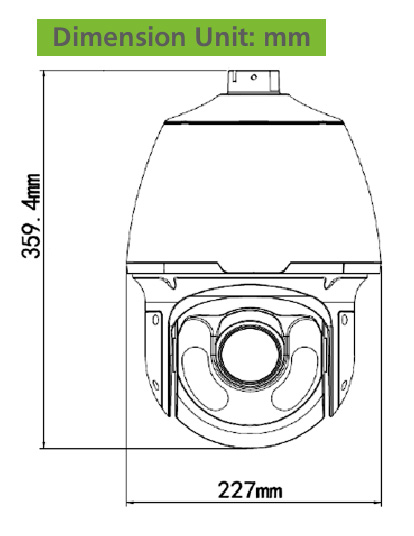

Dimension (mm)

227x227x359.4mm

Weight

5.28kg
