Camera IP EYENOR ENV-HPB7F-50R-18 | Made in UK

MODEL

Model No.

ENV-HPB7F-50R-18

Type

4MP IR IP H.265 PT Bullet Camera

Image Sensor

1/3″, Progressive scan, 4.0 Megapixel, CMOS

CAMERA

Lens

4.0mm (Optional 6mm)

Angle of View (H)

78.9° (49.9°)

Shutter

Auto/Manual, 1~1/100000 s

Min. Illumination

Color: 0.02Lu× (F2.0), 0 Lux with IR On

AGC

Auto/Manual

IR Range

Up to 50M

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>55dB

Defog

Digital Defog

Noise Reduction

2D/3D DNR

WDR

120dB

VIDEO & AUDIO

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream:4MP (2592×1520): Max. 20 fps, 4MP (2560×1440): Max. 25 fps, 3MP (2048×1520): Max. 30 fps;

Sub Stream:2MP (1920×1080): Max. 30 fps;

Third Stream:D1(720×576) : Max. 30fps

HLC/BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

Audio Compression

G.711U/G.711A

Two-way Audio

Supported

Audio I/O

1/1

Alarm I/O

2/1

SMART

Behavior Detection

Intrusion, Crossing line, Motion detection

Exception Detection

Audio detection

Intelligent Identification

Face detection, Defocus, Scene Change, Abandoned Object, Missing Object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Protocols

IPV6, IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible Integration

ONVIF (Profile S/G), API

Network

10M/100M adaptive Ethernet

STRUCTURE

Pan Range

250°

Pan Speed

0.1°/s ~ 15°/s

Preset speed: 15°/s

Tilt Range

-50° ~ 50°

Tilt Speed

0.1°/s ~5°/s

Preset speed: 5°/s

Number of Presets

400

Patrol

Up to 16 patrols, Up to 32 presets per patrol

GENERAL

Power Supply

12 V DC ±25%, PoE (IEEE802.3 af)

Power consumption: Max. 17.23W

Operating Temp

-35°C ~ 60°C, Humidity:: ≤95% RH (non-condensing)

Storage

Built-in 32GB eMMC

Ingress Protection

IP66

Network Storage

ANR

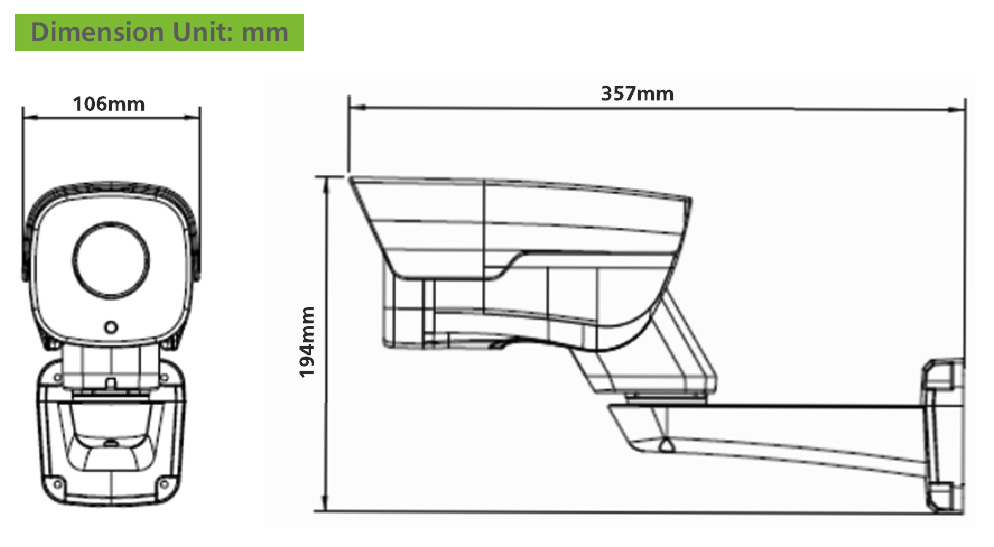

Dimensions

357x106x194mm

Weight

1.16Kg
