Antaira FCU-2802SC

10/100/1000TX To 1000SX Media Converter, Multi-Mode 550M, with SC Connector.

Mã: FCU-2802SC Danh mục: Media Converters Antaira Từ khóa: FCU-2802SC

Mô tả
Sản phẩm liên quan

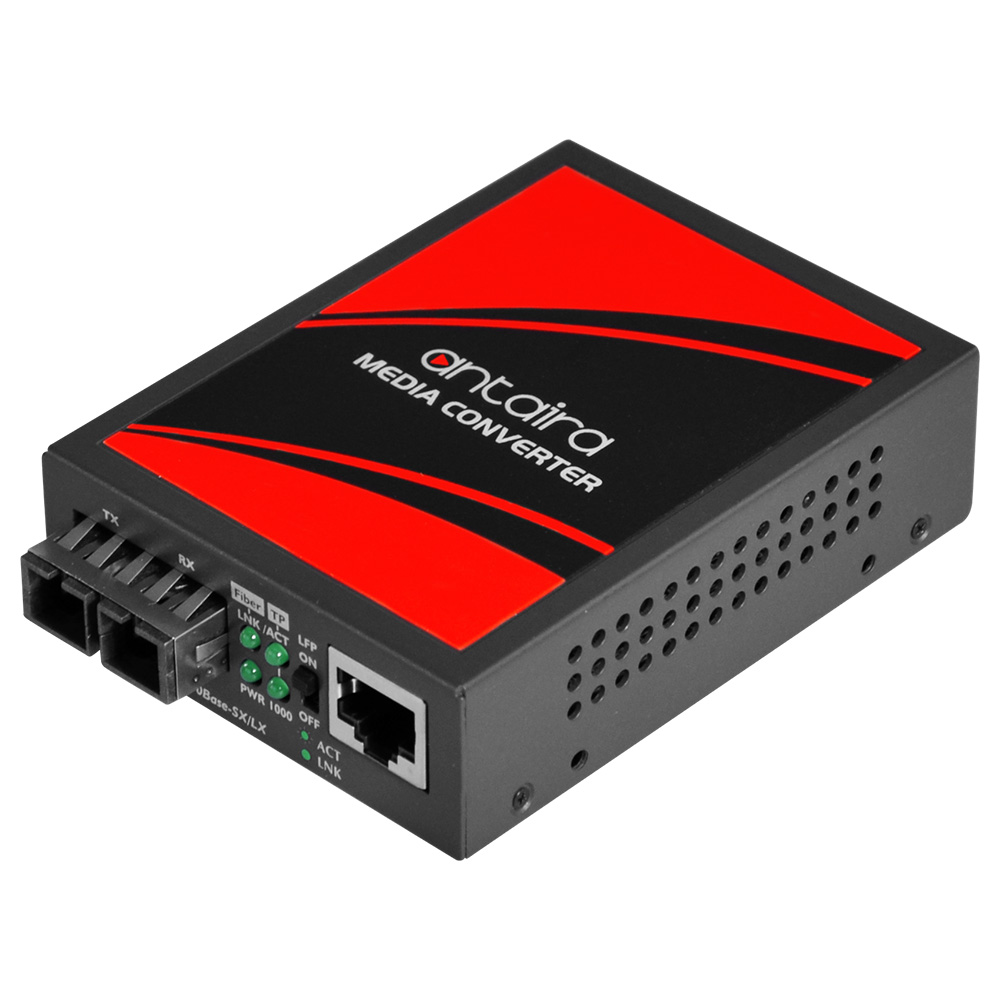

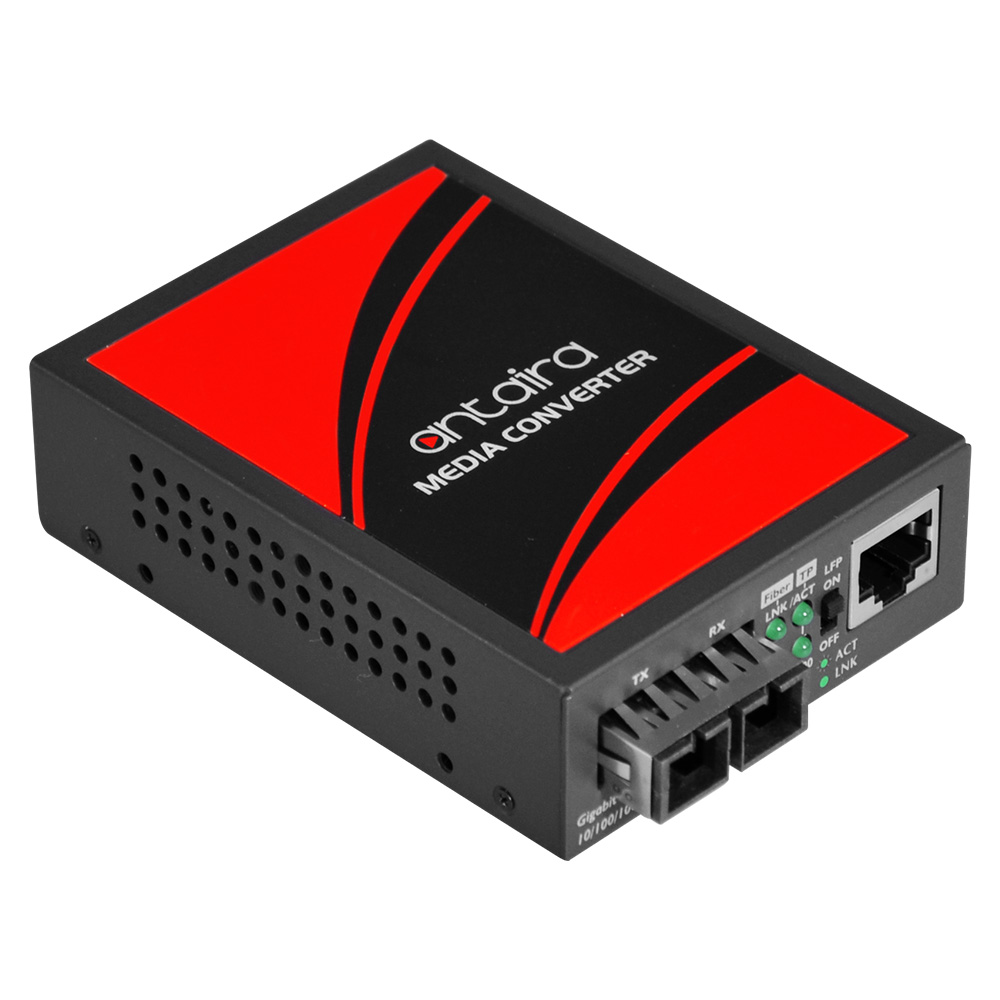

Antaira Technologies FCU-2802SC is a compact gigibit fiber to Eathernet Media converter housed in a metal case and conforms to the FCC emissions Standards. the FCU-2802SC features a standard SC fiber connector as well as the STP-RJ45 Ethernet conector. The
copper media converter is fully compliant with IEEE 802.3Z 1000Base-SX/LX and IEEE 802.3ab, 1000Baes-T. The LEDs provide indicators for Power, TP Link/ACT and Fiber Link/ACT. The FCU-2802SC is a gigabit media converter that will convert 10/100/1000 copper
to gigabit multimode fiber up to 550 meters.

Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3z
TP port supports 10/100/1000BaseT auto-negotiation
IEEE 802.3x Full-Duplex Flow Control and Back-Pressure in Half-Duplex
Supports Auto MDI/MDI-X function
Store-and-Forward mechanism
Non-blocking full wire-speed forwarding rate
Compact size for easy installation
2-Year Warranty

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x back pressure flow control
Ethernet Interface
Ethernet Port Count	1 port
10/100/1000 BASE-T(X)	10/100/1000BaseT: 1 × RJ45 Port
Fiber Interface
Fiber Port Count	1 port
1000 BASE-X Fiber	1000BaseX: 1 × SC Port
Wavelength	850nm
Transmission Distance	220 ~ 550 m
Other Interface
DIP Switch	LFP Function (Disable/Enable) Setting
LED Indicator	Power, TP Link/ACT, Fiber Link/ACT
Performance
Jumbo Frame	9K bytes
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Power Requirements

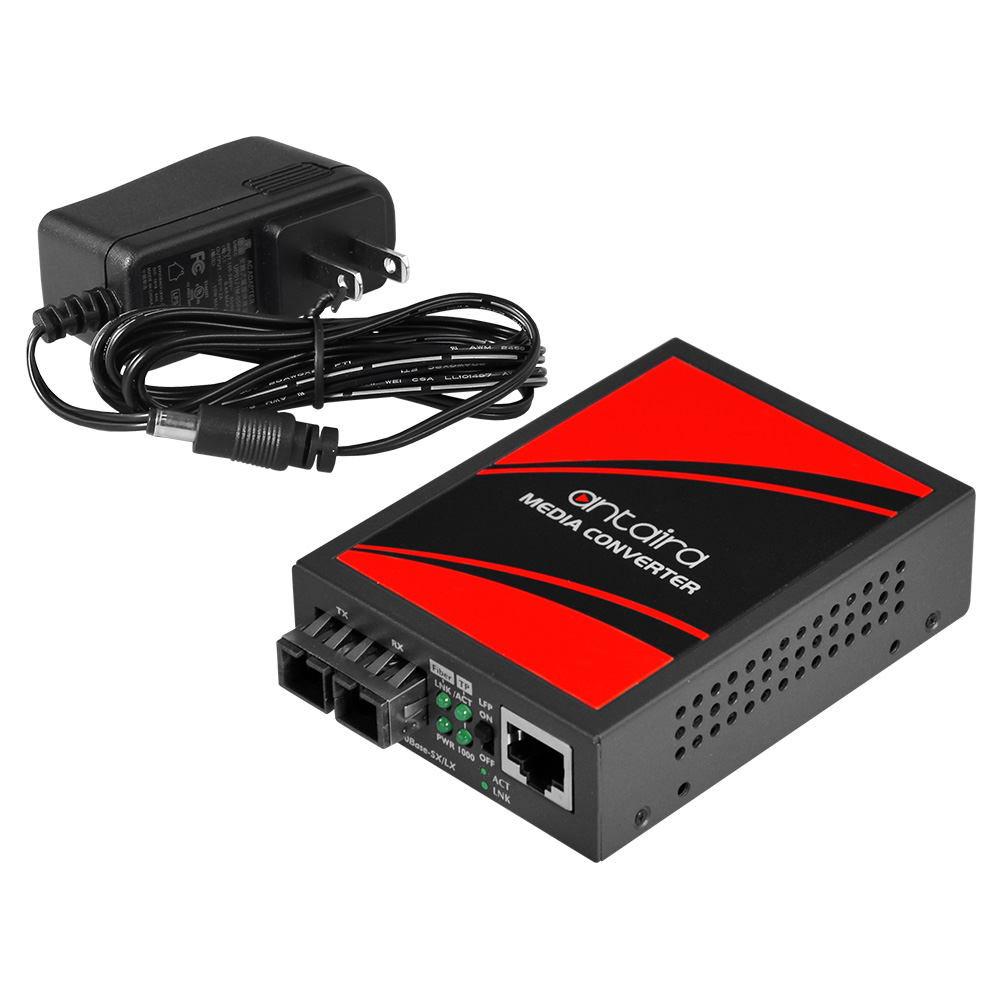

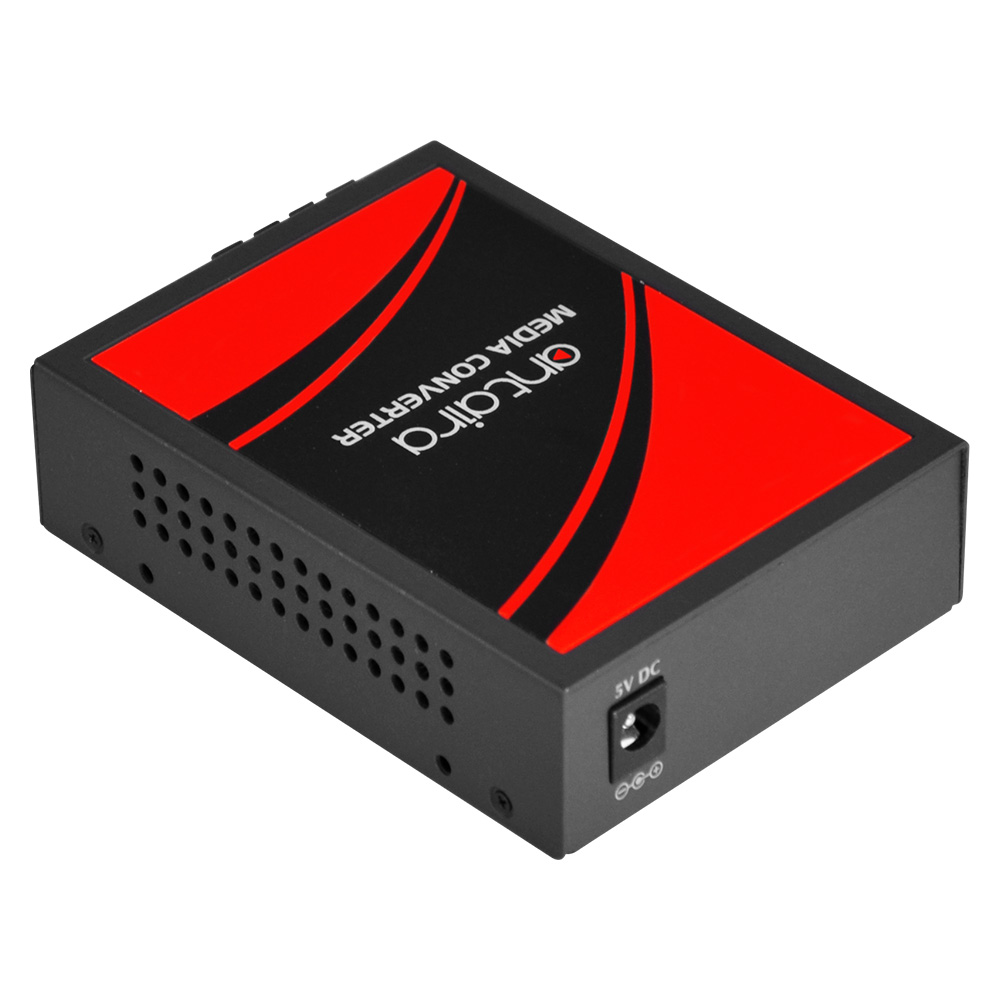

Power Connection	External power supply / DC Jack
Input Voltage	5V DC, 2A
System Power Consumption	5 WattsMax. / 17BTU/hr Max
Environmental Limits
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-10° to 70° C (14° to 158° F)
Ambient Relative Humidity	5% to 90% non-condensing
Mechanical Characteristics
Housing	Metal
Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	97 × 26 × 70 mm
Weight	200 g
Regulatory Approvals
Certifications	FCC, CE
EMI	FCC Part 15 Class A CE
Green	RoHS Compliant
Warranty	2 years
