Antaira FCU-3002A-SC-S1

10/100/1000TX To 1000LX Media Converter, Single-Mode 10km, with SC Connector.

Mã: FCU-3002A-SC-S1 Danh mục: Media Converters Antaira Từ khóa: FCU-3002A-SC-S1

Mô tả
Sản phẩm liên quan

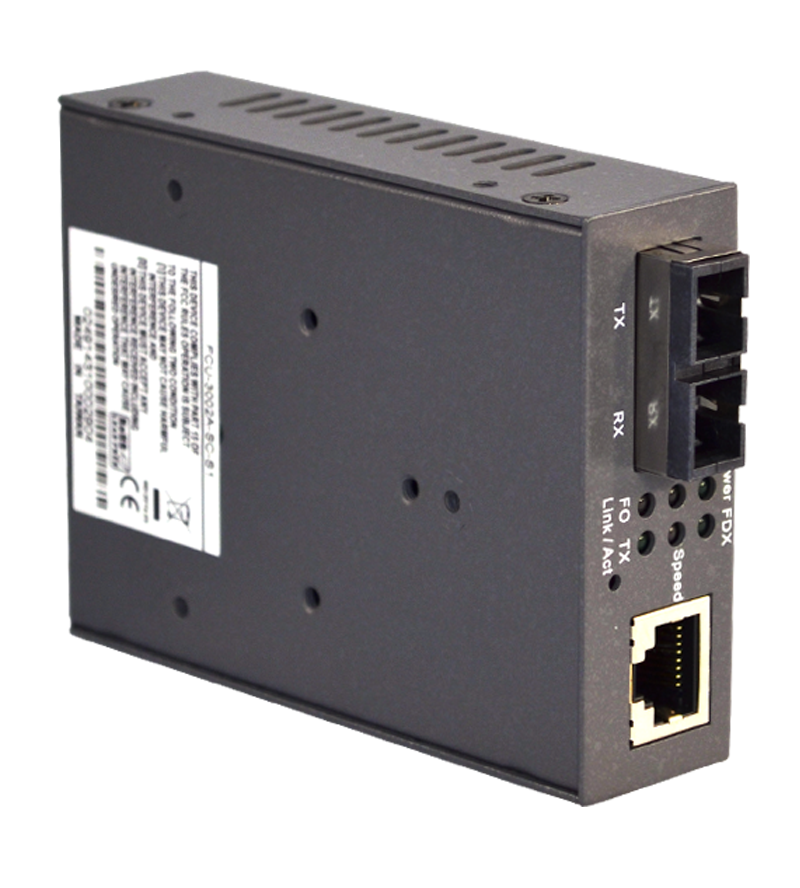

Antaira Technologies FCU-3002A-SC-S1 is a compact, single-mode Gigabit Ethernet converter. The FCU-3002A-SC-S1 will take 10/100/1000BaseT copper Ethernet and convert it to 1000BaseX fiber. The FCU-3002A-SC-S1 features a standard SC fiber connector as well
as the STP-RJ45 Ethernet connector. The copper media converter is fully compliant with IEEE 802.3z and 802.3u Fast Ethernet standers. The industrial media converter features LED diagnostics for power, activity, link and Full/Half Duplex operations. The FCU-3002A-SC-S1
gigabit media converter will use single mode 1310NM fiber with a SC connector and is capable of communication of up to 10 Kilometers.

Complies with IEEE 802.3/u/ab 10/100/1000BaseT
Complies with IEEE 802.3z 1000BaseX
Supports Jumbo Frame (9K bytes)
Store-and-Forward Switching Mechanism
Auto-Crossover for MDI/MDIX in TP Port
Auto-Negotiation in TP Port
Supports Flow Control
Supports Link Alarm
Supports Auto & Force Mode Configuration
5-Year Warranty

Technology
IEEE Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber
Processing Type	Store and Forward
Protocol	CSMA/CD
Flow Control	IEEE 802.3x back pressure flow control
Ethernet Interface
Ethernet Port Count	1 port
10/100/1000 BASE-T(X)	10/100/1000BaseT: 1 × RJ45 Port
Fiber Interface
Fiber Port Count	1 port
1000 BASE-X Fiber	1000BaseX: 1 × SC Port
Wavelength	1310nm
Transmission Distance	10 km
Tx Power	-9 ~ -3.0 dBm
Rx Sensitivity	-21.0 dBm
Link Budget	12.0 dB
Other Interface
LED Indicator	Power, FDX, Status, Speed, FO Link/ACT, TX Link/ACT
Performance
MAC Table Size	1K
Jumbo Frame	9K bytes
Memory Buffer	128 kbits
Transfer Rate	14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port 1,488,000pps for Gigabit Ethernet Port
Power Requirements

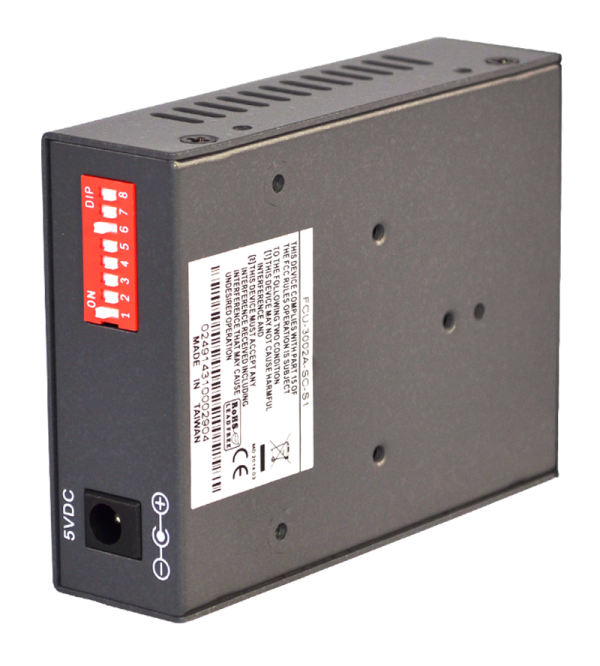

Power Connection	External power supply / DC Jack
Input Voltage	5V DC, 1.5A
System Power Consumption	6 Watts
Environmental Limits
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Ambient Relative Humidity	5% to 90% non-condensing
Mechanical Characteristics
Housing	Metal
Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	71 × 26 × 94 mm (2.80 × 1.02 × 3.70 inches)
Weight	0.6 kg
Regulatory Approvals
Green	RoHS Compliant
Warranty	5 years
