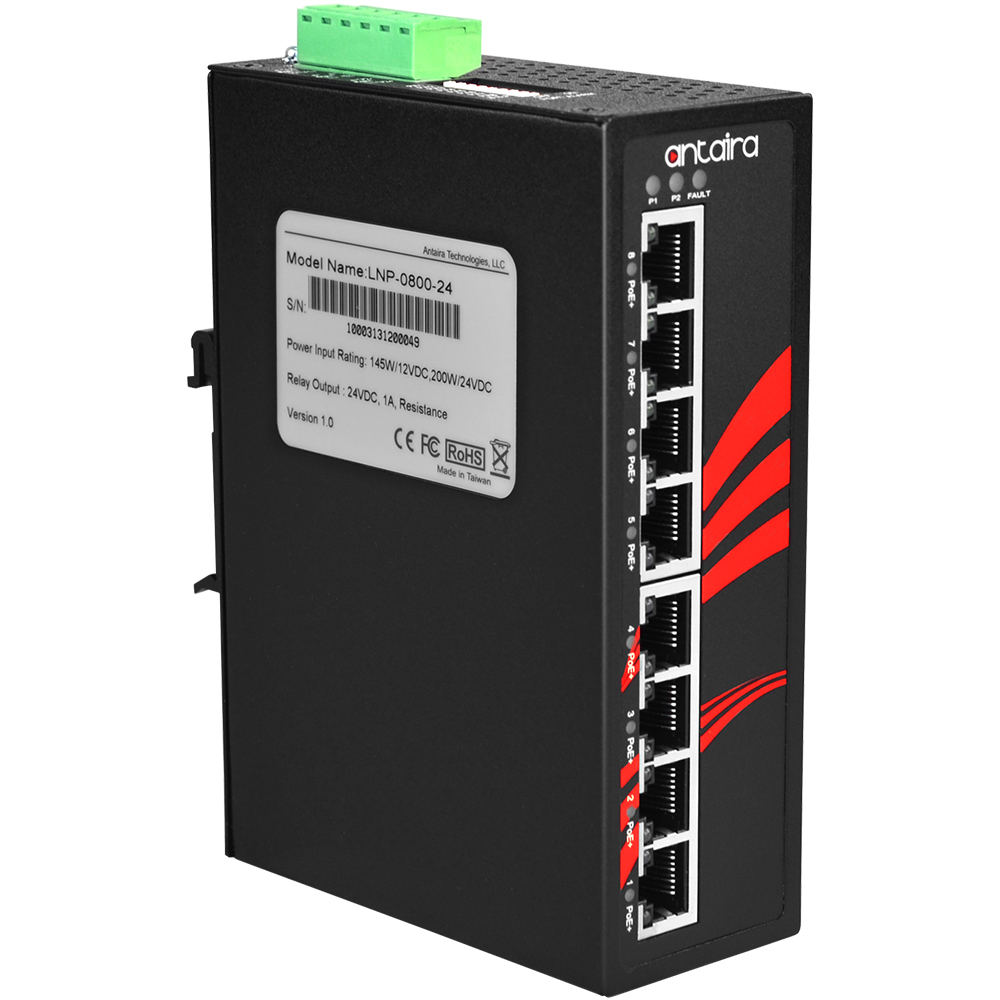

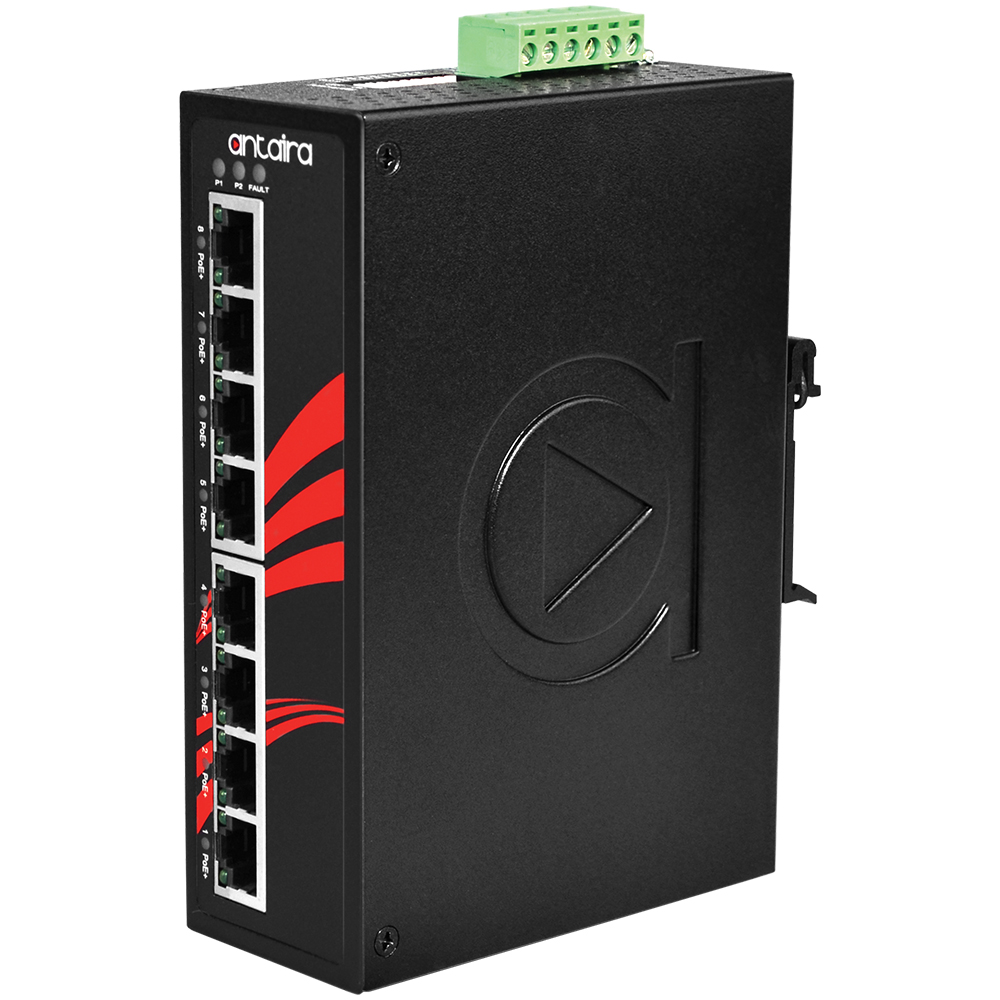

Antaira LNP-0800-24-T
Antaira’s LNP-0800 is a smart 8-port Industrial Unmanaged Ethernet Switch that supports IEEE-802.3at (Power-over-Ethernet Plus) on ports 1 to 8. This switch is classified as power sourcing equipment (PSE), and when used in this way, LNP-0800 enables centralization
of the power supply and provides up to 30 watts of power per port. LNP-0800 can be used to power IEEE 802.3af or 802.3at compliant power devices (PD), eliminating the need for additional wiring, and supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or
half duplex, and MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks
occur.
- Network broadcast storm protection
- 8-Port IEEE 802.3at compliant PoE+ Function with 30W/Port
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 2K MAC Address Table
- Surge Protection: 2,000 VDC support
- ESD Protection: 6,000 VDC support
- Redundant Power Input Design – 12~36VDC
- Built-in 1 relay output for Port Break Alarm
- IP30 Rugged Aluminum Case Design

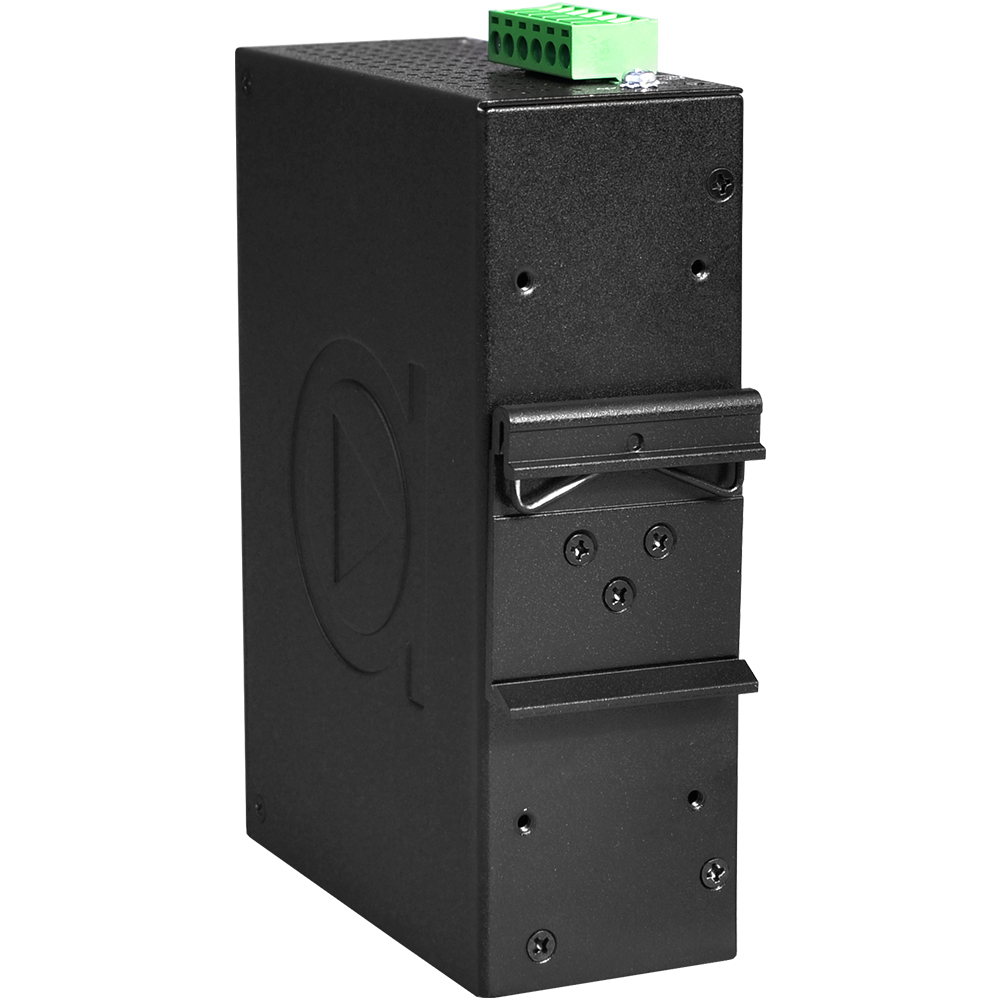

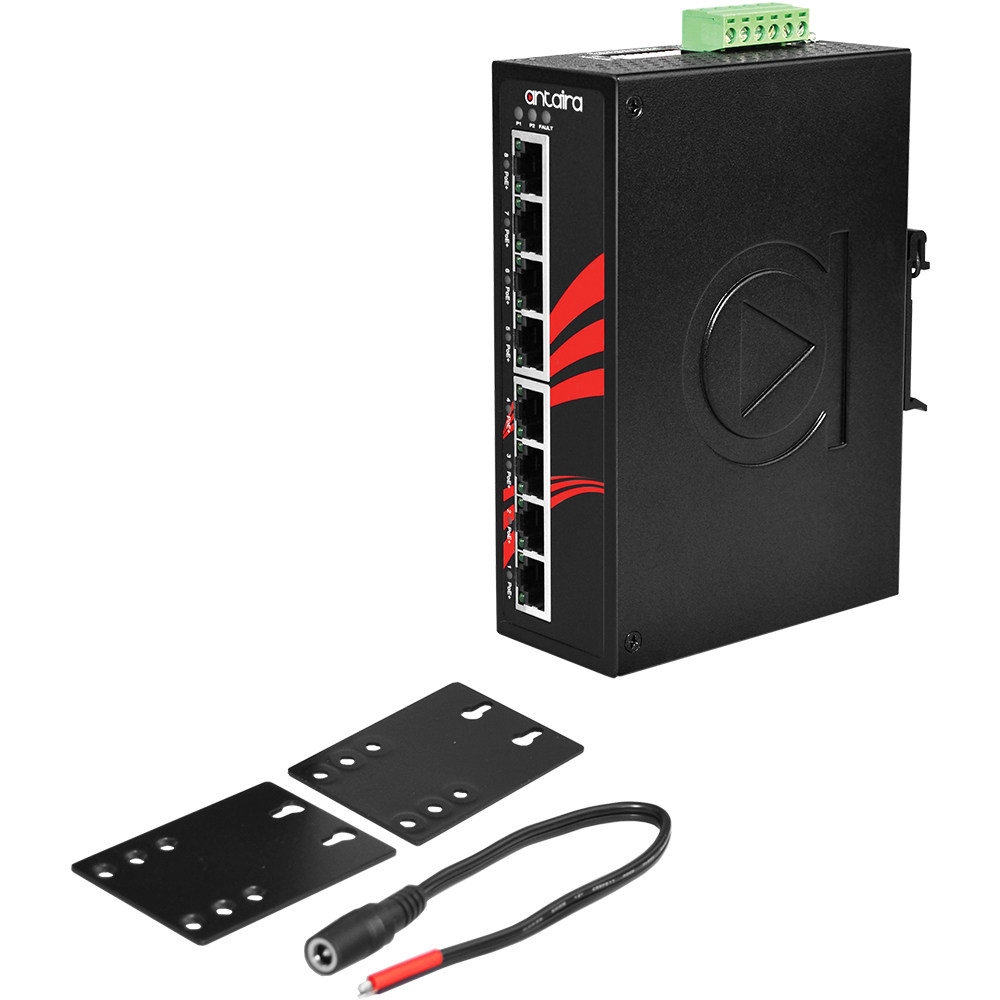

- DIN-Rail and Wall Mount support
- Operating Temperature range – STD: -10° to 70° C, EOT: -40° to 75° C
- 5-Year Warranty
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3af/at Power over Ethernet |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 8 ports |
| 10/100 BASE-T(X) | 8 ports |
| PoE Port | 8 ports (30W/port) |
| PoE Pin Assignment | V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) |
| Performance | |
| MAC Table Size | 2K |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 1.6Gbps |
| Power Requirements | |
| Power Connection | Removable 4-contact terminal block |
| Input Voltage | 12V–36V DC, Redundant Input |
| Power Redundancy | Yes |
| Relay Output | 24V DC, 1A resistive |
| System Power Consumption | 10 Watts |
| Max. PoE Power Budget | 240 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -40° to 75° C (-40° to 167° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |
| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 46 × 142 × 99 mm |
| Weight | Unit weight : 1.68 lbs Shipping weight : 2.0 lbs |
| Regulatory Approvals | |
| Certifications | FCC, CE |
| UL 508 | ✔ |
| ISA 12.12.01 (UL C1D2) | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHs Compliant |
| Warranty | 5 years |
