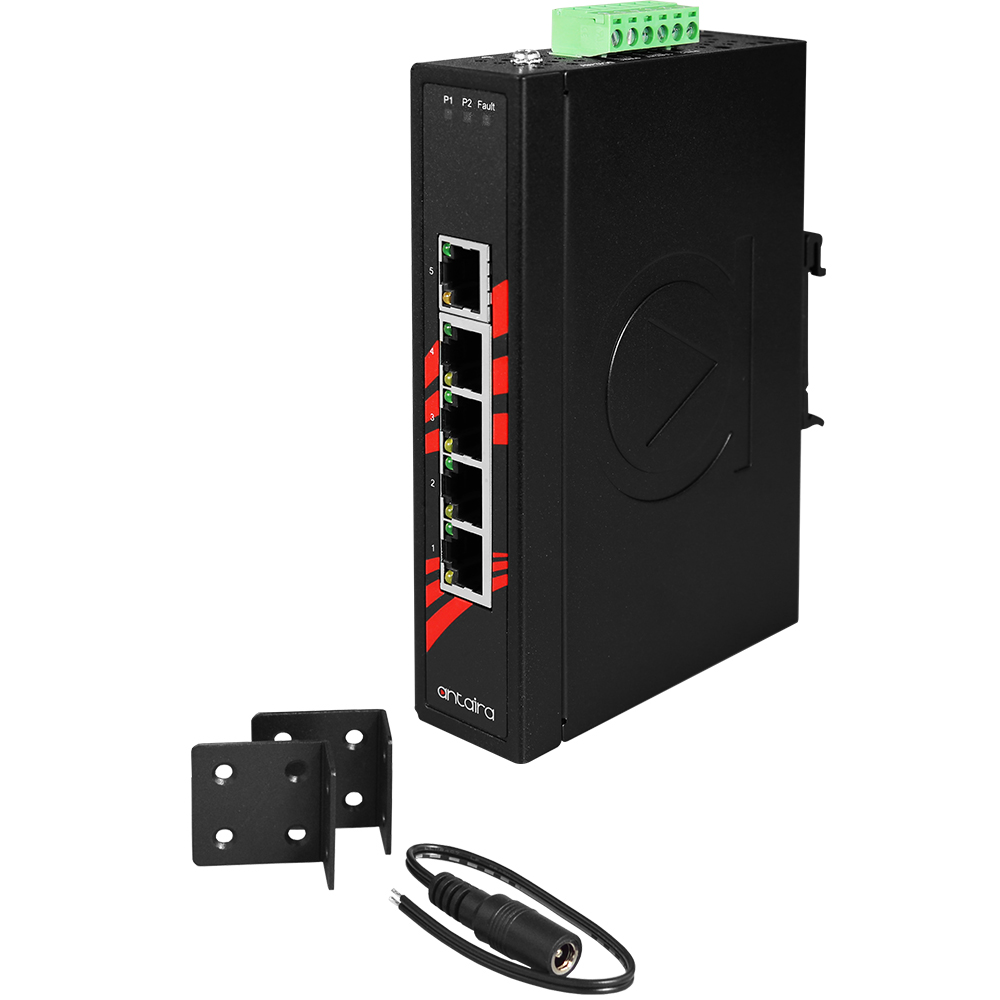

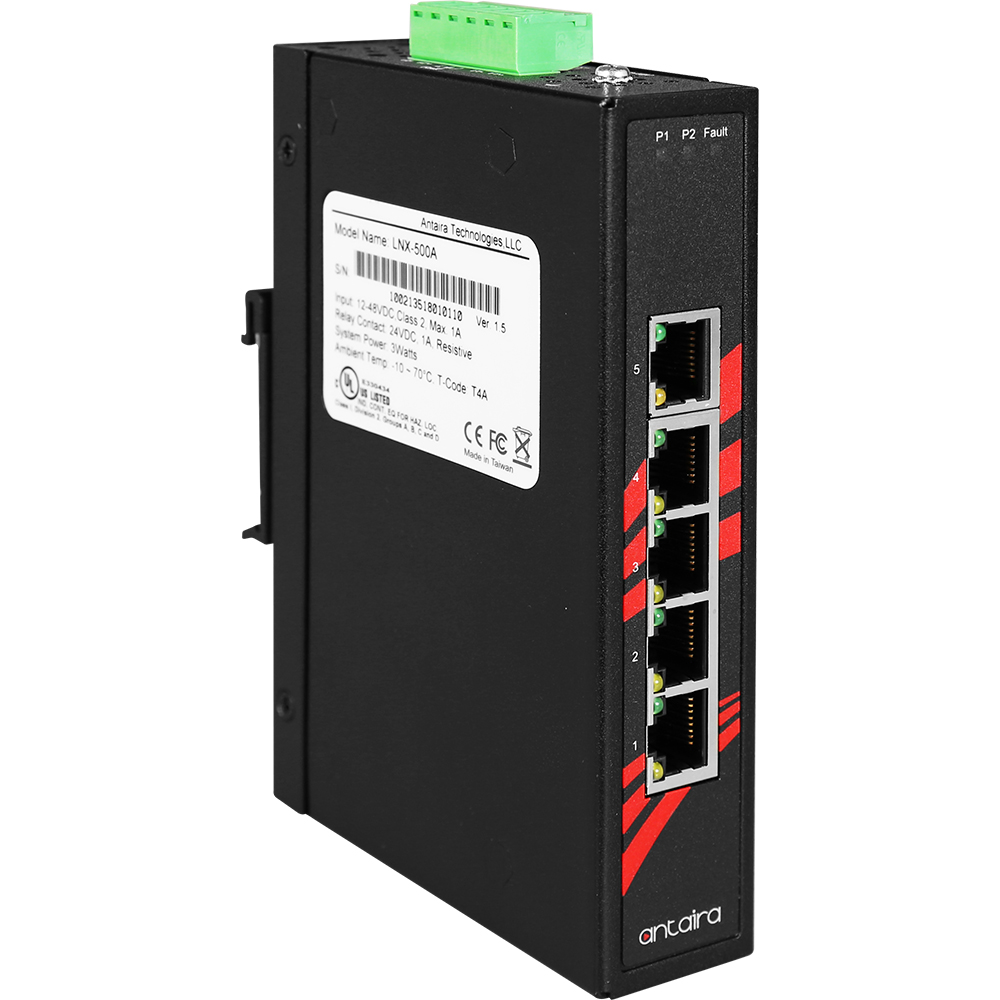

Antaira LNX-500A
Antaira Technologies LNX-500A industrial unmanaged Ethernet switch is a leading low price solution for all automation or industrial networking projects. This Fast Ethernet supporting 5-port switch supports 10/100 Mbps Auto-Negotiation and has a wide DC power
input design (12 – 48VDC) to allow for all types of applications such as on-vehicle or panel designs. Each port on LNX-500A has two LED lights to easily indicate link status and transmission speed. This ruggedized unmanaged Ethernet switch also supports Auto
MDI/MDI-X function and is also UL Class 1, Division 2 certified for oil and gas applications. LNX-500A is packaged in a slim and compact size while being secured in a rugged IP-30 case that is DIN-RAIL ready for industrial applications.
- Industrial Unmanaged Ethernet Switch
- Store and Forward Switching Architecture
- Flow Control on Full-Duplex
- Back Pressure on Half-Duplex
- Supports Auto MDI/MDI-X Function
- Wide-Ranging Redundant Power Design
- UL Class I, Division 2 Certified

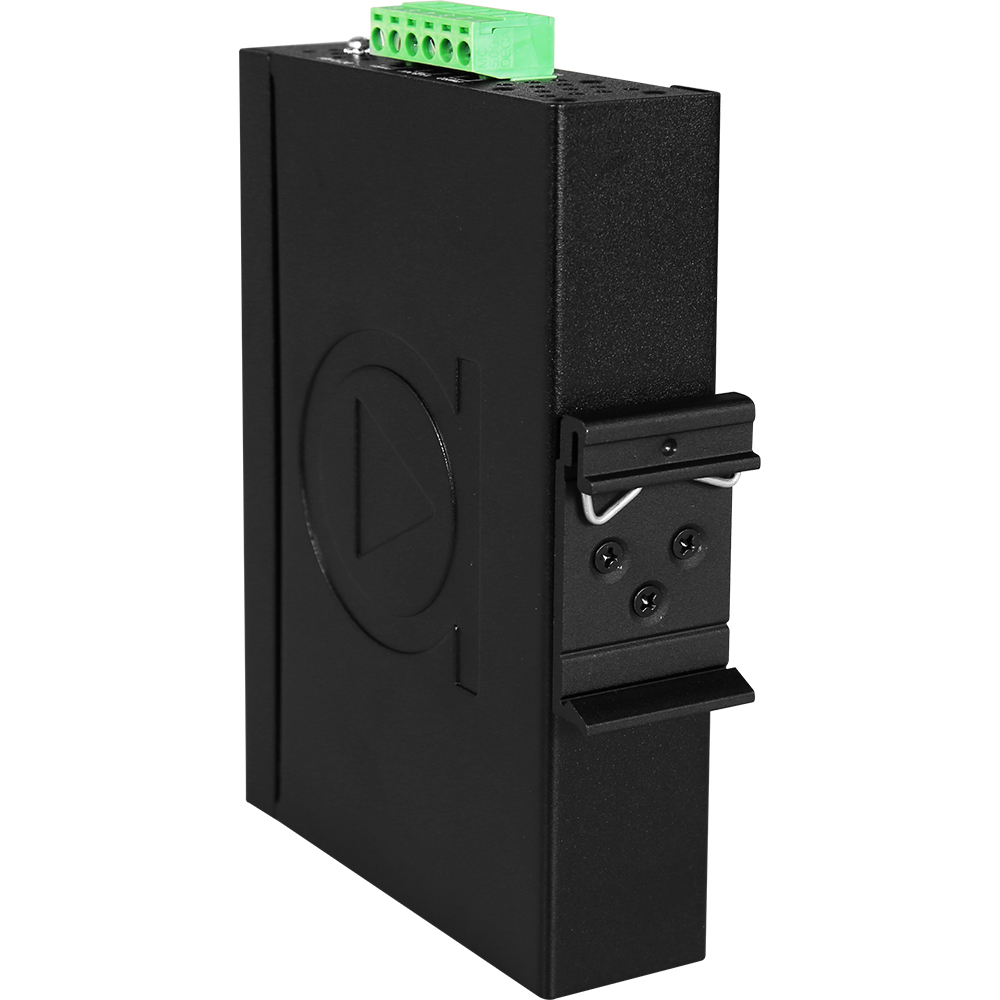

- DIN-Rail and Wall Mount Design
- Slim IP-30 Case Design
| Technology | |
| IEEE Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3x Flow Control |
| Processing Type | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Ethernet Interface | |
| Ethernet Port Count | 5 ports |
| 10/100 BASE-T(X) | 5 ports |
| Performance | |
| MAC Table Size | 1K |
| Memory Buffer | 512kbits |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| Switching Architecture | Back-Plane (Switching Fabric): 1Gbps |
| Power Requirements | |
| Power Connection | Removable 6-contact terminal block |
| Input Voltage | 12V–48V DC, Redundant Input |
| Power Redundancy | Yes |
| System Power Consumption | 2.93 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Environmental Limits | |
| Operating Temperature | -10° to 70° C (14° to 158° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Ambient Relative Humidity | 5% to 95% non-condensing |
| Mechanical Characteristics | |
| Housing | Metal, IP30 protection |
| Mounting | DIN-Rail mount, Wall mount (Optional) |
| Dimensions (W × H × D) | 30 × 140 × 95 mm |
| Weight | Unit weight : 1.0 lbs Shipping: 1.5 lbs |
| Regulatory Approvals | |
| UL 60950-1 | ✔ |
| ISA 12.12.01 (UL C1D2) | ✔ |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A EN 61000-6-4 Class A |
| EMS | CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| Stability Testing | Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
| Green | RoHS Compliant |
| Warranty | 5 years |
