NAS Synology DS1515

Mã sản phẩm: DS1515

Mô tả: High-performance and reliable. Ready for your growing needs.

Xuất xứ: Taiwan

Bảo hành: 12 tháng

Mã: DS1515 Danh mục: NAS Synology Từ khóa: DS1515

Mô tả
Sản phẩm liên quan

Featuring a quad-core processor, hardware encryption engine, and floating-point unit, DS1515 is a powerful, expandable 5-bay NAS server that delivers outstanding data transmission speed. With built-in four Gigabit LAN ports featuring failover and Link Aggregation, plus High Availability and SSD read/write cache support, DS1515 offers the reliable storage solution at a cost-effective price point for your growing needs.

Powered by a quad-core CPU combined with 2GB of DDR3 RAM, DS1515 delivers outstanding performance over 403.77 MB/s reading and 421.85 MB/s writing¹ with Link Aggregation enabled. Powerful hardware enables DS1515 to deal with considerable amounts of data processing requests and provide consistently high throughput to all connected clients.

Hardware Specifications
CPU
CPU Model	Annapurna Labs Alpine AL-314
CPU Architecture	32-bit
CPU Frequency	Quad Core 1.4 GHz
Floating Point
Hardware Encryption Engine
Memory
System Memory	2 GB DDR3
Storage
Drive Bay(s)	5
Maximum Drive Bays with Expansion Unit	15
Compatible Drive Type (See all supported drives)	3.5″ SATA III / SATA II HDD 2.5″ SATA III / SATA II HDD 2.5″ SATA III / SATA II SSD
Maximum Internal Raw Capacity	40 TB (8 TB HDD x 5) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units	120 TB (8 TB HDD x 15) (Capacity may vary by RAID types)
Maximum Single Volume Size	108 TB
Hot Swappable Drive
External Ports
USB 3.0 Port	2
eSATA Port	2
File System
Internal Drives	EXT4
External Drives	EXT4 EXT3 FAT NTFS HFS+
Appearance
Size (Height x Width x Depth)	157 mm x 248 mm x 233 mm
Weight	4.15 kg
Others
RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)
Wake on LAN/WAN
System Fan	80 mm x 80 mm x 2 pcs
Fan Speed Mode	Cool Mode Quiet Mode
Easy Replacement System Fan
Wireless Support (dongle)
Power Recovery
Noise Level*	22.4 dB(A)
Scheduled Power On/Off
Power Supply Unit / Adapter	200W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	32.3 W (Access) 18.2 W (HDD Hibernation)
British Thermal Unit	110.21 BTU/hr (Access) 62.10 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature	5°C to 35°C (40°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	FCC Class B CE Class B BSMI Class B
Warranty	3 Years
Notes	Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications
Storage Management
Maximum Internal Volume Number	256
Maximum iSCSI Target Number	32
Maximum iSCSI LUN	256
iSCSI LUN Clone/Snapshot, Windows ODX
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6
Volume Expansion by Adding a HDD	Synology Hybrid RAID RAID 5 RAID 6 JBOD
Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
SSD Support
SSD Read/Write Cache
File Sharing Capacity
Maximum User Accounts	2048
Maximum Groups	256
Maximum Shared Folder	256
Maximum Shared Folder Sync Tasks	4
Maximum Concurrent CIFS/AFP/FTP Connections	512
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
High Availability Manager
Log Center
Syslog Events per Second	400
Add-on Packages
Central Management System
Cloud Station Server
Maximum Concurrent File Transfers	512
Download Station
Maximum Concurrent Download Tasks	50
HiDrive Backup
Media Server
DLNA Certification
PDF Viewer
SpreadSheet
Maximum Simultaneous Editing Users	90
Surveillance Station
Maximum IP cam (Licenses required)	30 (including 2 Free License)
Total FPS (H.264)*	900 FPS @ 720p (1280×720) 300 FPS @ 1080p (1920×1080) 200 FPS @ 3M (2048×1536) 150 FPS @ 5M (2591×1944)
Total FPS (MJPEG)*	250 FPS @ 720p (1280×720) 120 FPS @ 1080p (1920×1080) 100 FPS @ 3M (2048×1536) 80 FPS @ 5M (2591×1944)
Notes	Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Video Station
Video Transcoding	Group 1 – Type 2
Maximum Transcoding Channel Number	1 channel, 30 FPS @ 720p (1280×720), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
VPN Server
Maximum Connections	15
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Welcome Note X 1 Accessory Pack X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2
Optional Accessories	Camera License Pack Expansion Unit: DX213 X 2 Expansion Unit: DX513 X 2 VS360HD

top-18

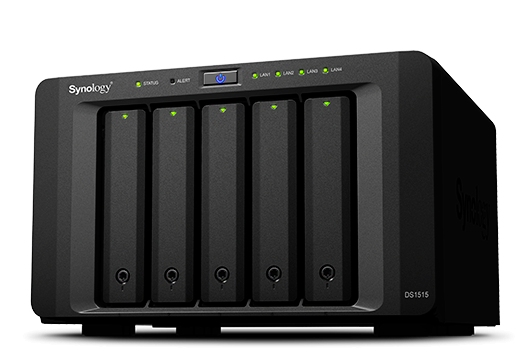

NAS Synology DS1515
