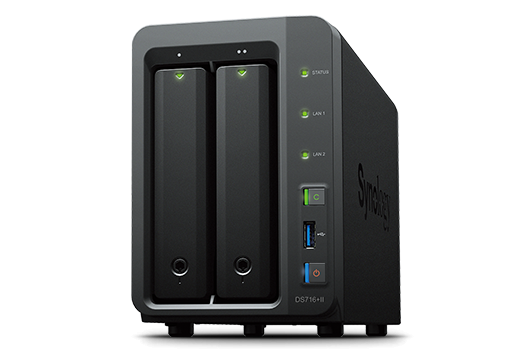

NAS Synology DS716+II
Mã sản phẩm: DS716+II
Mô tả: The ideal NAS server for growing businesses
Xuất xứ: Taiwan
Bảo hành: 12 tháng
DS716+II is the perfect combination of scalability, performance, and versatility. It can deliver high-speed encrypted data transfer, 4K transcoding, and is running Btrfs, a next-generation file system.
Equipped with a quad-core processor and AES-NI hardware encryption engine, DS716+II delivers blazingly fast file transfer speeds — even when handling encrypted data. With Link Aggregation enabled, DS716+II delivers average reading and writing speeds of 226.1 MB/s and 141.19 MB/s respectively, while encrypted file transfers retain an astoundingly similar level of performance, exceeding 226.09 MB/s reading and 138.04 MB/s writing. That means you can safeguard data without sacrificing performance.
| Hardware Specifications | |
| CPU | |
| CPU Model | Intel Celeron N3160 |
| CPU Architecture | 64-bit |
| CPU Frequency | Quad Core 1.6 burst up to 2.24 GHz |
| Floating Point | |
| Hardware Encryption Engine (AES-NI) | |
| Hardware Transcoding Engine | H.264 (AVC), H.265 (HEVC), MPEG-2 and VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 30 |
| Memory | |
| System Memory | 2 GB DDR3 |
| Storage | |
| Drive Bay(s) | 2 |
| Maximum Drive Bays with Expansion Unit | 7 |
| Compatible Drive Type |
|
| Maximum Internal Raw Capacity | 16 TB (8 TB HDD x 2) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 56 TB (8 TB HDD x 7) (Capacity may vary by RAID types) |
| Maximum Single Volume Size | 108 TB |
| Hot Swappable Drive | |
| External Ports | |
| USB 3.0 Port | 3 |
| eSATA Port | 1 |
| USBCopy | |
| File System | |
| Internal Drives |
|
| External Drives |
|
| Appearance | |
| Size (Height x Width x Depth) | 157 mm x 103.5 mm x 232 mm |
| Weight | 1.75 kg |
| Others | |
| RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| Wake on LAN/WAN | |
| System Fan | 92 mm x 92 mm x 1 pcs |
| Fan Speed Mode |
|
| Wireless Support (dongle) | |
| Brightness adjustable front LED indicators | |
| Power Recovery | |
| Noise Level* | 18 dB(A) |
| Scheduled Power On/Off | |
| Power Supply Unit / Adapter | 65W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 19.14 W (Access) 9.50 W (HDD Hibernation) |
| British Thermal Unit | 65.35 BTU/hr (Access) 32.44 BTU/hr (HDD Hibernation) |
| Environment Temperature | |
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification |
|
| Warranty | 3 Years |
| Notes |
|
| DSM Specifications | |
| Storage Management | |
| Maximum Internal Volume Number | 512 |
| Maximum iSCSI Target Number | 32 |
| Maximum iSCSI LUN | 256 |
| iSCSI LUN Clone/Snapshot, Windows ODX | |
| Supported RAID Type |
|
| RAID Migration |
|
| Volume Expansion with Larger HDDs |
|
| Volume Expansion by Adding a HDD |
|
| Global Hot Spare Supported RAID Type |
|
| SSD Support | |
| SSD Read/Write Cache | |
| File Sharing Capacity | |
| Maximum User Accounts | 2048 |
| Maximum Groups | 256 |
| Maximum Shared Folder | 512 |
| Maximum Shared Folder Sync Tasks | 8 |
| Maximum Concurrent CIFS/AFP/FTP Connections | 512 |
| Windows Access Control List (ACL) Integration | |
| NFS Kerberos Authentication | |
| High Availability Manager | |
| Log Center | |
| Syslog Events per Second | 800 |
| Virtualization | |
| VMware vSphere 5 with VAAI | |
| Windows Server 2012 | |
| Windows Server 2012 R2 | |
| Citrix Ready | |
| Add-on Packages | |
| Antivirus by McAfee (Trial) | |
| Central Management System | |
| Cloud Station Server | |
| Maximum Concurrent File Transfers | 512 |
| Docker DSM | |
| Maximum Docker DSM Number (Licenses required) | 2 (including 1 Free License) |
| Document Viewer | |
| Download Station | |
| Maximum Concurrent Download Tasks | 80 |
| HiDrive Backup | |
| MailPlus / MailPlus Server | |
| Free Email Accounts | 5 |
| Recommended MailPlus Client Number | Up to 50 |
| Maximum Server Performance | 81,300 emails per day, approx. 2.5 GB |
| Notes |
|
| Media Server | |
| DLNA Certification | |
| Snapshot Replication | |
| Maximum Snapshots per Shared Folder | 1024 |
| Maximum Snapshots of all Shared Folder | 65536 |
| SpreadSheet | |
| Maximum Simultaneous Editing Users | 125 |
| Surveillance Station | |
| Maximum IP cam (Licenses required) | 40 (including 2 Free License) |
| Total FPS (H.264)* | 1200 FPS @ 720p (1280×720) 800 FPS @ 1080p (1920×1080) 300 FPS @ 3M (2048×1536) 250 FPS @ 5M (2591×1944) |
| Total FPS (MJPEG)* | 450 FPS @ 720p (1280×720) 150 FPS @ 1080p (1920×1080) 100 FPS @ 3M (2048×1536) 72 FPS @ 5M (2591×1944) |
| Notes | Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. |
| Video Station | |
| Video Transcoding | 4K Group 1 |
| Maximum Transcoding Channel Number | 1 channel, 30 FPS @ 4K (4096 x 2160), H.264 (AVC)/H.265 (HEVC) or 3 channels, 30 FPS @ 1080p (1920×1080), H.264 (AVC)/H.265 (HEVC)/MPEG-2/VC-1 |
| VPN Server | |
| Maximum Connections | 20 |
| Environment & Packaging | |
| Environment | RoHS Compliant |
| Packaging Content |
|
| Optional Accessories |
|
