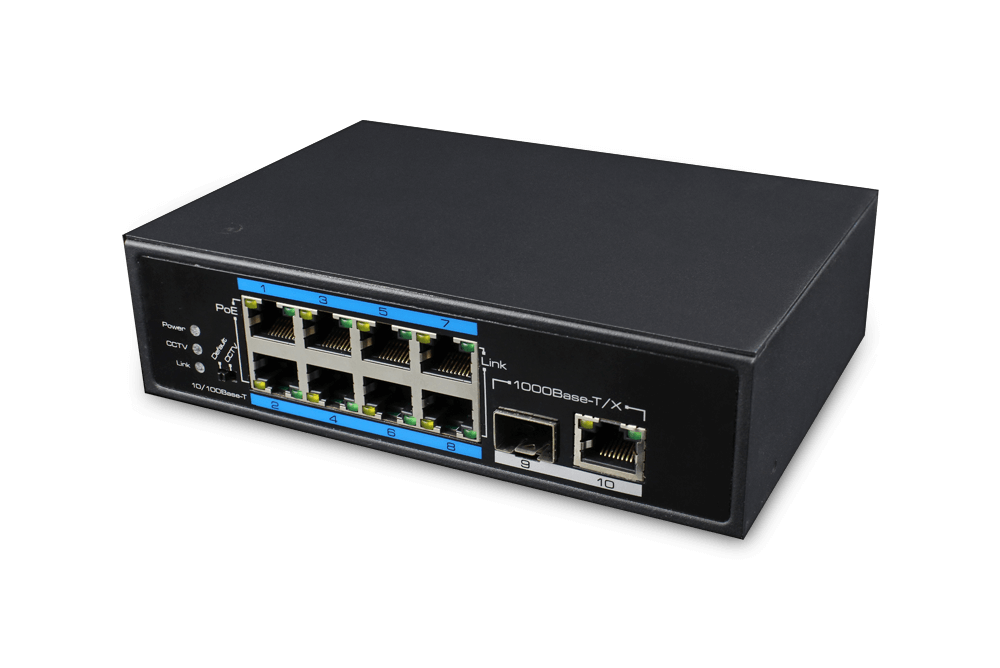

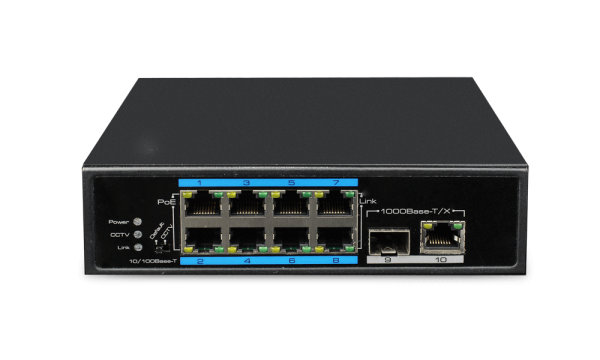

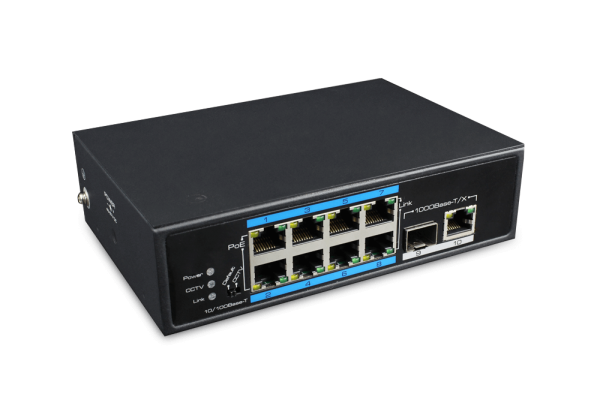

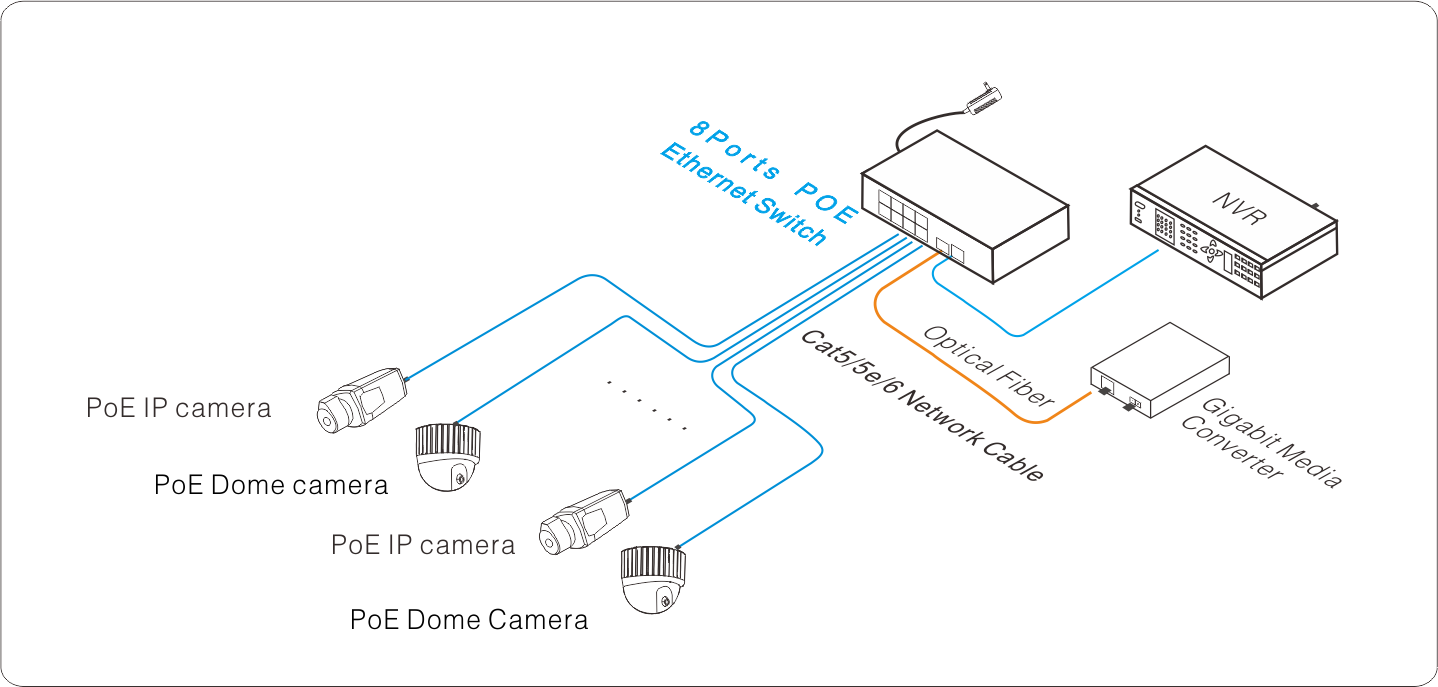

The un-managed 8 ports switch provides one uplink ethernet port and one uplink optical port (both gigabit), 8*10/100Mbps PoE ports which supporting af/at PoE standard. It supports one key CCTV mode: 1. Realize VLAN： 1～8 downlink PoE ports communicate with uplink ports only; 2. Extend the POE Ports transmission distance up to 250m (Max distance will depend on the camera and cable), but the downlink bandwidth only 10Mbps; 3.PoE watchdog (Detect POE device when it is frozen, reboot automatically). The product could be used in network security video surveillance, network project etc.

Advantages

√ Provide 8*10/100Base-T RJ45 PoE ports, 1*10/100/1000Base-T RJ45 and 1*1000Base-X SFP port.

√ The 8 PoE ports support IEEE802.3 af/at standard and can provide up to 30W power per port.

√ One key CCTV mode: 1. Realize VLAN: 1～8 downlink PoE ports communicate with uplink ports only. 2. Extend the POE Ports transmission distance up to 250m (Max distance will depend on the camera and cable), but the downlink bandwidth only 10Mbps; 3.PoE watchdog (Detect POE device when it is frozen, reboot automatically)

√ 6KV surge protection, 8KV/15KV ESD protection.

√ -30℃～65℃ working temperature.

√ Din-rail and wall-mount installation.

industrial switch

Model	UTP7108E-POE
Downstream Ports	8* 10/100Base-TX PoE RJ45
Uplink Ports	11000Base-X SFP Port and 110/100/1000Base-T RJ45 Port
Standard and Protocols	IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, EEE802.3 X
Switching Capacity	5.6Gbps
Packet Forwarding Rate	4Mpps
Forwarding Modes	Store and Forward
Packet Buffer	1M
MAC Address Table	8K
CCTV Mode	1. Realize VLAN: 1～8 downlink PoE ports communicate with uplink ports only; 2. Extend the POE Ports transmission distance up to 250m (Max distance will depend on the camera and cable), but the downlink bandwidth only 10Mbps; 3.PoE watchdog ( Detect POE device when it is frozen, reboot automatically)
PoE Standard	802.3af/at
PoE Power Method	End-span
PoE Line Pair	1/2(+), 3/6(-)
PoE Output Power	48~57V DC , 30 watts max
PoE Budget	240 watts max(Default power supply: 120W)
Surge Immunity	6KV Execute: IEC61000-4-5
ESD Immunity	6KV Contact discharge
	8KV Air discharge
	Execute: IEC61000-4-2
Input Voltage	DC 48~57V
Power Consumption	＜6W
Operating Temperature	-30℃~65℃
Storage temperature	-40℃~85℃
Humidity(Non-condensing)	5%-95%

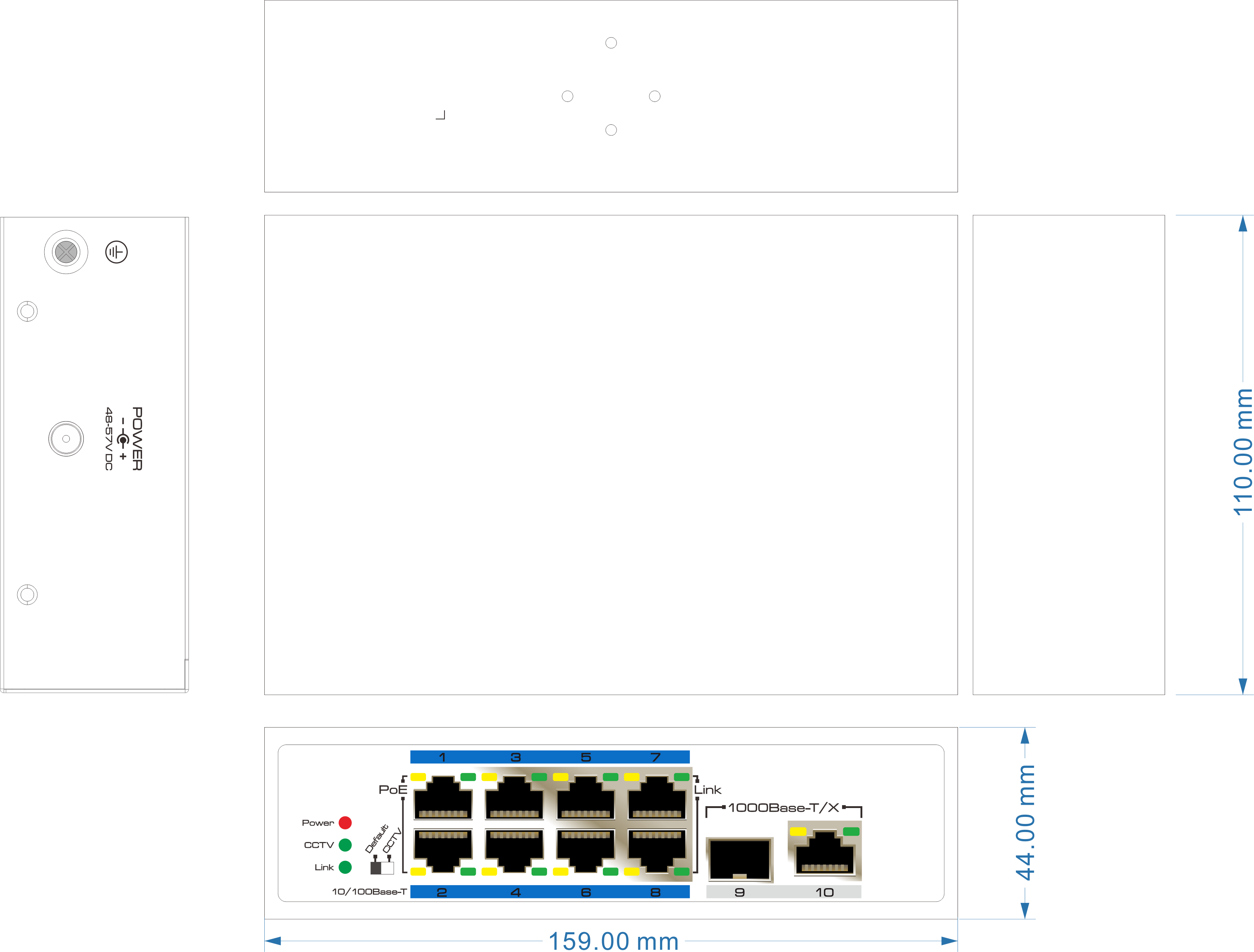

Dimension（L×W×H）	159mm×110mm×44mm
Weight	500g
Certification	CE, FCC, ROHS
