UTP7308GE-POE is 8 Ports Industrial Full Gigabit PoE Managed Switch. Provide 8* 10/100/1000Base-T RJ45 PoE ports(Microsemi PoE solution,1 port 60W,7 ports 30W), 4 * 1000BASE-X SFP ports(Unlinks). The switch provides up to 4Mbit cache, Support 4K high-definition video transmission. Besides, the 8 downlink PoE ports support IEEE802.3af/at standard. It support Web-based network management, support VLAN, QoS, RSTP, SNMP etc. network function; Working temperature 40℃～75℃, strong level of protection from lightning, anti-interference. It fully satisfies the needs of security video surveillance project.

Advantage

√ Provide 8* 10/100/1000Base-T RJ45 ports(PoE), 4 * 1000BASE-X SFP ports(Unlinks).

√ Buffer reaches 4Mbit, Support 4K high-definition video transmission.

√ Microsemi PoE solution: 1 port 60W HPoE，7 ports 30W PoE.

√ Support Web-based network management, support VLAN, QoS, RSTP, SNMP etc. network function.

√ Support One-key CCTV/LOCK/ONLINE/RING

√ Support fast ring ,support 30 pcs switches Max. in a cascade system ,Self-healing in 20ms Min.

√ Support relay alarm for power off, network broken, PoE off.

√ 6KV surge immunity, 8KV ESD protection and anti-interference ability.

√ -40℃～75℃ working temperature.

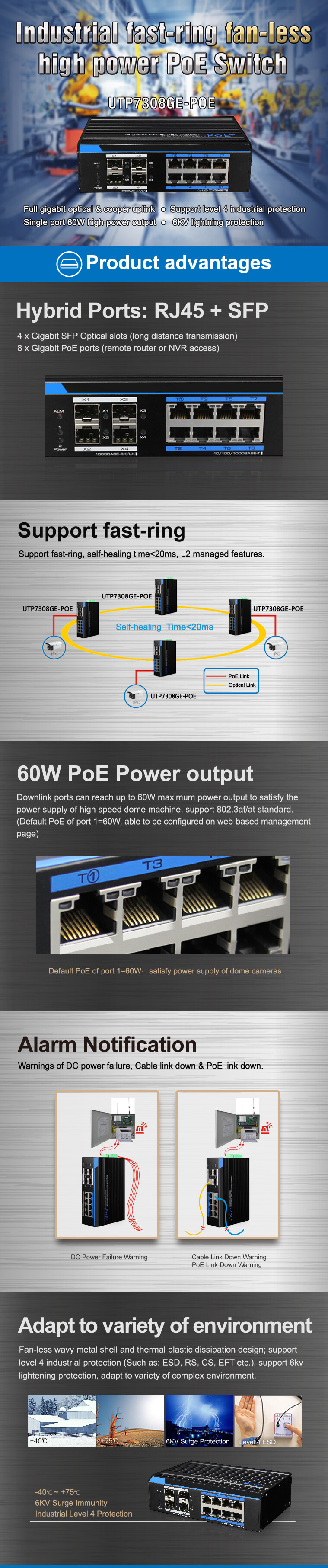

details-utp7308ge-poe

Model	UTP7308GE-POE(MS60)
Downlink Ports	8* 10/100/1000Base-T PoE RJ45 ports
Uplink Ports	4*1000Base-X SFP slots
Console Port	1*RJ45-RS232 serial port(115200,8,N,1)
Init Key	Short press:Restart;
Init Key	>5s restore factory settings
Standard and Protocols	IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1p, IEEE 802.1x IEC61000-4-5 IEC61000-4-2 IEC61000-4-4
Switching Capacity	24Gbps
Packet Forwarding Rate	18Mpps
Forwarding Modes	Store and Forward
Packet Buffer	4Mbit
MAC Address Table	8K
Jumbo Frame	10K bytes
PoE Standard	802.3af/at
PoE Power Method	End-span
PoE Line Pair	1/2(+)，3/6(-)
PoE Output Power	Microsemi PSE solution:Port T1 60W HPoE，Port T2~T8 are standard PoE(30W)
Alarm Signal Output by Relay	Support relay alarm for power off, ports network link-off , ports PoE off （Set by Web Software）
Surge Immunity	6KV Per: IEC61000-4-5
ESD Immunity	ESD Level 4 Per: IEC61000-4-2
ESD Immunity	EFT Level 4 Per: IEC61000-4-4
Input Voltage	48~57V DC
Power Consumption	Self consumption＜30W
Operating Temperature	-40℃~75℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%-95%（No- condensation）

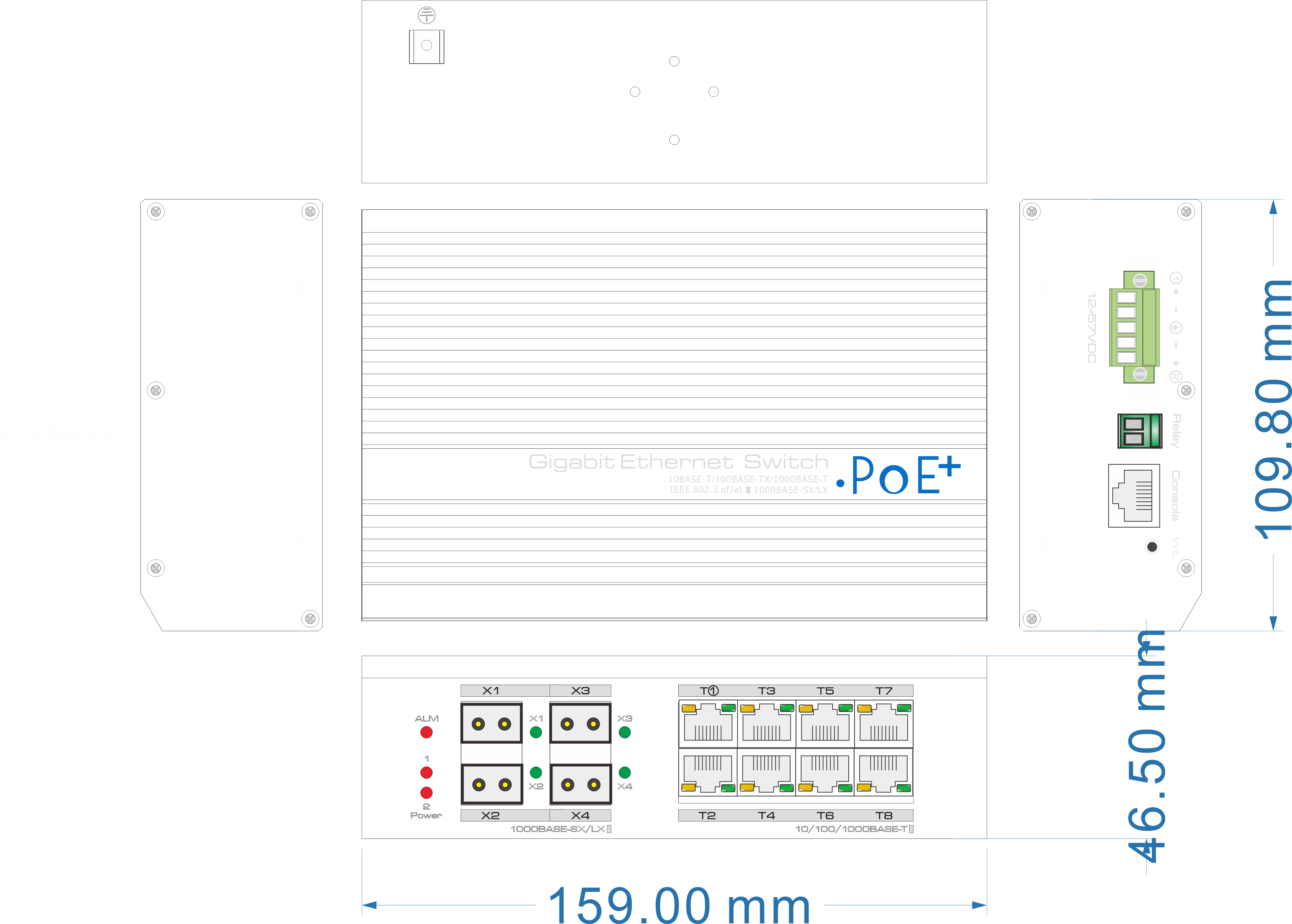

Dimension(LxWxH)	159mm×110mm×46.5mm
Weight	750g
MTBF	330000 Hour
Certification	CE, FCC, ROHS
Software Parameter
Port Management	Support Port Enable/Disable;
	Support Port Rate Settings;
	Support Port Full-duplex Mode;
	Support IEEE802.3x Flow Control;
	Support Port Name Change;
VLAN	Support 4K VLAN
	Support 802.1Q Protocol-Based VLAN;
	Support Port-Based VLAN;
QoS	Support QoS;
	Support 8-Level Priority management for switching;
	Support WRR;
	Support 820.1P and DSCP Priority;
Multicast Management	Support SNMP V1/V2/V3 Protocol;
Multicast Management	Support IGMP Snooping;
POE Management	Support Total Power Consumption Control;
	Support PoE ON/OFF;
	Support Single Port 60W max. Power Change and Port Output Priority;
Alarm Signal Output by Relay	Support relay alarm for power off, ports network link-off , ports PoE off
Security	Support IP, MAC, Port, VLAN Combination and Binding;
	Support MAC address auto-learning, aging& filter;
	Support Port Isolation, Port Speed-Limited;
	Support RSTP;
	Support Fast-Ring;
	Support 5 groups of 8-Port trunk;
	Support RADIUS Authentication& 802.1X Authentication;
System Management& Maintenance	Support WEB Management, CLR Settings and telnet Settings;
	Support CLR Settings;
	Support FTP/TFTP/HTTP Web Upgrading;
	Support Flow Calculate;
	Support MAC address Form Search;
	Support IP Address, DNS Server Change
	Support Username& Password Change;
	Support History Record, Journal management;
	Support System settings Backup;
