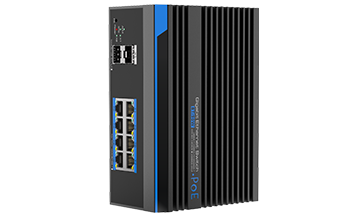

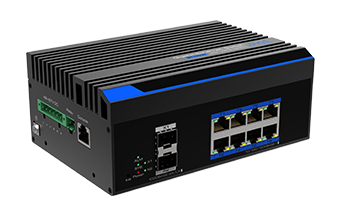

UTP7308GE-BTPoE, full gigabit Managed Industrial BT PoE switch, provides 8*10/100/1000Base-T Ethernet PoE port and 2*1000Base-X SFP Slots. And the port 1-8 support IEEE802.3af/at/bt, and Perpetual PoE technology. The max transmission distance is up to 250 meters. The switch also supports abundant L2 managed function, including IGMP Snooping QVLAN, QoS, DHCP and Fast-ring and PoE control. In addition, the switch could be applied to lighting industry, security monitoring, enterprise park and other applications.

Advantage

√ 8*10/100/1000Mbps Ethernet PoE port +2*1000Mbps SFP Slots.

√ Port 1-8 support IEEE802.3at/af/bt.

√ Total PoE power budget is 480W, max PoE power for single port is 90W.

√ Support Perpetual PoE and PoE watchdog.

√ Support management function including DHCP, Fast-Ring, IPv6, etc.

√ Support 1CH relay alarm output, fanless, wave metal shell, and low power consumption design.

√ Support installation of DIN rail and wall mounted, adapting to all kinds of environments.

<br /> UTEPO<br />

UTP7308GE-BTPOE, full gigabit managed PoE switch, provides 8*10/100/1000Base-T ports and 2*1000Base-X
SFP slots. And the port 1-8 support IEEE 802.3af/at/bt, and Perpetual PoE technology. The max
transmission distance is up to 250 meters. In addition, the switch could be applied to lighting
industry, security monitoring, enterprise park and other applications.

Key Feature

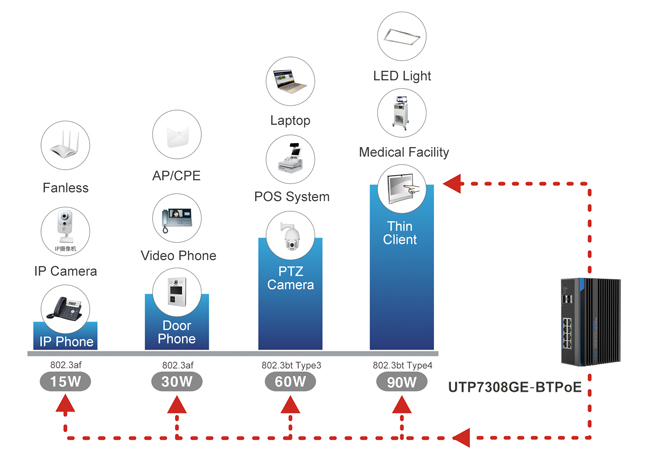

● Support IEEE 802.3BT PoE

The port 1-8 support IEEE 802.3af/at/bt, max
output PoE power for single port is up to 90W.

● Excellent Heat Dissipation Performance

Fanless design and wave metal shell, ensuring
stable performance under full load on environment of -10℃ ~ +55℃.

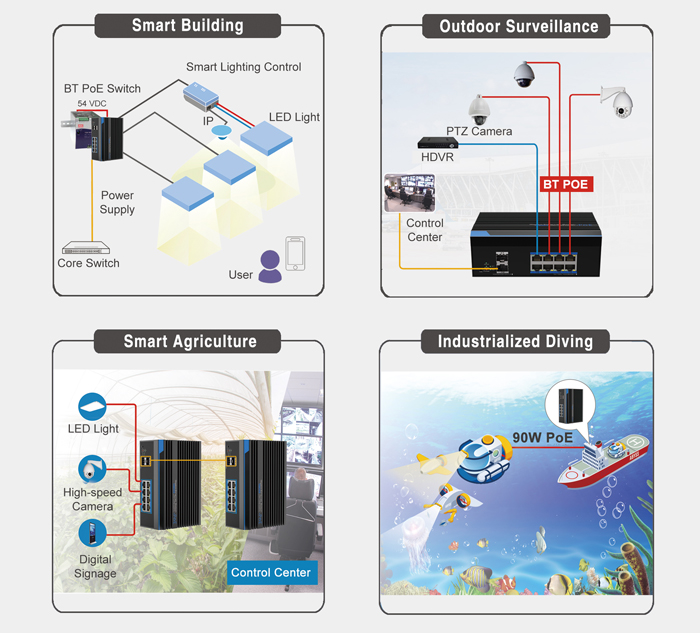

● Wide Application

Supply power and data to network devices that
need high power to work normally, such as smart lighting, all-in-one PC, AI high-speed camera,
industrial sensor etc.

● Perpetual PoE

The Perpetual POE provides uninterrupted power
to connected PD device (PoE Camera, etc) even when the PoE switch is booting.

● Abundant L2 Managed Function

Support L2 managed function, including IGMP
Snooping, QVLAN, QoS, DHCP, Fast-ring, etc.

Application

More Models

● PoE+ + power supply standard, Output power consumption

● can be up to 95W.

● 4KV lightning protection, 8KV ESD protection.

● No fan, no noise, dust-proof.

Model	UTP7308GE-BTPoE
Physical Port
Downlink Ports	8*10/100/1000Base-T (PoE)
Uplink Ports	2*1000Base-X SFP Slots
Alarm Output	One channel relay alarm output, 1A@DC 12V, 2 cores, 5.08mm terminal
LED Indicator	8Link/Act (Green), 8PoE (Orange), 1*PWR (Red)
Switching Feature
Standard and Protocols	IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1D, IEEE 802.1af/at/bt
Switching Capacity	20Gbps / non-blocking
Packet Forwarding Rate	14.9Mpps
Packet Buffer	4Mbit
MAC Address Table	16K
Jumbo Frame	10K bytes
PoE
PoE Standard	802.3af/at/bt(PSE)
PoE Line Pair	1/2/4/5(+)，3/6/7/8(-)
PoE Output Power	PoE output power for singe port≤90W, Total PoE power budget≤480W
Power Supply
Input Voltage	DC 48V-57V
Power Consumption	≤20W (Not inlcude PoE)
Environment
Surge Immunity	6KV Execute: IEC61000-4-5
ESD Immunity	6KV: Contact discharge
	15KV: Air discharge
	Execute: IEC61000-4-2
IP Grade	IP40
Operating Temperature	-10-55℃
Storage Temperature	-40-85℃
Operating Humidity	5%-95% (Non-condensing)
Physical Parameter

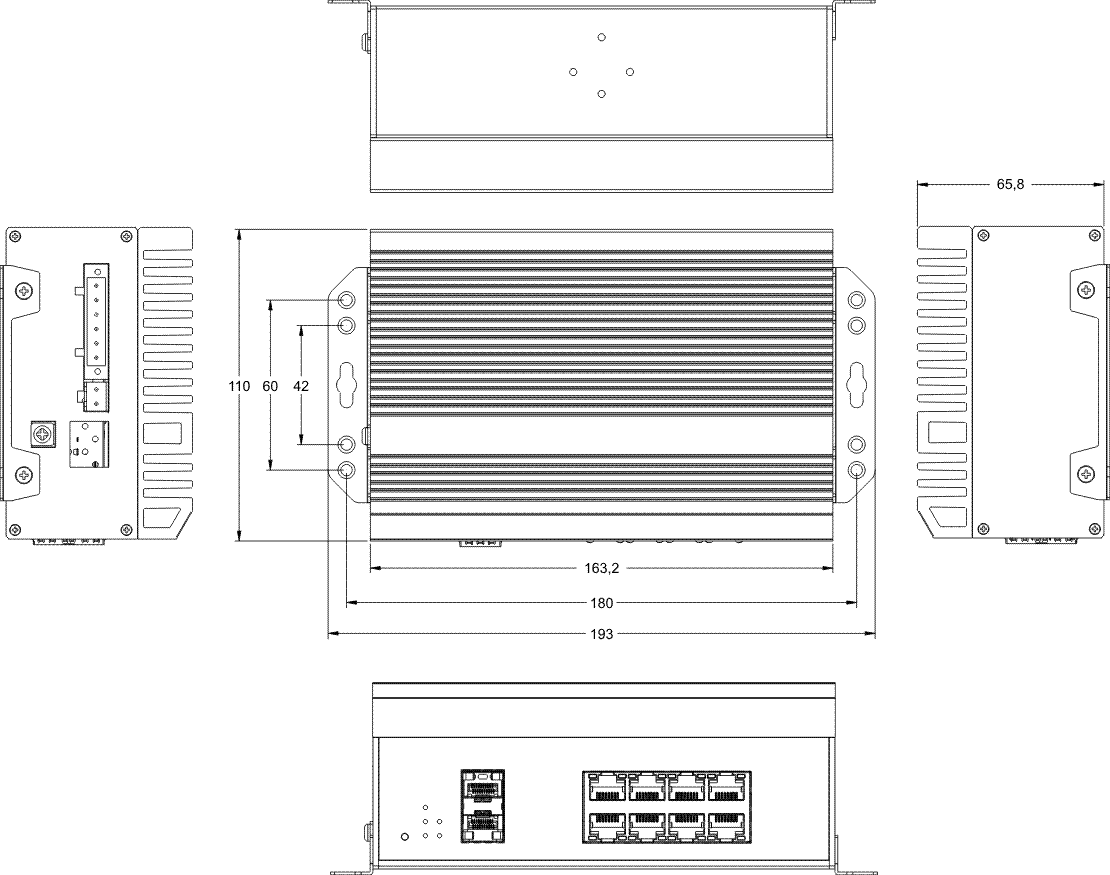

Dimension（L×W×H）	159mm×110mm×46.5mm
Weight	1558g±20g
Material	Aluminium alloy
Installation	DIN rail / Wall mounted
Number of Fans	N/A
Certification	CE, FCC
Software Specification
L2 Function	PoE Management	Perpetual PoE: The PoE is kept enabled and supplying power to PD even if you press the “reboot” for the switch, which reduces the problem of PD power failure caused by restart.
		Support total power consumption control
		Support PoE ON/OFF
		Support priority of port output power
	Port	Support port isolation and rate settings
		Support port storm suppression
		Support IEEE802.3x flow control
		Support port adaptation and traffic statistics
	LACP	Static LACP, Dynamic LACP
	VLAN	Support 4K VLAN
		Support 802.1Q Protocol-based VLAN
		Support Port-based VLAN
	QoS	Support QoS congestion management
		Support 8 hardware priority queues
		Support WRR
		Support 820.1P and DSCP priority
	ERPS	STP/RSTP
		Fast-ring
	DHCP	Support DHCP server
		Support DHCP snooping
		Support DHCP relay
	IGMP	Support IGMP SnoopingV1/V2
	Security	Support RADIUS authentication
		Support 802.1X authentication
	System Management	Support WEB management, configuration through Telnet, SSH
		Support FTP/TFTP/HTTP upgrading
		Support MAC address tables and traffic statistics
		Support IP address, DNS server change
		Support username& password change
		Support history record, journal management
		Support system settings backup
		Support factory default settings and restart
