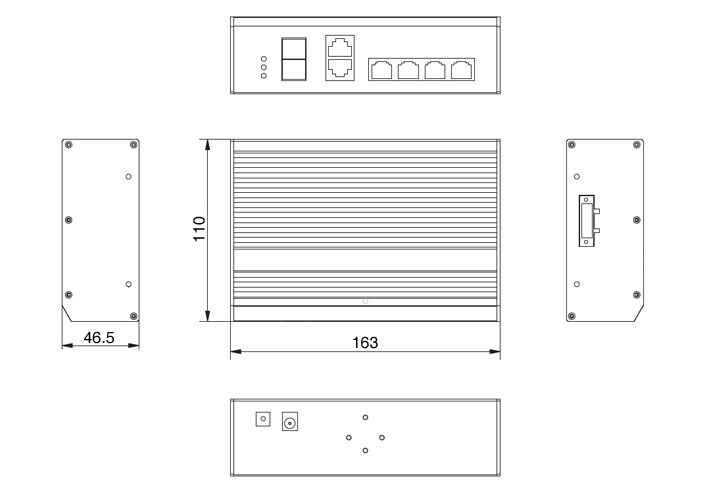

Dimensions
Applications
Package
Download
Related Video

The un-managed industrial ethernet switch provides one uplink ethernet port and one uplink optical port (100Mbps),four 100Mbps PoE ethernet ports which supporting af/at power supply standard. This product is designed for high definition IP camera network access; which supports one key CCTV model, can achieve VLAN, restrain the Netstorm, protect the information security and prevent the virus spread and Ethernet attack; it also integrates optical interface to achieve the perfect performance which blended with fiber optical transceivers and network switches, to solve the problem of long-distance transmission. The product could be used in network security video surveillance, network project etc.

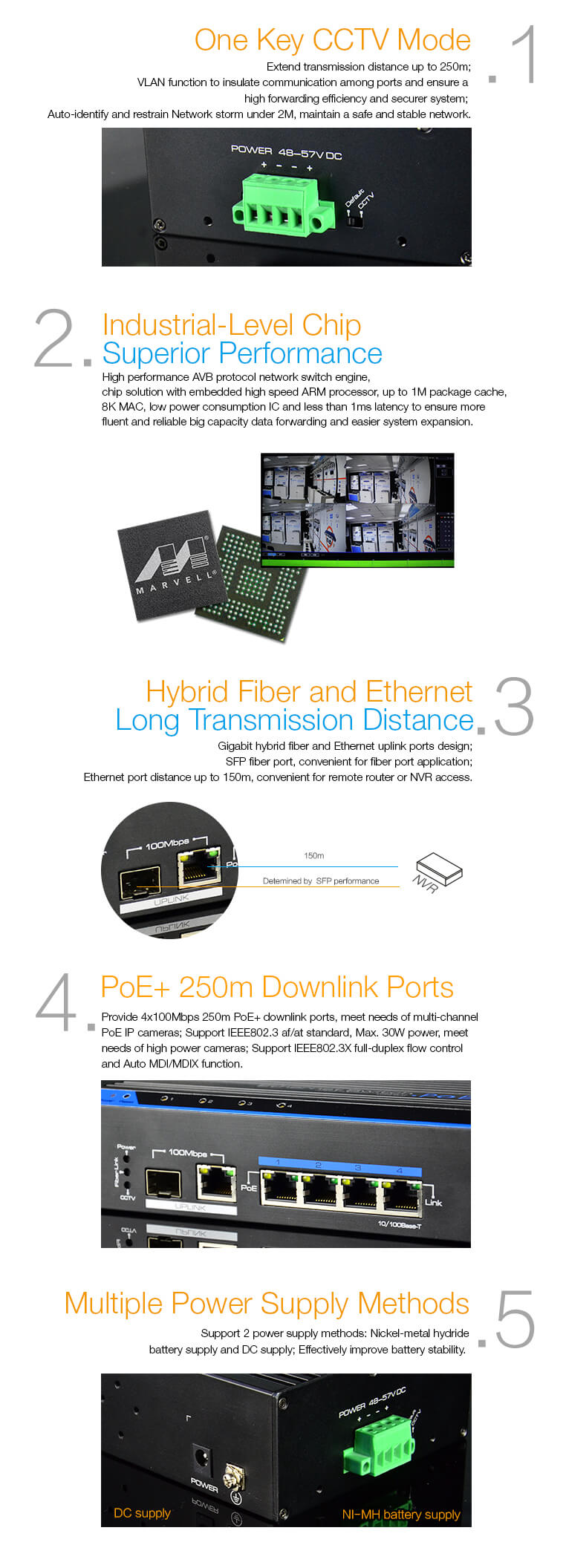

utp7204e-poe-a120details

Model	UTP7204E-PoE-A1
Downstream Ports	4* 10/100Base-TX
Uplink Ports	1100Mbps SFP Port and 110/100Base-TX
Network Standard	IEEE802.3 , IEEE802.3u, EEE802.3 X
Switching Capacity	1.5Gbps
Packet Forwarding Rate	0.9Mpps
Forwarding Modes	Store and Forward
Packet Buffer	512k
MAC Address Table	2K
PoE Standard	802.3af/at
PoE Power Method	End-span
PoE Line Pair	1/2(+), 3/6(-)
PoE Output Power	44~57V DC , 30 watts max
PoE Budget	60 watts max
Surge Immunity	6KV Execute: IEC61000-4-5
ESD Immunity	6KV Contact discharge
	8KV Air discharge
	Execute: IEC61000-4-2
Input Voltage	DC 48~57V
Power Consumption	＜5W
Operating Temperature	-40℃~75℃
Storage Temperature	-40℃~85℃
Humidity(Non-condensin)	5%-95%
Dimension（L×W×H）	159mm×110mm×46mm
Weight	530g
MTBF	200000 Hours
Certification	CE, FCC, ROHS
