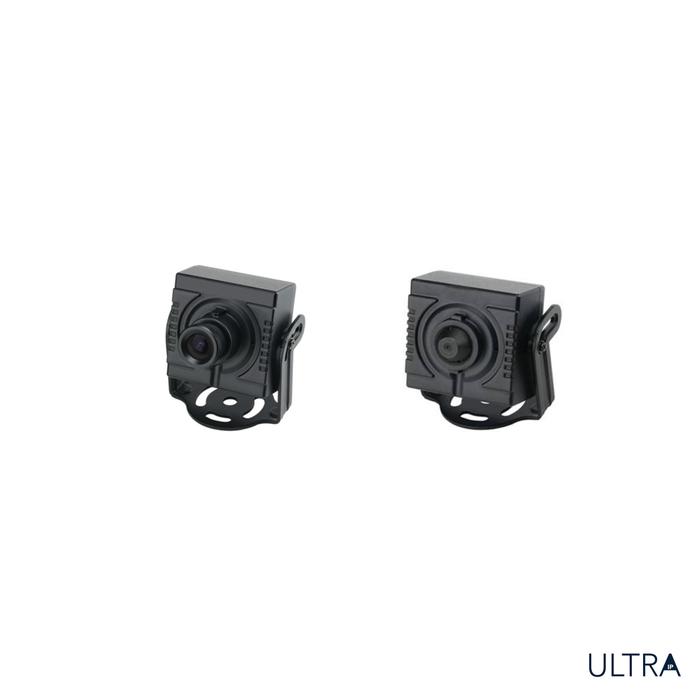

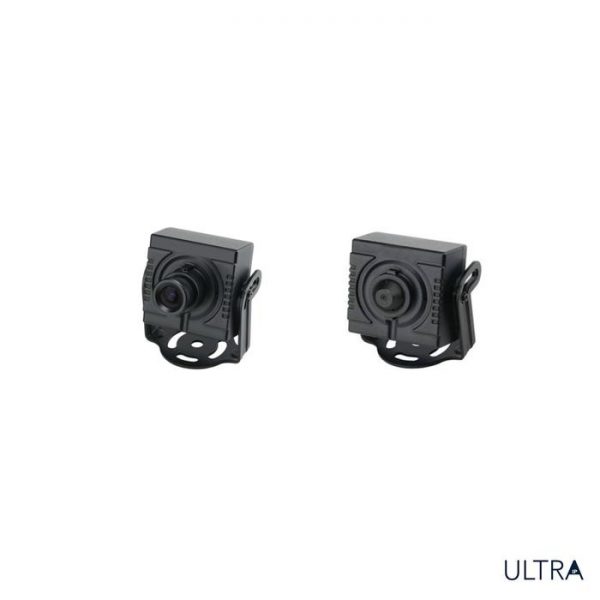

Camera Canada Invidtech ULT-P2SQPOE: 2 Megapixel Miniature Cameras, Fixed Lens

Image Sensor

Sony Exmor 2.07MP Image Sensor

Scan System

Progressive Scan

Total Pixels

2000(H)×1121(V) 2.24MegaPixles

Effective Pixels

1984(H)×1105(V) 2.19MegaPixles

Day & Night

Auto/Day(Color)/Night(BW)

Minimum Illumination

0.1 Lux

Privacy

Area On/O (6 Programmable Zone)

WDR

DWDR (1~5Step)

3D DNR

1~63

Motion Detector

48 Zone (On/O, 1~5Step)

Elec. Shutter

Auto(1/15~1/10000),Suppress Rolling, Manual

White Balance

Auto/Indoor/Outdoor/Fluorescent

Focal Length

4.3 mm  Mega Lens

Power Supply

DC12[V] ±10% / POE(option) Current Max 750mA

Operating Temp.

-10℃ ~ +75℃

Preservation Temp.

-20℃ ~ +80℃

Humidity

 0% ~ 90%

Weight

Approx. 70 g

OS

Embedded Linux

Interface

RJ45 100/100 Base-T PoE

Protocol

TCP/IP,UDP/IP,RTP,RTSP,RTCP,NTP, HTTP,DHCP,FTP,SMTP,DNS,DDNS

Onvif

Ver2.4

Simultaneous Access

Max. 10 user

Compress Format

H.264/MPEG4/MJPEG

Resolution

1920×1080/1280×720/640×360/320×180

Frame rate

5fps ~ 30fps @ all resolution

Video Quality

H.264,MPEG4 : Bit rate Control MJPEG : Quality Level Control

Streaming

Triple Stream (Stream1,2,3) RTP/RTSP, UnicastRTP, Multicast RTP

Manager

IE, Firefox, Safari, Opera

Viewer

IE over 10ver (Active-X)
