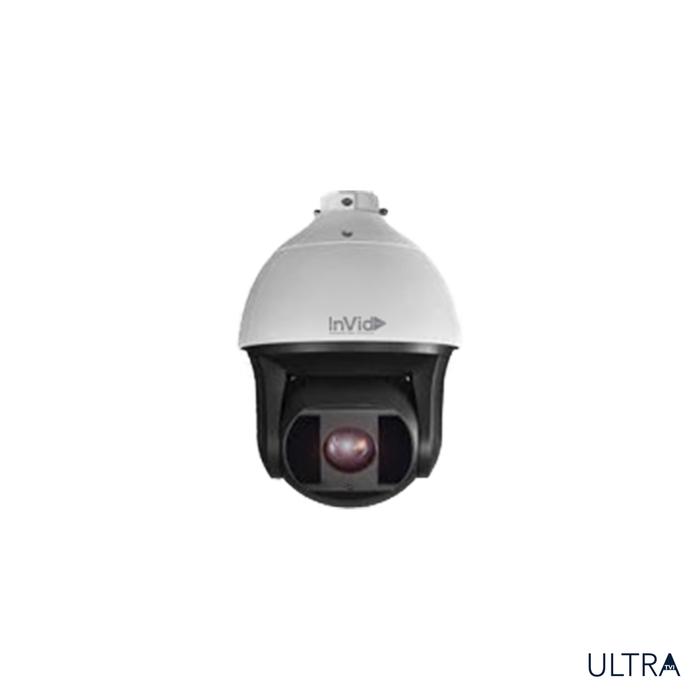

Camera Canada Invidtech ULT-P3PTZXIRT36: 3 Megapixel PTZ, 36x

3 Megapixel IP Plug & Play, Outdoor PTZ, 36x Zoom with Auto-Tracking, 600′ EXIR Range, SD Card Slot, AC24V/High-PoE

Mô tả
Sản phẩm liên quan

3 Megapixel IP Plug & Play, Outdoor PTZ, 36x Zoom with Auto-Tracking, 600′ EXIR Range, SD Card Slot, AC24V/High-PoE

Features

3 Megapixel (2048 x 1536) Resolution
H.264/MPEG-4 Compression
True Day/Night
36x Optical Zoom
Auto-Tracking
Digital WDR
EXIR Range up to 600’
CVBS Video Output
Audio Input/Output
IP66 Weather Resistant & Operates to -40° F
SD Card Local Storage, 64 GB
24VAC/High-PoE Power Supply
Free iOS & Android Apps for Smart Phones & Tablets
Free Central Management Software (CMS) to manage multiple units & sites from a single platform
Free MAC client software available

Model	ULT-P3PTZXIRT36
Image Sensor	1/3” Progressive Scan CMOS
Effective Pixel	2230K pixels
Min. Illumination	Color: 0.05Lux, B/W: 0.01 lux
White Balance	Auto / Manual/ATW/Indoor/Outdoor/Daylight lamp/ sodium lamp
AGC	Auto / Manual
S / N Ratio	>= 55dB
Digital Noise Reduction	3D DNR
Backlight Compensation	BLC/DWDR
Wide Dynamic Range	128X Digital WDR
Shutter Speed	1 ~ 1/10,000s
Day & Night	IR Cut Filter
Digital Zoom	16X
Focus Mode	Auto / Semiautomatic / Manual
Len Focal Length	4.5mm ~ 162mm, 36X
Zoom Speed	Approx 3s (Optical Wide-Tele)
Angle of View	60.6 ~ 3.68 degree (Wide-Tele)
Min. Working Distance	10 ~ 1500 mm (Wide-Tele)
Aperture Range	F1.6 ~ F4.4
Range	Pan: 360° endless: Tilt 20° ~ 90° (Auto Flip)
Speed	Pan Manual Speed: 0.1° ~ 160°/s, Pan Preset speed: 240°/s; Tilt Manual speed: 0.1° ~ 120°/s, Tilt Preset speed: 200°/s
Proportional Zoom	rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Patrol	16 patrols,up to 32 presets per patrol
Park action	Pattern/Pan scan /Tilt scan/Frame scan/Panorama scan/Random scan
Power-off Memory	Support
IR distance	UP to 600ft
IR Internsity	Automatically adjusted, depending on the zoom ratio
Audio input	1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output	1 Audio output interface, line level, impedance: 600Ω
Alarm I/O	7/2
Network Ethernet	10Base-T / 100Base-TX, RJ45 connector
Max. Image Resolution	2048×1536
Frame Rate	60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30 fps (1280 x 720), 20 FPS (2048 x 1536)
Image Compression	H.264/MPEG4
Audio Compression	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View	Up to 20 users
Streams	Dual Streams
Mimi SD Memory Card	Support up to 64GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level	Up to 32 user, 3 Levels: Administrator, Camera control, Live view only
Security Measures	User authentication (ID and PW), Host authentication (MAC address), IP address filtering
Application programming	Open-ended API, support Onvif PSIA and CGI
Web Browser	IE7, IE8, IE9, Firefox3.5 +, Safari 5+
RS-485 Protocols	Pelco-P, Pelco-D, Hikvision, self-adaptive
Power	Hi-PoE&24 VAC, Max.60W
Working Temperature	-40°C ~ 65°C (-40°F ~ 149°F)
Humidity	90% or less
Protection Level	IP66 standard TVS 4000V lightning protection, surge protection and voltage translent protection
Dimensions	Φ266.6(mm)×365.2(mm)
Weight (approx.)	8kg (17.64lbs)
