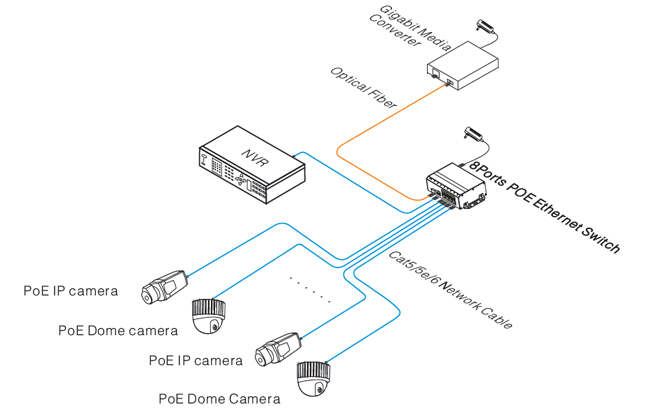

8 ports PoE Ethernet Switch is an unmanaged Ethernet switch. This product provides 1 Gigabit uplink Ethernet port and 1 Gigabit uplink fiber port and 8* 100Mbps PoE Ethernet ports, support IEEE802.3af/at power supply standard. The product is widely used in secrity surveillance and network project.

utp7208e-poe-detail

Model	UTP7208E-PoE-A1
Downstream Ports	8* 10/100Base-TX
Uplink Ports	11000Mbps SFP Port and 110/100/1000Base-T
Network Standard	IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3z、EEE802.3 X
Switching Capacity	7Gbps
Packet Forwarding Rate	4Mpps
Forwarding Modes	Store and Forward
Packet Buffer	1M
MAC Address Table	8K
PoE Standard	802.3af/at
PoE Power Method	End-span
PoE Line Pair	1/2(+)，3/6(-)
PoE Output Power	44~57V DC , 30 watts max
PoE Budget	120 watts max
Surge Immunity	6KV Execute: IEC61000-4-5
ESD Immunity	6KV Contact discharge
	8KV Air discharge
	Execute: IEC61000-4-2
Input Voltage	DC 48~57V
Power Consumption	＜6W
Operating Temperature	-40℃~75℃
Storage Temperature	-40℃~85℃
Humidity(Non-condensing)	5%-95%

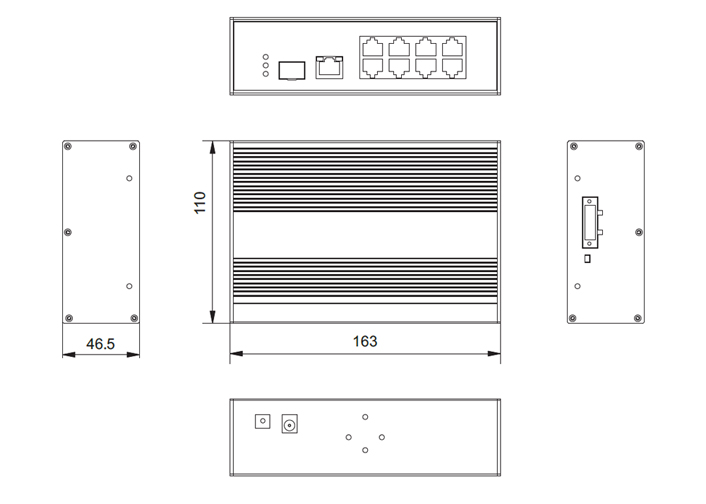

Dimension（L×W×H）	159mm×110mm×46mm
Weight	530g
MTBF	200000 Hours
Certification	CE, FCC, ROHS
