Camera IP EYENOR ENC-HBU7F-30R-68 | Made in UK
4MP H.265 IR IP Bullet Camera
Overview
1/3″ Progressive Scan CMOS, 3.6mm (2.8/6mm Optional), 25/[email protected], Smart IR Range 30M, Triple Streams, Electronic Image Stabilization, IP67
Specification
|
MODEL |
Model No. |
ENC-HBU7F-30R-68 |
|
Type |
4MP H.265 IR IP Bullet Camera |
|
|
|
Image Sensor |
1/3″, Progressive scan CMOS |
|
|
Lens |
3.6mm (2.8/6mm Optional) |
|
|
Iris |
Fixed Iris |
|
|
Angle of View(H) |
85° |
|
|
Shutter |
1/5-1/20,000 |
|
CAMERA
|
Min.Illumination |
Color: 0.05Lux @ F1.2, B/W: 0Lux @(IR LED ON) |
|
AGC |
Auto/Manual |
|
|
Day/Night |
ICR |
|
|
Digital Noise Reduction |
2D/3D |
|
|
S/N |
55dB |
|
|
Smart IR |
Up to 30M |
|
|
Defog |
Digital Defog |
|
|
WDR |
120dB |
|
|
VIDEO & AUDIO
|
Max.Resolution |
2592×1520 |
|
Video Compression |
H.265+,H.265, H.264, MJPEG |
|
|
Frame Rate |
Main Stream : 2592×1520/2560×1440/2304×1296/1920×1080/1280×720 @25/30fps |
|
|
Streaming Capability |
Triple Stream |
|
|
HLC/BLC |
Supported |
|
|
ROI |
Supported |
|
|
EIS |
Supported |
|
|
Privacy Mask |
Supported |
|
|
Motion Detection |
Supported |
|
|
Audio Compression |
G.711U/G.711A |
|
|
INTERFACE
|
Protocols |
IPv4, IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS,UPnP, FTP, ARP, SNMP |
|
Compatibility |
Onvif (Profile S/G) |
|
|
Network |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
|
|
SMART
|
Behaviour Detection |
Perimeter, Single Virtual Fence, Double Virtual Fences |
|
Intelligent Identification |
Loiter, Multi Loiter, Abandoned Object, Missing Object |
|
|
Statistical Analysis |
Abnormal Speed, Converse, Illegal Parking, Signal Bad |
|
|
GENERAL
|
Power Supply |
DC12V/POE (IEEE 802.3af) |
|
Power Consumption |
7W |
|
|
Working Environment |
-40°C ~ 60°C, Humidity: < 90% RH |
|
|
|
Reset Button |
Supported |
|
Ingress Protection |
IP67 |
|
|

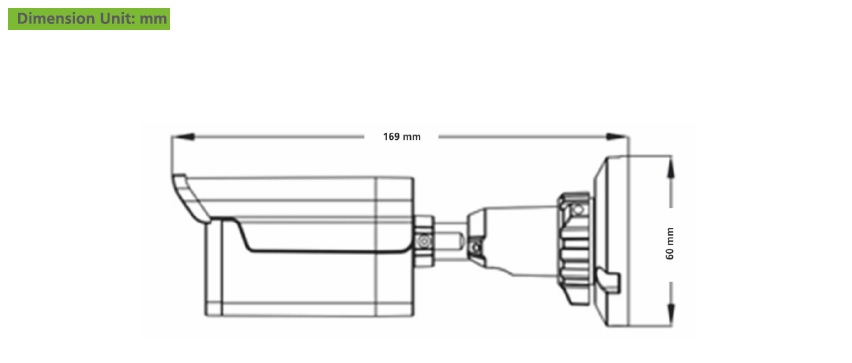

Dimensions |
169 ×70 ×60 mm |
|
|
Weight |
0.63Kg |
Ordering Information
|
Part Number |
Description |
Standard Quantity |
|
ENC-HBU7F-30R-68 |
4MP H.265 IR IP Bullet camera with 3.6mm(optional 2.8/ 6mm) Fixed lens, POE, WDR, Analytic features and 30m IR Support |
1 |
Downloads
| Datasheet | 460.99KB | DOWNLOAD |
