Camera IP EYENOR ENC-HBU7V-40R-68 | Made in UK

MODEL

Model No.

ENC-HBU7V-40R-68

Type

 4MP H.265 IR IP Bullet Camera

CAMERA

Image Sensor

1/3″, Progressive scan, CMOS

Lens

2.8-12mm Varifocal Lens

Iris

Fixed Iris

Angle of View (H)

100°~ 35°

Minimum Illumination

Color:[email protected], B/W:[email protected] LED ON

AGC

Auto/Manual

Shutter

1/5-1/20000s

Day/Night

ICR

Digital Noise Reduction

2D/3D

S/N

>55dB

Defog

Digital Defog

WDR

120dB

VIDEO

Max. Resolution

2592 x1520

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream : 2592×1520/2560×1440/2304×1296/1920×1080/1280×720 @25/30fps
Sub Stream : D1/VGA/640×360/CIF/QVGA @25/30fps
Third Stream : VGA/CIF/QVGA @25/30fps

Streaming Capability

Triple Stream

ROI

Supported

HLC/BLC

Supported

Privacy Masking

Supported

Motion Detection

Supported

SMART

Behaviour Detection

Perimeter, Single Virtual Fence, Double Virtual Fences

Inteligent Identification

Loiter, Multi Loiter, Abandoned Object, Missing Object

Statistical Analysis

Abnormal Speed, Converse, Illegal Parking, Signal Bad

INTERFACE

Protocols

IPv4, IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP

Compatibility

ONVIF (Profile S/G)

Network

1 Ethernet (10/100 Base-T) RJ-45 Connector

GENERAL

Power

 DC12V/POE (IEEE 802.3af)

Power Consumption

5.5W

Working Environment

-30°C ~ 50°C, Humidity: <90% RH

Ingress Protection

IP67

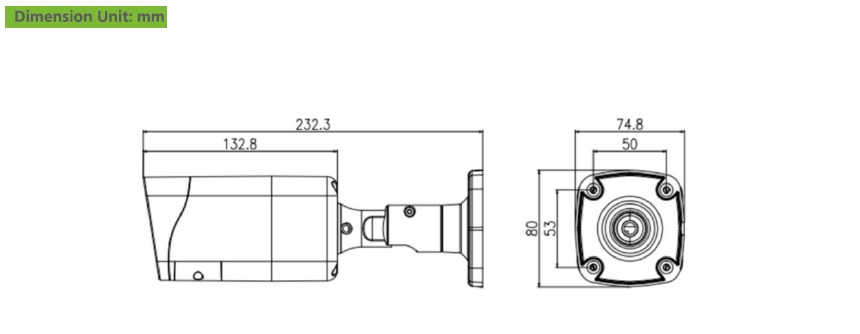

Dimensions

232×74.8×80mm

Net Weight

0.7Kg
