Camera IP EYENOR ENC-HVD8F-30R-20 | Made in UK

MODEL

Model No.

ENC-HVD8F-30R-20

Type

5MP Starlight IP H.265 Vandal Proof Dome Camera

Image Sensor

1/2.7″,Progressive scan, 5.0 Megapixel, CMOS

CAMERA

Lens

2.8 [email protected] (Optional 4.0 [email protected])

Angle of View (H)

105.3° (79.7° for 4.0 mm)

Shutter

Auto/Manual, 1/6~1/100000 s

Min. Illumination

Colour: 0.005 Lux @F1.6
0 Lux with IR

AGC

Auto/Manual

Day/Night

IR-Cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>55dB

IR Range

Up to 30M IR range

Defog

Digital Defog

WDR

120dB

VIDEO & AUDIO

Video Compression

H.265+,H.265, H.264, MJPEG

Frame Rate

Main Stream: 5MP (2592*1944), Max 20fps; 5MP (2592*1944), Max 25fps (WDR OFF); 4MP (2560*1440), Max 30fps;
3MP (2048*1536), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps

Corridor Mode

Supported

HLC/BLC

Supported

OSD

Up to 8 OSDs

 ROI

 Up to 8 areas

 Motion Detection

 Up to 4 areas

Privacy Mask

Up to 8 areas

Audio Compression

G.711U/G.711A

 Two-way Audio

 Supported

SMART

Behavior Detection

Intrusion, Crossing line, Motion detection

Intelligent Identification

Face detection, Audio detection, Defocus, Scene Change, Missing Object, Abandoned Object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

GENERAL

Power

12 V DC±25%, PoE (IEEE802.3 af)

Power consumption: Max 5W

Operating Temp

-35°C ~ +60°C Humidity: ≤95% RH (non-condensing)

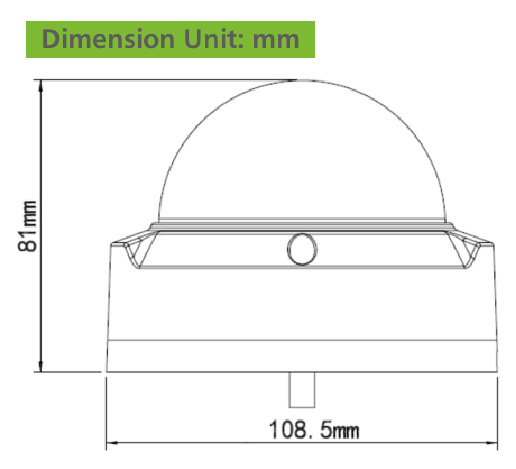

Dimensions

108.5×108.5x81mm

 Weight

 0.45Kg

 Storage

 Micro SD, up to 256GB

 Network Storage

 ANR

 Ingress Protection

 IP67

 Vandal Resistant

 IK10
