MODEL

Model No.

ENC-HHP5Z-150R-13

Type

2MP Starlight IP H.265 High Speed PTZ Dome Camera

Image sensor

1/1.8″, Progressive scan, 2.0 Megapixel, CMOS

Lens

 6.5 ~ 143 mm, AF automatic  focusing and motorized zoom lens

CAMERA

Angle of View (H)

57.2° ~ 3.3°

Shutter

Auto/Manual, Shutter time: 1/ ~ 1/100000s

Minimum Illumination

Colour: 0.0005Lux @F1.5
BW: 0Lux with IR on

AGC

Auto/Manual

Iris

 Auto/Manual; F1.5 ~ F3.4

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

IR Range

Up to 200 m,
While Light, up to 30m

Defog

Digital Defog

WDR

120dB

VIDEO

 Max. Resolution

 1920 x 1080

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream:2MP (1920×1080):Max. 60 fps;
Sub Stream:2MP (1920×1080):Max. 60 fps;
Third Stream: D1 (720×576): Max. 60 fps

HLC/BLC

Supported

EIS

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 24 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

 Audio Compression

 G.711U/G.711A

 Two-way Audio

 Supported

SMART

Behavior Detection

Intrusion, Cross line, Motion detection, Auto tracking

Intelligent Identification

Face detection, Audio detection, Missing Object, Abandoned Object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Protocols

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,
SMTP, 802.1x, SNMP, QoS

Comaptibility

ONVIF (Profile S/G), API

Network

RJ45 10M/100M Base-TX Ethernet

INTERFACE

Audio I/O

1/1

Alarm I/O

2/1

Serial Port

1 RS485

BNC

Supported

PAN & TILT

Pan Range

360°

Pan Speed

0.1°/s ~ 240°/s

Preset speed: 300°/s

Tilt Range

–15° ~ +90° (auto reverse)

Tilt Speed

0.1° ~ 160°/s

Preset speed: 240°/s

Number of Presets

1024

Patrol

Preset patrol, Route patrol, Recorded patrol

Home Position

Supported

GENERAL

 Power

 AC 24V (Default)±25%, DC  24V±25%

Power consumption: 12 ~46W

Storage

Micro SD, Up to 256 GB

ANR

Supported

Ingress Protection

IP66

Working Environment

-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)

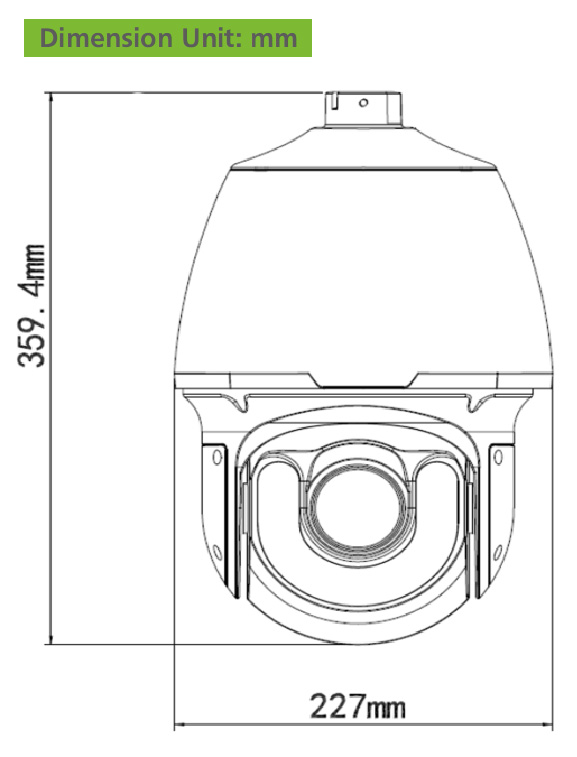

Dimensions

 227x227x359.4 mm

Weight

 5.4Kg

Reset Button

 Supported
