Camera IP EYENOR ENC-HHP5Z-33X-20 | Made in UK

MODEL

Model No.

ENC-HHP5Z-33X-20

Type

2MP Starlight IP H.265 High Speed PTZ Dome Camera

CAMERA

Image sensor

1/2.8” 2Megapixel progressive scan CMOS

Lens

4.5~ 148.5mm, AF automatic focusing and motorized zoom lens

Angle of View (H)

62.67°~2.82°

Shutter Speed

Auto/Manual; shutter time: 1 ~ 1/100000s

Min. Illumination

Colour: 0.001Lux @F1.5
B/W: 0.0001Lux @F1.5

AGC

Auto/Manual

S/N Ratio

>52dB

Day/Night

IR-cut filter with auto switch (ICR)

Iris

Auto/Manual; F1.5 ~ F4.0

WDR

120 dB

DNR

2D/3D DNR

Defog

Digital Defog

VIDEO & AUDIO

Max.Resolution

 1920 x 1080

Video Compression

 H.265+, H.265, H.264,MJPEG

Frame Rate

 Main Stream:2MP (1920×1080):Max. 30 fps; Sub   Stream:2MP (1920×1080):Max. 30 fps;
 Third Stream: D1 (720×576): Max. 30 fps

EIS

Supported

HLC/BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 24 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

 Audio Compression

 G.711U/G.711A

 Two-way Audio

 Supported

SMART

Behaviour Detection

 Intrusion, Crossing line, Motion detection, Auto tracking

Intelligent Identification

 Face detection, Audio detection, Missing Object, Abandoned Object

Statistical Analysis

 People Counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection,General Function RTSP Authentication, User Authentication

NETWORK

 Protocols

 IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G), API

Network

RJ45 10M/100M Base-TX Ethernet

INTERFACE

Audio I/O

1/1

Alarm

2/1

Serial Port

RS485

BNC

Supported

PAN & TILT

Pan Range

360° (endless)

Pan Speed

0.1°/s ~ 400°/s, Preset speed:400°/s

Tilt Range

Tilt Speed

0.1° ~ 240°/s, Preset speed: 240°/s

 No: of Preset

 1024

 Home Position

 Supported

GENERAL

Power

 AC 24V±25%, DC 24V±25%, PoE (IEEE 802.3at)

 Power consumption: MAX 16W

Storage

 Micro SD, up to 256 GB

ANR

 Supported

Working Environment

-30°C ~ +70°C, Humidity ≤ 10%~90% RH(Non-condensing)

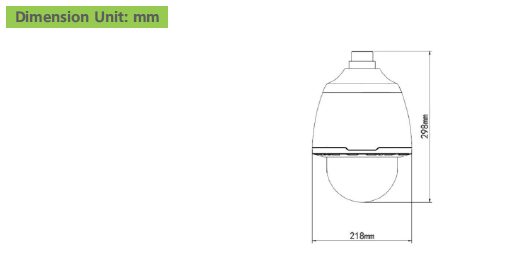

Dimensions

218x218x298mm

Weight

4.2Kg

Ingress Protection

IP66

Vandal Resistant

IK10

Reset Button

Supported
