Camera IP EYENOR ENC-HHP5Z-500L-20 | Made in UK

MODEL

Model No.

ENC-HHP5Z-500L-20

Type

2MP Starlight IP H.265 High Speed PTZ Dome Camera

CAMERA

Image sensor

1/2.8″ Progressive scan, 2 Megapixel, CMOS

Angle of View (H)

62.67°~2.82°

Shutter

Auto/Manual, shutter time: 1 ~ 1/100000s

Minimum Illumination

Colour: 0.002 lux @F1.6,

BW: 0 lux with IR

AGC

Auto/Manual

IR Range

Up to 30M

Laser IR

30 ~ 500m Vari-focal laser, proportional to optical zoom of camera module

Iris

Up to 30MAuto/Manual, F1.6 ~ F5.3

Day/Night

IR-cut filter with auto switch (ICR)

Digital Noise Reduction

2D/3D DNR

S/N

>52dB

Defog

Digital Defog

WDR

120 dB

VIDEO & AUDIO

Max. Resolution

1920 x 1080

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps

Video Streaming

Triple

HLC/BLC/EIS

Supported

OSD

Upto 8 OSDs

Privacy Mask

Up to 24 areas

ROI

Up to 8 areas

Motion Detection

 Up to 4 areas

Two-way Audio

Supported

Audio Compression

G.711U/G.711A

SMART

Behavior Detection

Intrusion, Crossing line, Motion detection, Auto tracking

Intelligent Identification

Face detection,Audio Detection, Defocus, Scene Change, Abandoned object, Missing object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Protocols

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,
SMTP, 802.1x, SNMP, SSL, QoS

Compatibility

ONVIF(Profile S/G), API

 Network

 RJ45 10M/100M Base-TX adaptive Ethernet network interface

PAN & TILT

Pan Range

360°

Pan Speed

0.1°/s ~ 240°/s,Preset speed: 300°/s

Tilt Range

–15° ~ +90° (auto flip)

Tilt Speed

0.1° ~ 160°/s,Preset speed: 240°/s

Number of Presets

1024

Home Position

Supported

INTERFACE

Audio I/O

1/1

Alarm I/O

1/1

Network

1 RJ45 10M/100M Base-TX adaptive Ethernet network interface

GENERAL

Power

AC 24V±25% (default power supply), DC 24V±25%, PoE (PSE Required)

Power consumption: 8 ~ 47W

Working Environment

–40°C ~ +70°C, Humidity £95% RH(Non-condensing)

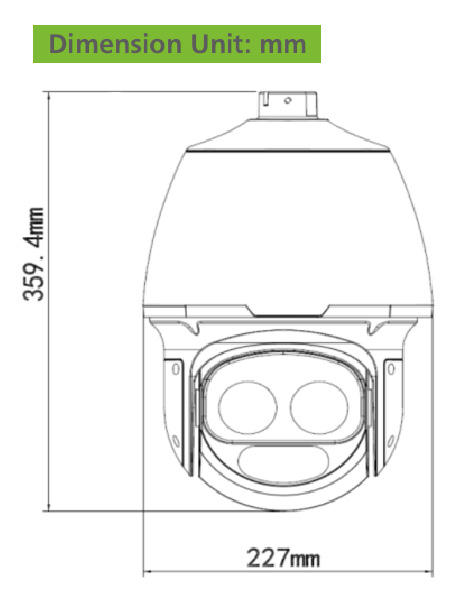

Dimension

227x227x359.4 mm

Storage

Micro SD, Up to 256 GB

Network Storage

ANR

Weight

5.6kg

Ingress Protection

IP66

Reset Button

Supported
