Camera IP EYENOR ENC-HHP5Z-200R-13 | Made in UK
2MP Starlight IP H.265 High Speed PTZ Dome Camera
Overview
Starlight illumination, 33X Optical Zoom, Smart IR, up to 200M, U p to 120 dB WDR, H.265+, H.265, H.264, MJPEG, Embedded smart algorithm, Effective heat dissipation system with Intelligent temperature control, Triple streams, Customized OSD, ONVIF (Profile S/G), IP66
Specification
|
MODEL |
Model No. |
ENC-HHP5Z-200R-13 |
|
Type |
2MP Starlight IP H.265 High Speed PTZ Dome Camera |
|
|
CAMERA
|
Image sensor |
1/2.8” 2Megapixel progressive scan CMOS |
|
Lens |
4.5 ~ 148.5 mm, Automatic focusing and Motorized zoom lens |
|
|
Digital Zoom |
16X |
|
|
Optical Zoom |
33X |
|
|
Angle of View (H) |
62.67° (wide) ~ 2.82° (tele) |
|
|
Iris |
Auto/Manual; F1.6 ~ F5.3 |
|
|
Shutter Speed |
Auto/Manual; shutter time: 1 ~ 1/100000 s |
|
|
Min. Illumination |
Colour: 0.001Lux @ F1.6 |
|
|
AGC |
Auto/Manual |
|
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
|
Digital Noise Reduction |
2D/3D DNR |
|
|
S/N Ratio |
>52dB |
|
|
IR Range |
Up to 200m |
|
|
Defog |
Digital Defog |
|
|
WDR |
120dB |
|
|
VIDEO |
Max. Resolution |
1920 × 1080 |
|
Video Compression |
H.265+, H.265, H.264,MJPEG |
|
|
Frame Rate |
Main Stream: 2MP (1920×1080):Max. 60 fps; Sub Stream: 2MP (1920×1080):Max. 60 fps; Third Stream: D1 (720×576): Max. 60 fps |
|
|
Video Streaming |
Triple |
|
|
HLC & BLC |
Supported |
|
|
EIS |
Supported |
|
|
OSD |
Up to 8 OSDs |
|
|
Privacy Mask |
Up to 24 areas |
|
|
ROI |
Up to 8 areas |
|
|
EIS |
Support |
|
|
Motion Detection |
Up to 4 areas |
|
|
Audio Compression |
G.711U/G.711A |
|
|
Two-way Audio |
Supported |
|
|
SMART |
Behaviour Detection |
Intrusion, cross line, motion detection, Auto tracking |
|
Intelligent Identification |
Face detection, Audio detection, Defocus, Scene change, Abandoned object, Missing object. |
|
|
Statistical Analysis |
People Counting |
|
|
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|
|
NETWORK |
Protocols |
IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, |
|
Compatibility |
ONVIF (Profile S/G), API |
|
|
Network |
RJ45 10M/100M Base-TX Ethernet |
|
|
PAN & TILT |
Pan Range |
360° (endless) |
|
Pan Speed |
0.1°/s ~ 240°/s, Preset speed: 300°/s |
|
|
Tilt Range |
-15° ~ +90° (auto flip) |
|
|
Tilt Speed |
0.1° ~ 160°/s, Preset speed: 240°/s |
|
|
Number of preset |
1024 |
|
|
Home Position |
Supported |
|
|
INTERFACE |
Audio I/O |
1/1 |
|
Alarm I/O |
2/1 |
|
|
Serial Port |
1 RS485 |
|
|
BNC |
Supported |
|
|
GENERAL |
Power |
24 V AC (Default), 24 V DC |
|
Power consumption: 11~47W |
||
|
Storage |
Micro SD, up to 256 GB ANR Support |
|
|
Working Environment |
-40°C ~ +70°C, Humidity ≤ 95% RH(Non-condensing) |
|
|
Ingress Protection |
IP66 |
|
|

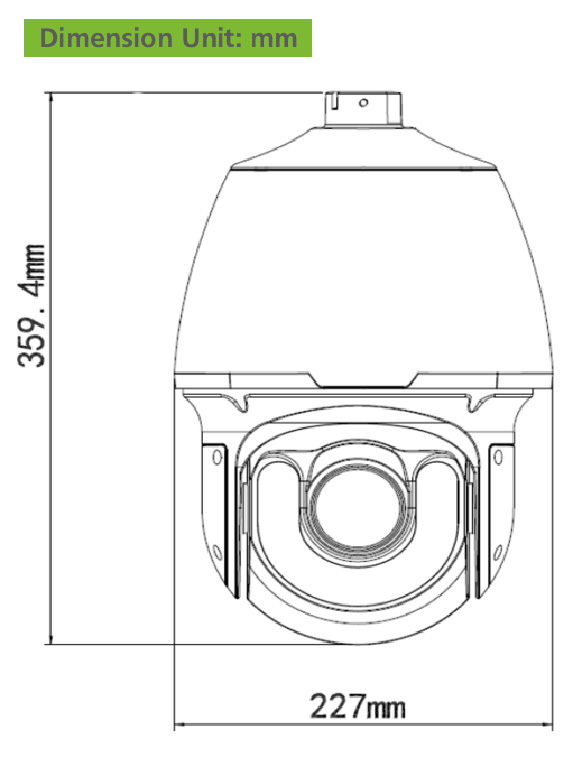

Dimensions |
227x227x359.4 mm |
|
|
Weight |
5.5Kg |
|
|
Reset Button |
Supported |
|
Ordering Information
| Part Number | Description | Standard Quantity |
|
ENC-HHP5Z-200R-13 |
2MP Starlight IP H.265 High Speed PTZ Dome Camera with 33X Optical zoom,Micro SD card slot, WDR, Smart analytics and 200M IR Support |
1 |
Downloads
| Datasheet | 279.17KB | DOWNLOAD |
