Camera IP EYENOR ENC-HHP5Z-250R-13 | Made in UK

MODEL

Model No.

ENC-HHP5Z-250R-13

Type

2MP Starlight IP H.265 High Speed PTZ Dome camera

Image sensor

1/2.8″, Progressive scan, 2.0 Megapixel, CMOS

CAMERA

Lens

5 ~ 220mm, AF automatic focusing and motorized zoom lens

Digital Zoom

16X

Optical Zoom

44X

Angle of View (H)

60.6° ~ 1.8°

Shutter Speed

Auto/Manual, Shutter time: 1 ~ 1/100000s

Minimum Illumination

Colour: 0.001Lux @F1.2
BW: 0Lux with IR

AGC

Auto/Manual

Iris

Auto/Manual; F1.2 ~ F3.5

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

IR Range

Up to 250M

WDR

120dB

VIDEO & AUDIO

 Max. Resolution

 1920×1080

Video Compression

H.265+,H.265, H.264, MJPEG

Frame Rate

Main Stream:2MP (1920×1080):Max. 60 fps;
Sub Stream:2MP (1920×1080):Max. 60 fps;
Third Stream: D1 (720×576): Max. 60 fps

HLC/BLC

Supported

EIS

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 24 areas

 ROI

 Up to 8 areas

Motion Detection

Up to 4 areas

Audio Compression

G.711U/G.711A

Two-way Audio

Supported

SMART

Smart Detection

Intrusion, cross line, motion detection, Auto tracking

Intelligent Identification

Face detection, Audio detection, Defocus, Scene Change, Missing Object, Abandoned Object

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

NETWORK

Protocols

IPv6, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS,
SMTP, 802.1x, SNMP, QoS

Compatibility

ONVIF (Profile S/G), API

Network

RJ45 10M/100M Base-TX Ethernet

INTERFACE

Audio I/O

1/1

Alarm I/O

2/1

Serial Port

1 RS485

BNC

Supported

PAN & TILT

Pan Range

360°(endless)

Pan Speed

0.1°/s ~ 240°/s,Preset speed: 300°/s

Tilt Range

–15° ~ +90° (auto flip)

Tilt Speed

0.1° ~ 160°/s,Preset speed: 240°/s

Number of Presets

1024

Home Position

Supported

GENERAL

Power

AC 24V±25% (Default), DC 24V±25%

Power consumption: 16 ~ 56W

Storage

Micro SD, up to 256 GB

ANR

Supported

Dimensions (mm)

227x227x359.4 mm

Storage

 Micro SD, Up to 256 GB

ANR

Supported

Working Environment

40°C ~ +70°C, Humidity ≤ 95% RH(Non-condensing)

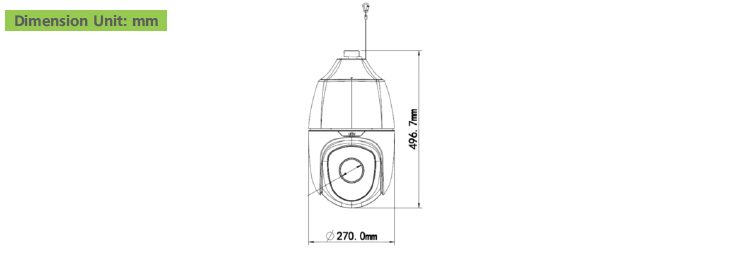

Dimensions

270x270x496.7 mm

Weight

9.69Kg

Ingress Protection

IP66

Heat

Built-in Heater and Temperature control system

Reset Button

Supported
