Camera IP EYENOR ENC-HHP5Z-300R-13 | Made in UK

MODEL

Model No.

 ENC-HPS5Z-300R-13

Type

2MP 60FPS IR IP H.265 Positioning System

Image Sensor

1/2.8″, 2 MP, Progressive scan CMOS

CAMERA

Lens

5~220mm, AF automatic focusing and motorized zoom lens

Angle of View (H)

58.2° ~ 1.5°

Iris

F1.2 ~ F3.5

Shutter Speed

Auto/Manual; shutter time: 1 ~ 1/100000 s

Min. Illumination

Colour: [email protected], B/W: 0 Lux with IR

AGC

Auto/Manual

S/N Ratio

>52dB

WDR

120dB

Digital Zoom

16x

Optical Zoom

44x

Day/Night

IR-cut filter with auto switch (ICR)

Smart IR

 Up to 300M

VIDEO & AUDIO

Max. Resolution

1920 x 1080

Video Compression

H.265+, H.265, H.264, MJPEG

Frame Rate

Main Stream:2MP (1920×1080)@60fps, Sub Stream:2MP(1920×1080)@30fps;
Third Stream:D1(720×576)@30fps

Video Streaming

Triple

HLC/BLC

Supported

Defog

Supported

 OSD

 Up to 8 OSDs

Privacy Mask

Up to 4 areas

 ROI

 Up to 8 areas

 EIS

 Supported

Motion Detection

Up to 4 areas

Audio Compression

G.711U/G.711A

 Two-way Audio

Supported

SMART

Behaviour Detection

Intrusion, crossing line, motion detection,Auto tracking

Exception Detection

Audio detection

Intelligent Idenetification

Defocus, Scene change, Face detection, Abandoned object, Missing object.

Statistical Analysis

People Counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

INTERFACE

 Protocols

IPv6, IPv4, HTTP, HTTPS, SSL/TLS, FTP, SMTP, SNMPV1/V2/V3(MIB-?), DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP,ICMP, DHCP, ARP

Compatibility

 ONVIF (Profile S/G)

Audio I/O

1/1

Alarm I/O

 7/2

Serial Port

1 RS485

Network

10M/100M/1000M Base-TX Ethernet

Video Output

1 BNC

PAN & TILT

Pan Range

 360° (endless)

Pan Speed

 0.1°/s ~ 140°/s

 Preset speed: 140°/s

Tilt Range

-90° ~ +45° (auto flip)

Tilt Speed

0.1° ~ 40°/s

Preset speed: 40°/s

No of Preset

1024

Patrol

Preset patrol, route patrol, recorded patrol

Power Off Memory

Supported

GENERAL

 Power

 48V DC,24 V AC, 24 V DC

 Power consumption: Max 87.8W

Storage

 Micro SD, up to 256 GB (ANR Support)

Working Environment

 -40°C ~ +70°C, Humidity ≤ 95% RH(Non- condensing)

Ingress Protection

 IP66

Reset Button

Supported

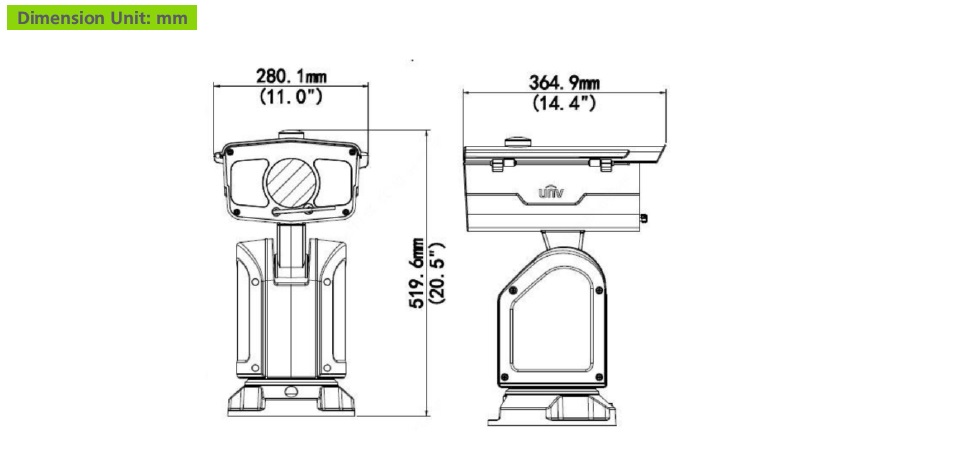

Dimensions

280.1×364.9×519.6mm

Weight

13.98Kg
